| Prod Model: |
L301A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
2.5" |
| Rated Voltage: |
12V |
| Rated Current: |
10mA ~ 150mA |
| Warning: |
80db |
| Detection Distance: |
0.3 ~ 2.5m for Rear |
| Kind: |
Obstacle Detection Radar |
| Operating Temperature Range: |
-20??C~+80??C |
| Working Principle: |
Frequency Modulated Continuous Wave |
| Certification: |
CE |
| Test Distance: |
2.5-0.3m |
Product Description

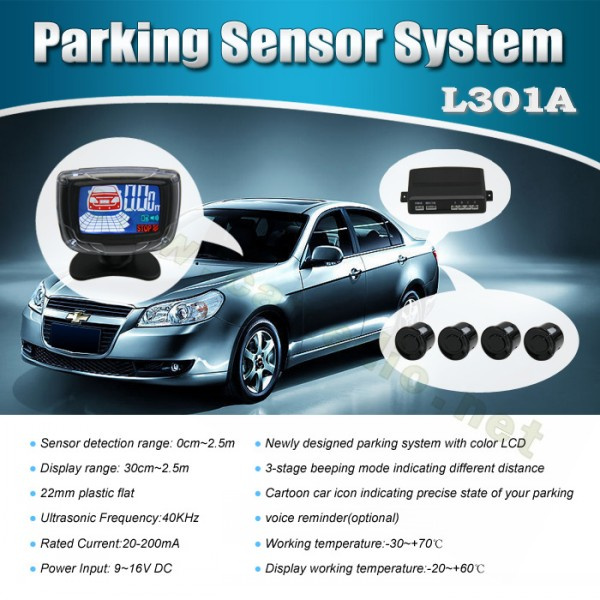

1)LCD parking sensor with 4 sensor
2)colors of sensors optional(black/silver/red...)
3)Human Voice optional
Feature:

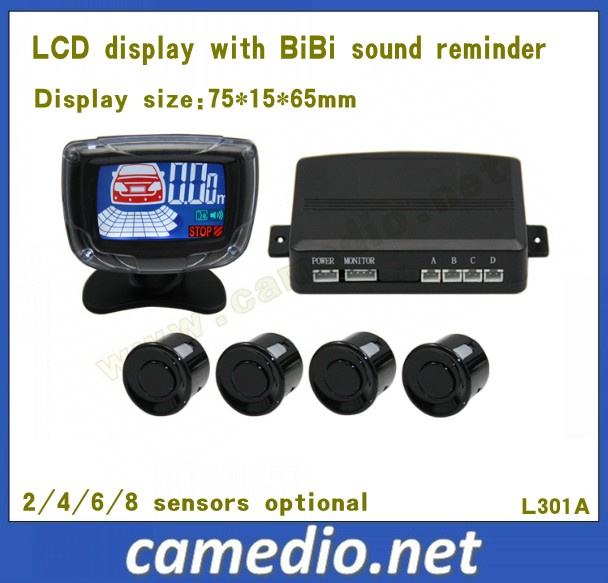

- Digital LCD showing obstacle distance with buzzer built-in
- "BiBi" audible warning buzzer in 3 steps
- Voice alarm (stop.stop.stop), any language is available
- Volume switch control, seven-stage obstruction distance display
- Direction indicator of left behind, middle left behind, middle right behind and right behind
- Detachable sensor with waterproof socket connector (optional)
- Digital meter distance mode, feet display available, 0.01m accuracy
- The stimulative vehicle is displayed in the colorized screen
- 4 rear sensors for full coverage, 2 ~ 8 sensors available for front & rear detecting
- Heavy rain-proof & all weather design
- High quality and easy to install
- All spare parts are compatible
- Different sensors & colors optional (stick-on & insert-in)
Technical Specifications:
- Rated voltage: 12V
- Operating voltage: 10 ~ 28V DC
- Rated current: 10mA ~ 150mA
- Detection distance: 0.3 ~ 2.5m for rear
0.3 ~ 1.2m for front
- Ultrasonic frequency: 40KHz
- Working temperature: -30ºC ~ +80ºC
- Display working temperature: -20 to 60ºC
- Warning: 80dB
- Full-range technical support

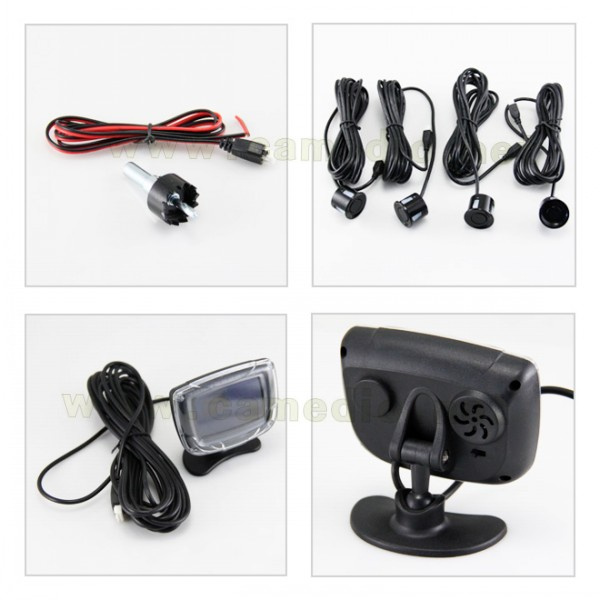

Package includes:
1* LCD display monitor with cable

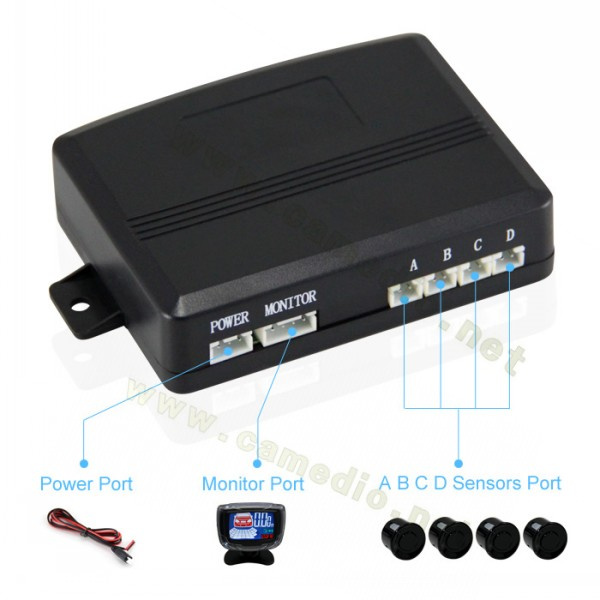

1* Main control box
4* Parking sensor with cable
1* Power cable
1* 22mm drill
2* Double side sticker
1* English user manual
Packaging:
- Color box size: 30.5cm x 22cm x 5cm
- Carton size: 55cm x 46cm x 32cm
- 20pcs / CTN
- Gross weight: 16kgs
Shenzhen Camedio Technology Co., Ltd. is a professtional manufacturer of Car electronical products, which is located in Shenzhen, the center of electronic products in China. Our mainly products include car camera, car monitor, 2.4GHz Wireless system, rear view camera, parking sensor, rear view system etc.
Camedio Tech has been in these business lines for about 5 years and established long business relationship with regular customers from Asia, America, Europe, Middle-east, Africa and other regions. Up to now, Our company has been dedicated to the development, design and production of a wide rang of standard and customized car electronics.
We are always trying our best to benefit our customers and to provide our customers with quality products and best service, we have professional teams of designing, production and QC. Many of them are skillful and experienced engineers. We have the competitive price based on high quality and with an excellent after sales service and a series of warranty service to benefit our customers, all those make us won good reputation and respect in the domestic and oversea markets.
"Quality, Reputation and Service come First" is the key to Camedio success. The trust of customer at home and abroad has been gained for the reliable performance and smart design of the product of company.
Welcome for your valuable inquiry and visiting our company at any time!
