| Prod Model: |
WL705&328 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
7" |
| Video Inputs: |
2 |
| TV System: |
PAL/NTSC |
| Camera Type: |
480 TV Lines CMOS |
| Parking Sensor Type: |
Video /Working with Camera&Monitor |
| Sample: |
Available |
| Warranty: |
13 Months |
| Kind: |
Obstacle Detection Radar |
| Operating Temperature Range: |
-20??C~+80??C |
| Working Principle: |
Frequency Modulated Continuous Wave |
| Certification: |
CE |
| Test Distance: |
2.5-0.3m |
Product Description

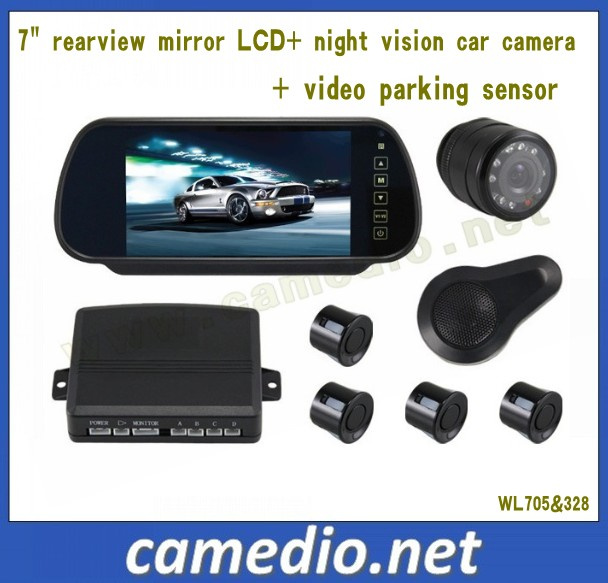

7inch radar rear view system
1. 7" rearview mirror monitor, 3.5&4.3" available
2. Rear view camera with IR
3. Automatic start when back upSpecification for video parking sensor:
- One control box, external connection
- Two video input, one video output
- One video is straight connection
- Clip on original mirror
- 4-stage simulate obstruction distance display
- Another video is added with distance data
- "BiBi" audible warning buzzer in 3 steps
- Detachable sensor with waterproof socket connector (optional)
- Digital meter distance mode, feet display available
- Directional indicator of left and right
- 4 rear sensors for full coverage, 2 ~ 8 sensors available for front & rear detecting
- Heavy rain-proof & all weather design
- High quality and easy to install
- All spare parts are compatible
- Different sensors & colors optional (stick-on & insert-in)
Feature for monitor :
7"TFT LCD Rearview mirror monitor
Hannstar Guard A new panel
Resolution:480*RGB*234 / 800*RGB*480 optional
Display ratio:16:9 /4:3
Brightness:300cd/m2
English OSD menu (brightness/contrast/color/display ratio)
System: PAL/NTSC
Power Supply: DC 12V
Power:less than 7W
2 video input&1 audio output (RCA connector) ,
Can connect with Rearview camera /Automatic switch when reverse car
Remote control &Touch key
Blue screen when no signal /Power off monitor as normal mirror
Easy to install:Clip on car original mirror
Camera:
- 1/4 waterproof CMD color camera,
-170 degrees viewing angle
- PAL/NTSC color system
- 2 RCA video input
- Resolution: 480TV lines CMOS
