| Prod Model: |
RLPV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
as Your Demand |
| Application: |
Wine Cooler Parts |
| Parts: |
Aluminum Foil Heating Element |

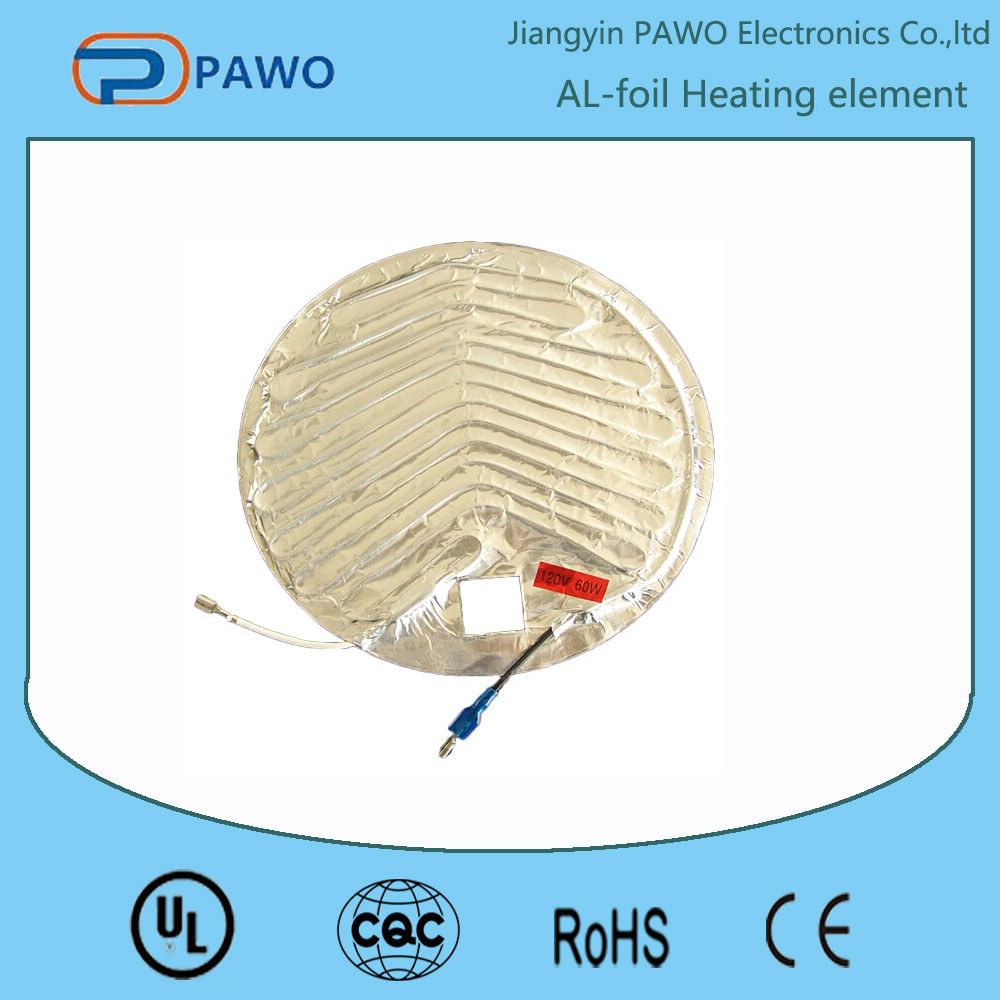

Product Description
Features:
1) Type: RLPV1, RLPV2
2) Aluminum foil heater has large area, quantity of heat is well-proportioned And is convenient to use. It is widely used to the auxiliary heating, defrost, Thawing for refrigerator and freezer as well as other electrical equipment.
Aluminum foil heater has adhesive backing as standard for quick and easy Fixing to the area requiring temperature maintenance
3) RLPV1: Heater wire is hot pressed on the aluminum foil
4) RLPV2: Heater wire is placed between two aluminum foil adhesive tape
5) Insulation: 105° C PVC
6) Dimension: As per requests
7) Tolerance on the output: ± 5%
8) Dielectric strength: 1, 800V 2S or as per requests
| RLPV | RLPG |
| Electrical insulation | 105cPVC | Silicon rubber |
| Dimension | Any dimension on request |
| Voltage | Any voltage on request |
| Output | Up to 2.5KW/m2 |
| Tolerances | ≤±5% on resistance |
| Insulation resistance in normal temperature | ≥100 MΩ |
| Dielectric strength in normal temperature | 1800V 2S, No flashover and break down |
| Leakage current in working temperature | ≤0.02 mA/m |
| Connect strength | Heater wire and lead wire | ≥36N 1min |
| Lead wire and terminal | ≥58.8N 1min |
| Heater and Al-foil | 400g/ 1min |
Contact us
Jianna Sun
Sales Manager
Jiangyin PaWo Electronics Co., Ltd.
Add: No.98 Qingtong Road, Qingyang Town,
Jiangyin City, Jiangsu Province, China
homepage:http://www.heatingcablechina.com
Tel: 86-510-86102868
Fax: 86-510-86551425
Mobile phone:18861614912
Jiangyin Pawo Electronics Co., Ltd. is specializing in supplying heating cable etc.
The supple electric heating element made by our company not only conforms to the strict quality requirement in the position of technology but also keeps a closed cooperative partner relationship with different departments and clients. Since the year of 1999, Pawo has got the ISO9001 certificate and also updates each nation's certificates and product qualification accreditations in every year.
Each day, our engineers and technicians will discuss and research to improve the quality of the product to confront the severe product needs. Our production facility, professional skill of the manufacturing process and the abundant marketing knowledge enable us to provide integrated products which meet to the specific needs of the customer.
Upholding the principle of quality first and user first and propagating the tenet of meticulosity and seeking perfect from perfect, we insist on ceaselessly pursuing consummations to realize a better aim. We will try our best to update and enrich the product range to satisfy your various needs. Through the wide internet agent, dealer and assemble trader, we will build Pawo into a world-class resource platform, a forever reliable defrosting and heat preservation system product in all areas and also an eternal hand-joining friend with the customers in all walks of life.
