| Prod Model: |
RLPV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suggested Use: |
Refrigerator Defrost Heater |
| Electrical Insulation: |
PVC or Silicon Rubber |
| Dimension: |
Any Dimension on Request |
| Voltage: |
Any Voltage on Request |
| Output Power: |
up to 2.5kw/M2 |
| Tolerances: |
≤±5% |
| Surface Temperature: |
-30c~110c |
| Model Number: |
Rlpv |
| Free Samples: |
Available |
| Customized/OEM: |
Available |
| Application: |
Wine Cooler Parts |
| Parts: |
Aluminum Foil Heating Element |
Product Description
Configuration

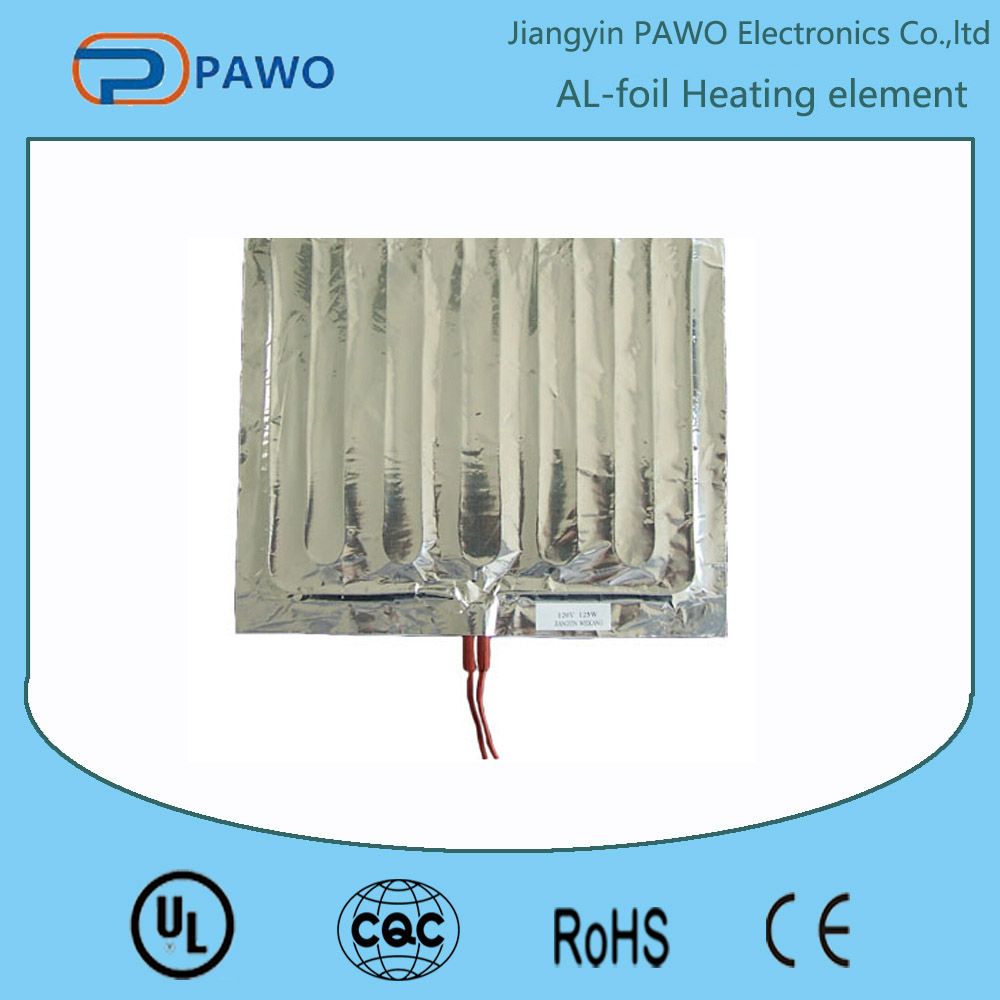

The heating element can be either high temperature PVC or silicone insulated heating cable.This cable is placed between two aluminum sheets.The aluminum foil element has adhesive backing as standard for quick and easy fixing to the area requiring temperature maintenance.Cut outs in the materical are possible,allowing for perfect fitting to the part on which the element will be mounted.
Note:
Temperature control can be attached;
Cut out the hole in aluminum foil;
Earthing of the aluminum foil.
Applications
Defrost or freeze protection of refrigerator or ice box
Freeze protection of plate heat exchangers
Temperature maintenance of heated food counters in canteens
Anti-condensation of electronic or electric control boxes
Hermetic compressors heating
Anti-condensation of bathrooms mirrors
Anti-condensation of refrigerated display cabinets
Domestic appliances,medical...
Features:
1) Type: RLPV1, RLPV2
2) Aluminum foil heater has large area, quantity of heat is well-proportioned
and is convenient to use. It is widely used to the auxiliary heating, defrost,
thawing for refrigerator and freezer as well as other electrical equipment.
Aluminum foil heater has adhesive backing as standard for quick and easy
fixing to the area requiring temperature maintenance
3) RLPV1: heater wire is hot pressed on the aluminum foil
4) RLPV2: heater wire is placed between two aluminum foil adhesive tape
5) Insulation: 105°C PVC
6) Dimension: as per requests
7) Tolerance on the output: ±5%
8) Dielectric strength: 1,800V 2S or as per requests
| RLPV | RLPG |
| Electrical insulation | 105cPVC | Silicon rubber |
| Dimension | Any dimension on request |
| Voltage | Any voltage on request |
| Output | Up to 2.5KW/m2 |
| Tolerances | ≤±5% on resistance |
| Insulation resistance in normal temperature | ≥100 MΩ |
| Dielectric strength in normal temperature | 1800V 2S, No flashover and break down |
| Leakage current in working temperature | ≤0.02 mA/m |
| Connect strength | Heater wire and lead wire | ≥36N 1min |
| Lead wire and terminal | ≥58.8N 1min |
| Heater and Al-foil | 400g/ 1min |
Packing : one in plastic bag +tewenty in carton or customized.
Shipping: FOB SHANGHAI / NINGBO /OTHER PORTS
Our Company

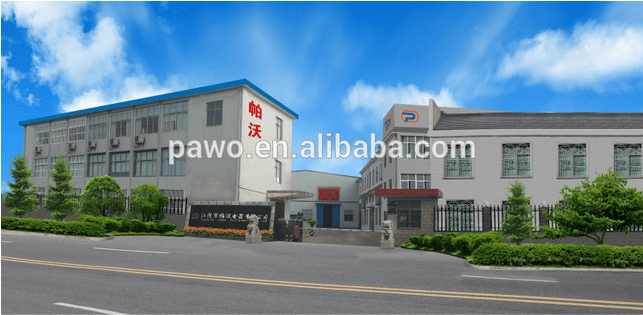

We Jiangyin PAWO Electronics Co.,ltd has been established for more than twenty years. we specialized in the production of electronics heater. and we are responsible for our products and customers.We have specialized in the design and production of defrosting and temperature maintenance.We are the global market to provide heating element of high-quality,meet the various needs of different application fields.
Main customers
FAQ
Q: Are you a trading company or manufacturer?
A: Yes, we are a manufacturer with factory.
Q: Do you accept OEM service?
A: Yes, please offer your required specifications and drawing.
Q: What's your delivery terms?
A: (1) FOB (2) CFR (3) CIF.
Q: What's your Delivery Time?
A: Normally within 15 days,please confirm with us before order!
Q: What's the Payment Terms?
A: Usually,30% as deposit,70% before shipment by T/T,L/C,D/A,D/P.
Q: How you pack products?
A: Plastic bag inside and exporting carton outside, or according to customers.
Q: What's your available port of Shipment?
A: Shanghai,Ningbo or other ports according to customers' requirement.
