| Prod Model: |
P3 Die Cast Alminum lndoor Rental LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
192*192 |
| Cabinet Size: |
576*576 |
| Cabinet Material: |
Aluminum |
| Packing Manner: |
Wooden Case/Flight Case |
| Brightness: |
More Than 1500 CD /Sqm |
| The Way Of Fix Installation: |
Rental |
| Warranty: |
Two Years |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Certification: |
CCC |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| System Operating Platform: |
WIN XP |
| Pixel Pitch: |
3mm |
| Pixel Density: |
111,111 DOT /Sqm |
Product Description

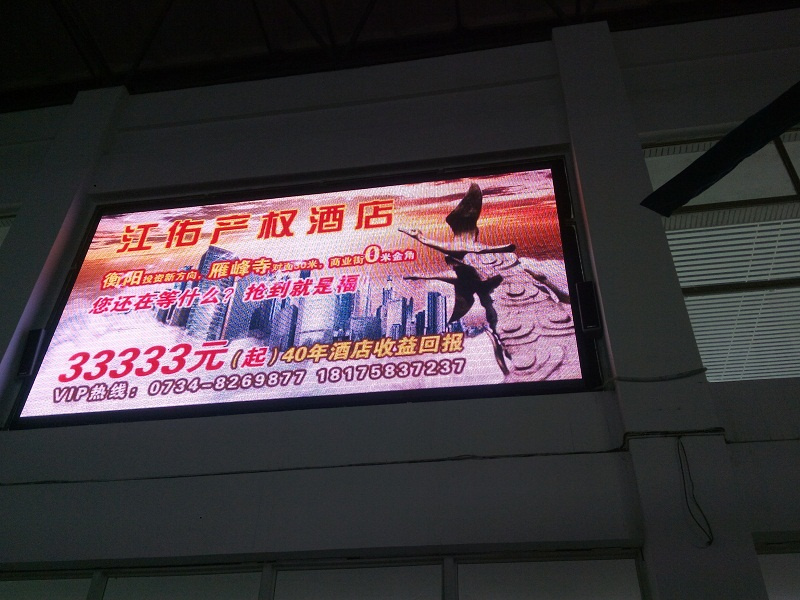

Die Cast Aluminum Indoor Rental Full Color LED Display application:
For rental : party,wedding,entertainment etc;
For advertisement:station,airport,bank,culture square,club,hotel,shopping guide,wharf,etc;
For life broadcast:education,hospital,concert,stadium,sport match,gym etc.
Export Markets: South America,North America,Africa,Mid East,Southeast Asia,Eastern Asia,Oceania,Western Europe etc.
Die Cast Aluminum Indoor Rental Full Color LED Display Series:
| Item | Indoor Die-casting LED display fancy series |
| Pixel Pitch(mm) | 3mm | 4mm | 5mm | 6mm |
| Pixel density(pix/m2) | 111111 | 62500 | 40000 | 27777 |
| LED Type | 2020 | 2020 | 3528 | 3528 |
| Viewing Angle | H:140°,V:140°
|
| Color Depth(nits) | 1500 |
| Drive Method | 1/16 |
| Color Depth | 16384 |
| Refresh Rate(Hz) | 1600 |
| Module Size(mm) | 192X192x13 | 256X128x13 | 320X160x13 | 192X192x13 |
| Cabinet Size(mm) | 576X576X80 | 512X512X80 | 640X640X80 | 576 x576 x80 |
| Cabinet Material | Die cast Aluminum |
| Cabinet weight(kg) | 9 | 8.5 | 12.5 | 9 |
| Voltage | 110/220V |
| Average.power(W/m2) | 160 | 130 | 120 | 120 |
| Max.power(W/m2) | 800 | 380 | 350 | 350 |
Indoor LED Display Features:
1. Light weight
2. Large viewing angle
3. Long lifespan
4. High brightness
5. Silent operation
6. Standard panel design
7. Stable performance
8. Wide applicability
9. High protection grade
Noveled services for customers:
1. We can recommend and design solution for customers to reduce the risk of investing
2. We accept customers supervise the process of production
3. We also provide necessary training
4. We have good after-sale-service too,Noveled takes great responsibility to collect customers' feedback,inspection and maintains products periodically to ensure solve problems timely.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
