| Prod Model: |
RGB |
| Markets: |
North America,South America,Southeast Asia |
| Dimension: |
as Your Demand |
| Product Application: |
Refrigeration Parts, Refrigerator / Freezer/Micro |
| Type: |
RGB1, RGB2, RGB3, RGB4 |
| Certification: |
RoHS, UL |
| Geometric Shape: |
According with The Drawing |
| Voltage: |
Any Voltage on Request |
| Output: |
up to 300W/600W |
| Tolerances: |
Less Than 5% on Resistance |
| Withstand Break Strength Of Glass Tube: |
More Than 49n/150mm |
| Key Wards: |
Deforst Window Heater |
| Application: |
Wine Cooler Parts |
Product Description

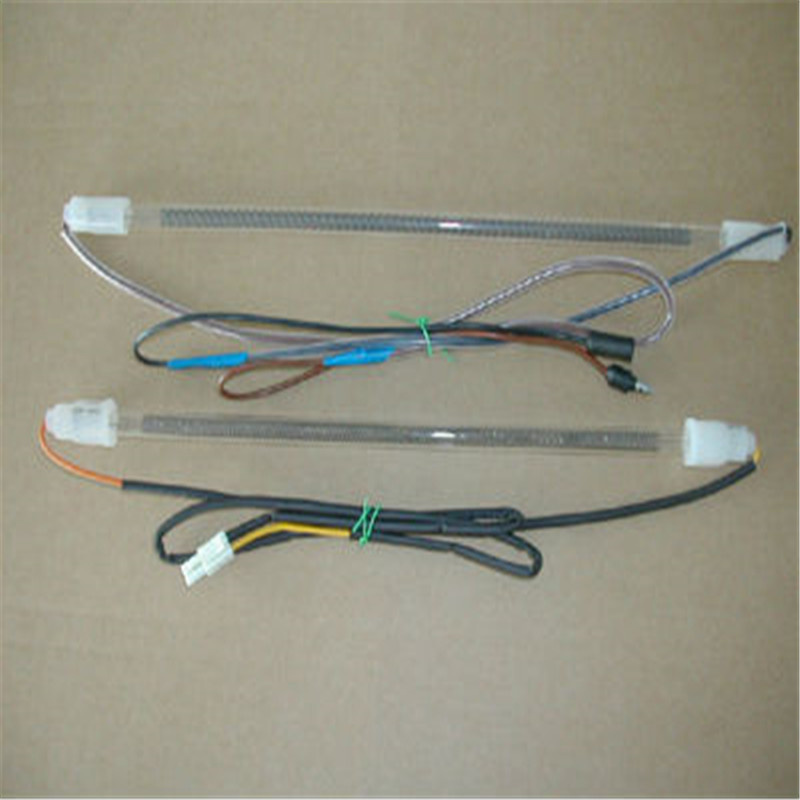

Defrost heating element for glass tuber heater/refrigerator heater
Configuration
It is coiled as spring strip used resistance wire, inset it into glass tube, the both sides of glass tube are made of heat resistant material, connect lead wire to resistance wire in the head
Applications
1) mainly used in refrigeration and microwave ovens.
2)Catalysis deodorizing glass tube heater attached peculiar smell will be catalyzed and oxidized to carbon dioxide and water, therefore, get the effect of deodorization.
Type
--RGB1:transparent glass tube
--RGB2:two-double vacuum glass tube
--RGB3:two-double transparent glass tube
The above are small power ones for defrosting in refrigerator.
With the power range 10w-300w,they are airproofed on the ends with rubber.
--RGB4:barbecuing tube
The heater is cooking heat source in the microwave oven.Generally 2 pcs as one suite in series and the power of single tube is 400w-600w.Bigger surface load and higher radiating coefficient make the microwave cooking food more quickly.
Technical data
| |
RGB1, RGB2, RGB3, | RGB4 |
| Dimension & Geometric Shape | According with the drawing |
| Output | Up to 300W | Up to 600W |
| Voltage | Voltage on request |
| Tolerance onresistance | ≤±5% |
| Insulation resistance in normal temperature | ≥100MΩ |
| Withstand break strength of glass tube | ≥49N/150mm |
Shipping: FOB SHANGHAI / NINGBO /OTHER PORTS
