| Prod Model: |
PL24-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charge Current: |
40A |
| Continuous Discharge Current: |
100A |
| Peak Current: |
200A |
| Charge Cut-off Voltage: |
29.2V |
| Discharge Cut-off Voltage: |
20V |
| Charge Method: |
Cc/CV |
| Cycle Life: |
2000 Cycles |
| OEM: |
Available |
| Warranty: |
24 Months |
| Connection Mode: |
Series and Parallel |
| Type: |
LiFePO4 |
| Rated Capacity: |
200ah |
| Standard Voltage: |
24V |
| Usage: |
UPS Battery, Solar Systems, Wind Systems, etc. |
Product Description

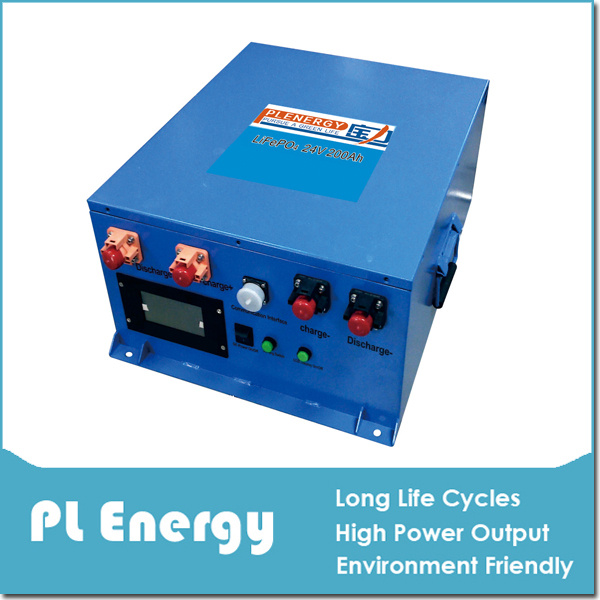

Deep Cycle Solar Power Storage 24V 200Ah Lithium Batteries
BRIEF INTRODUCTION
PL ENERGY lithium battery is new environment friendly backup power system focuses on short-time and high-rate discharge scenarios.
The environment friendly lithium battery configured with high-performance BMS, has wide range of performance and application advantages when compared with conventional batteries.
The leading chemical technology, BMS technology and system design capabilities will bring excellent performance and reliability, as well as provide the best solutions for industrial applications.
ADVANTAGES
- It is high integrated with less installation space;
- High-performance cathode material of lithium iron phosphate makes it has excellent cell consistency and long cycle life;
- The battery has excellent performance in lowtemperature;
- Multiple protection functions, battery has high voltage protection with higher reliability;
- Modular and quick plug design makes it easy to use and maintenance.
KEY FEATURES
- It is small size with light weight;
- It without heavy metals and environment friendly;
- There is no memory effect;
- More than 3000 times cycle life;
- Maintenance free;
- It can afford high-rate discharge of 1C;
- Internal BMS with full protection.
DETAIL SPECIFICATIONS
| Battery Model | PL24-200 |
| Rated capacity | 200Ah |
| Rated voltage | 25.6V |
| Cell Specification | 3.2V 5Ah |
| Cell Combination | 8S40P |
| Cell Size | 32650 |
| Cell Quantity (parallel*series) | 320pcs |
| Charge Voltage (V) | 29.2V |
| Charge Cutoff Voltage (V) | 20V |
| Charge Current (A) | 40A |
| Continuous Discharge Current (A) | 100A |
| Peak Discharge Current (A) | 200A |
| Charge Mode | CC/CV |
| Charge Temperature Range | 0°C~45°C |
| Discharge Temperature Range | -20°C~60°C |
| Battery Pack Dimension | 550*427*240 mm |
| Battery Weight | 55kg |
| Cycle life | 2000 cycles |
| Connector | can be customized |
| Warranty | 24 months |
UNIQUE BATTERY STRUCTURE
1. System self-check
2. Monitor total system voltage and the voltage of each cell in real time
3. Insulation test and high voltage alarm
4. Temperature of cell and ambient temperature test
5. Monitor system current
6. Record charge and discharge times
7. Estimating SOC (state of charge)
8. Monitor SOH (state of health)
9. Battery fault alarm
10. Calculating residual capacity of battery
11. Can adjust the voltage , current , SOC limit alarm parameters flexibly
12. Realize alarm and protection function by interface
13. Communication port:RS-232 or/and RS-485 or/and CAN bus
14. Balance function
15. Parameters can be set by PC software as your requirements
16. Wireless transmission
17. Data storage
18. GPRS
APPLICATIONS
1) Electric Vehicles
- Engine Starting Battery
- Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.
- Intellectual Robots
- Power tools: Electric drills, toys
2) Energy Storage
- Solar-Wind Power System
- City Grid (On/Off)
- Community and Family
3) Back-up System & UPS
- Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
4) Other Applications
- Security and Electronics, Mobile POS, Mining Lihgt, Torch, LED Light, Emergency Light
BENEFITS OF USING LIFEPO4 BATTERIES:
- Safe Technology: Will not catch fire or explode if damaged.
- Half the weight of an equivalent capacity lead acid battery.
- Over 2000 deep discharge cycles vs. 300 for lead acid battery.
- Double the usable capacity of lead acid batteries.
- Virtually flat discharge curve means no "voltage sag".
- High discharge & recharge rate capability.
- They can be left partially charged for long periods of time.
- Extremely low self discharge rate unlike lead acid batteries.
- Does not suffer from thermal runaway like Li-Ion or Li-Po
- Can be safely used with no loss in performance up to 140F.
- Absolutely maintenance free for the life of the battery.
- Does not contain any toxic heavy metals like lead & cadmium.
- The most eco friendly battery chemistry available.
WHY CHOOSE US?
· High capacity, high discharge rate, long lifespan qualied battery products
· A professional sales team which provide consultant service and the most competitive battery solutions.
· OEM and ODM designs and lables are welcome.
· Small Order is available.
· Wide-range battery products to satisfy different customer's requirement.
· Quick response, every inquiry will be replied within 24 hours.
· Good after-sale service, long product warranty and continual technique support.
WHAT WE CAN DO?
- Battery Pack Design
PL energy will design the scientifical, economical and applicable lithium battery pack according to clients' application and their detail requirements about charging current, discharge current, battery operation environment, battery dimensions and so on.
- Battery Cell Production
PL Energy has integrated cylindrical, prismatic and lithium polymer battery cell production, so, we can flexibly using different battery cells to meet clients' requirements.
- Battery Pack Production
PL Energy do not only provide lithium battery for energy storage, but has wide range of applications as below.
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, Cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
- Energy Storage System integration
PL Energy ESS has integrated battery cell / module, BMS, inverter, charge controller in to one cabinet. Meanwhile, PL Energy also provide ESS + Solar system integration, and can provide turnkey solution.
