| Prod Model: |
PL201030R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Capacity: |
43mAh |
| Weight: |
0.8g |
| Normal Charge Rate: |
0.2c |
| Normal Discharge Rate: |
0.5c~1c |
| Charge Cut-off Voltage: |
4.2V |
| Discharge Cut-off Voltage: |
2V |
| Charge Method: |
Cc/CV |
| Cycle Life: |
>500 Times |
| Customize: |
Acceptable |
| Warranty: |
2 Years |
| Type: |
Lithium-Ion Batteries |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Flat Battery |
| Usage: |
Wearable Devices |
| Nominal Voltage: |
3.7V |
Product Description

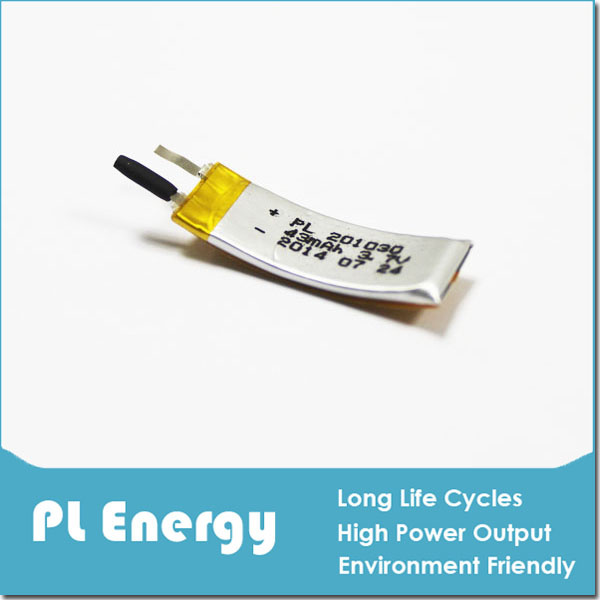

3.7V 43mAh Bluetooth Smart Bracelet Lithium polymer Battery
Lithium Polymer Batteries are made hot for Bluetooth headset, intelligent wearable devices and more
PL energy can customize the size, shape, capacity at clients requirement and it is one of our hit products. Bendable, rechargeable, thin, tiny, light and with long shelf life
Features
? High energy density(540WH/L), capacity is 10%~30% higher than the present battery industrial
? Daily production capacity is up to 100K backup with automatic machines and effective engineering team
? High safety, specially designed for wearable devices
? 4C fast charging current for your solution
? To guarantee the long terms stability, Both anode and cathode blades are specially made for higher tenacity, and bent at 5 levels in different temperature
| Nominal Capacity @ 0.2C | 43mAh |
| Nominal Voltage | 3.7V |
| Discharge Cut-off Voltage | 3.0 V |
| Charge Cut-off Voltage | 4.2V |
| Charge Current | 0.2C |
| Max. Continuous Discharge Current | 0.5-1C |
| Peak Discharge (max. 10 sec. duration) | 3C |
| Cycle Life (1C/1C 100% DOD) | >1000 cycles |
| Thickness ( mm) | 2.0 |
| width ( mm) | 10 |
| Length (mm) | 20 |
| Weight (g) | <10g |
| Charge Temperature Range | 0ºC~45ºC |
| Discharge Temperature Range | -20ºC~60ºC |
| Charge Method | CC/CV |
