| Prod Model: |
DCS-3021 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Voting |
| Simultaneous Interpretation: |
Yes |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Brand Name: |
Gonsin |
| Installing: |
Wireless |
| Technology: |
2.4GHz Frequency Hopping |
| System Capacity: |
Support up to 500 Devices |
| Camera Tracking: |
Supported |
| Priority Function: |
for President Mic |
| Battery: |
Rechargeable |
| Video: |
Video |
| Communication: |
Wireless |
| Pointing Feature: |
Omni-Directional |
| Color: |
Silver |
| Type: |
Conference System |
| Composition: |
Wireless Microphone |
Product Description

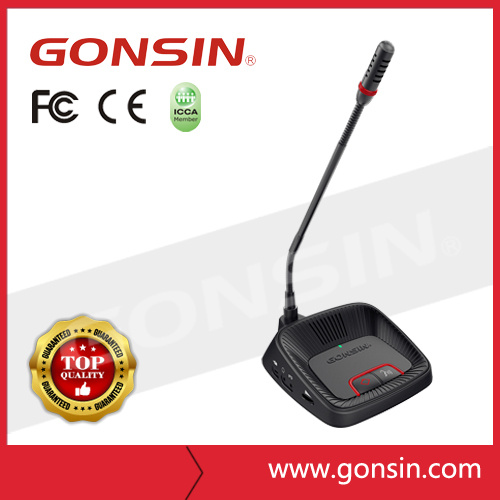

DCS-3021 wireless conference microphone offers convenient wireless conference solution, saving cabling, and suitable for all kinds of events.
Basic function:**2.4GHz frequency-hopping spread spectrum technology allows the server to auto-detect available 2.4GHz RF; when working with supporting software, the server adopts reliable hopping mechanism to avoid co-channel interference;
**Digital audio lossless compression technology improves wireless carrier utilization rate, and avoids interference if multiply systems are used within the same building;
** Support 8 x 1 SD/ 8 x 8 HD automatic camera tracking;
**AUTO and FIFO microphone modes;
**Max. four microphones can be activated at the same time (1 chairman mic and 1/2/3 delegate mic);
**Volume/tone adjustable;
**ID number writing available, to facilitate mic management;
**Mic can be shut down via server.
Basic Functions
2.4 GHz frequency- hopping spread spectrum technology allows the server to auto-detectavailable 2.4GHz RF; when working with supporting software, the server adopts a reliablehopping mechanism to avoid co-channel interference;
Digital audio lossless compression technology improves wireless carrier utilization rate,
and avoids interference if multiple systems are used within the same building;
Support 8×1 SD /8×8 HD automatic camera tracking;
AUTO and FIFO microphone modes;
Max four microphones can be activated at the same time (1 chairman terminal and 1/2/3 delegate terminals);
Volume/tone adjustable;
ID number writing available, to facilitate terminal management;
Terminals can be shut down via server.

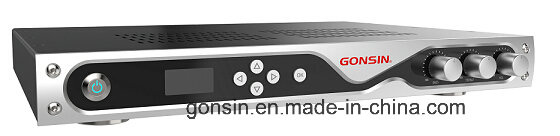

Technical Indicators
Capacity | 500 terminals |
Effective communication distance | 30 m |
Frequency response | 60Hz~15KHz |
Signal to noise ratio | ≥75 dB (A-weighting) |
Distortion | ≤ 0.5% (total harmonic distortion: 50Hz~8KHz) |
Max. audio output | LINE OUT: +20dBu |
Interfaces | eight-pin socket x 1 (for connecting to WAP device) balanced audio output (XLR connector) x 1 non-balanced audio output (RCA connector) x 2 RJ-45 interface x 1 (for connecting to PC) RS-232 interface x 1(for controlling camera tracking video matrix) |
Power supply | AC110/220V±10%, 50~60Hz |
Enclosure | 19-inch standard cabinet |
Dimensions | 1U (340mm×420mm×45mm) |
Weight | 4 kg |
Working temperature | 0~45°C |
Storage temperature | -20~50°C |

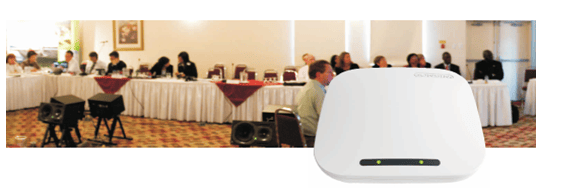

WAP-30 Wireless Access Point
Main Features
2.4 GHz frequency- hopping spread spectrum;
Strong signals to ensure communication;
No interference if multiple systems are used at the same time.
Basic Functions
Indicators to show working status;
Power is supplied via the server;
In support of wall mounting, rack installation, ceiling mounting, etc.
Technical Indicators
Communication means | 2.4 GHz frequency- hopping spread spectrum |
Interfaces | Eight-pin interface x 1 (for connecting to the server) Six-pin interface x 1 ( for cascading interpretation system WAP) |
Power supply | DC24V |
Wireless signal coverage | 30 m |
Dimensions | 260mm×260mm×68mm |
Weight | 1.2 kg |
Working temperature | 0~45°C |
Storage temperature | -20~50°C |
