Dcs-1021 Wireless Congress System
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TL-VCB6000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD: |
White-on-Blue Backlit |
| Superior Sound Quality: |
Yes |
| Housing Colour Scheme: |
Black |
| Attendance Registration: |
Expanded Function by iPad |
| Voting And Election: |
Expanded Function by iPad |
| Red Mic Ring Luminant: |
Yes |
| Camera Trackinig: |
Supported |
| Recording: |
Supported |
| Conference Software Management: |
Supported |
| Mic Stem Strength: |
Standard:41cm |
| Type: |
Voice Conferencing System |
| Video: |
Video |
| Communication: |
Wireless |
| Pointing Feature: |
Omni-Directional |
| Color: |
Black |
| Composition: |
Microphone |
Product Description

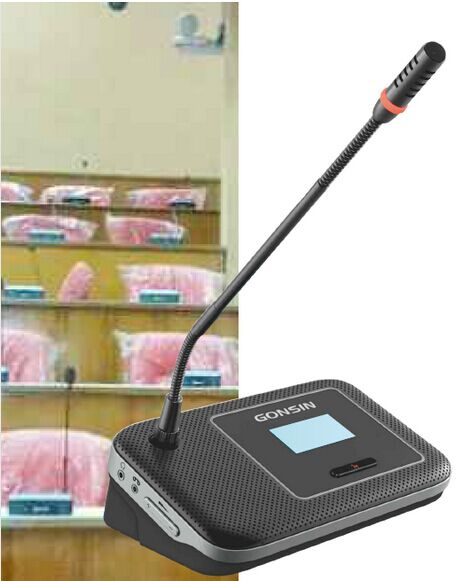

DCS-1021 Wireless Congress System
Main Features
Support 2.4 G / 5.8G dual-band communication to ensure system stability;
Microphone sensitivity can be adjusted from level 0 to 4;
With offline 8 in 1 out SD video tracking matrix, HD camera is supported;
Terminals can be uniformly shutdown by server after the conference;
With timing function, when the timing ends, the server can be used after reauthorization;
System capacity can be up to 450 units of terminals;
CD-quality sound;
Multiple systems work simultaneously under same environment without disturbing each other.
wireless congress terminal
Features
Support 2.4 G/ 5.8G dual-band communication;
CD-quality sound;
Terminal battery duration (speaking state ≥ 14 hours;
Highly resistant to mobile phone interference
Pluggable MIC stem;
Metal material, high texture;
Microphone sensitivity can be adjusted from level 0 to 4.
Congress serverFeatures The congress server platform is based on Linux operating system, applicable for any large convention center requiring strict working conditions; Fully digital technology for audio signal processing and transmission, which complies with the IEC 60914 international standards for conference systems; High performance DSP solution optimized for digital audio processing; Unified Server Shutdown function.Functions Each server has a globally unique ID number ,which is easy for installation and orderly management; Supports 8 x 1 SD / 8 x 8 HD automatic camera tracking function; Two microphone modes: AUTO / FIFO; Up to 4 microphones can be active simultaneously (1 chairman terminal +1/2/3 delegate terminal); The server comes with an LCD panel and navigation buttons, which are for all function setup operation; Terminal ID number can be wrote through the server, more convenient for device management; Unified terminals shutdown function hens effectively reduce the work; Sound pickup sensitivity of the terminals can be adjusted individually or collectively via the server; Technical SpecificationsCapacity Single wireless AP.150Terminals; can be extended to 450 terminals with extra wireless APFrequency response 30Hz~20KHzSignal to noise ratio ≥75dBDistortion Degree ≤0.5%(50HZ~8KHZ)System stability Communication distance 30mLCD panel 128×64 dot matrixMain supply AC110~220V± 10%50~60HzAudio Output +20dBuPorts 1×8pin(to connect interpreter console) 2×audio output 1×RJ-45(to connect a wireless AP/PC) 1×RS-232(to connect camera tracking switcher) 1×RS-485(to connect camera)Mounting 19*standard cabinetDimensions(W×H×D) 485mm×90mm×325mmWeignt 7.2kgOperating temperature 0~45°CStorage temperature -20~50°CCharging CabinetFeatures
Real time management of battery and charging current
Green/Red LED indicator lights for charging status
Charging contacts are designed to prevent wrong-way Insertion
Functions
Real time management of battery and charging current,extending battery lifetime ;
With an independent modular design for the charging circuit, the battery can detect automatic;without inserting the batteries, charging module will not work ;
Smart charger for 10 Li-ion battery packs,with 6-hour charging time ;
Green/Red LED indicator lights for charging status.
Technical Specifications
Main supply AC100~240V , 50~60Hz
Power 150W
Charging time 6 hours
Weight 6.7Kg(net weight)/8.7Kg(ful load)
Dimensions 415×344×87mm
Operating temperature 0~45°C
Storage temperature -20~50°C
