| Prod Model: |
Driverack PA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
2 in 6 out |
| Frequency Response: |
20Hz-20kHz |
| Voltage: |
100-120VAC/ 220-240 VAC |
| Power Requirements: |
25watts |
| Connector: |
3 Pin XLR |
| Operation Mode: |
Wire / Remote Control |
| Speaker Material: |
Metal |
| Monitor: |
LED Screen |
| THD: |
>0.01% |
| Speaker System: |
2 in 6 out |
| Application: |
Professional Performance |
Product Description

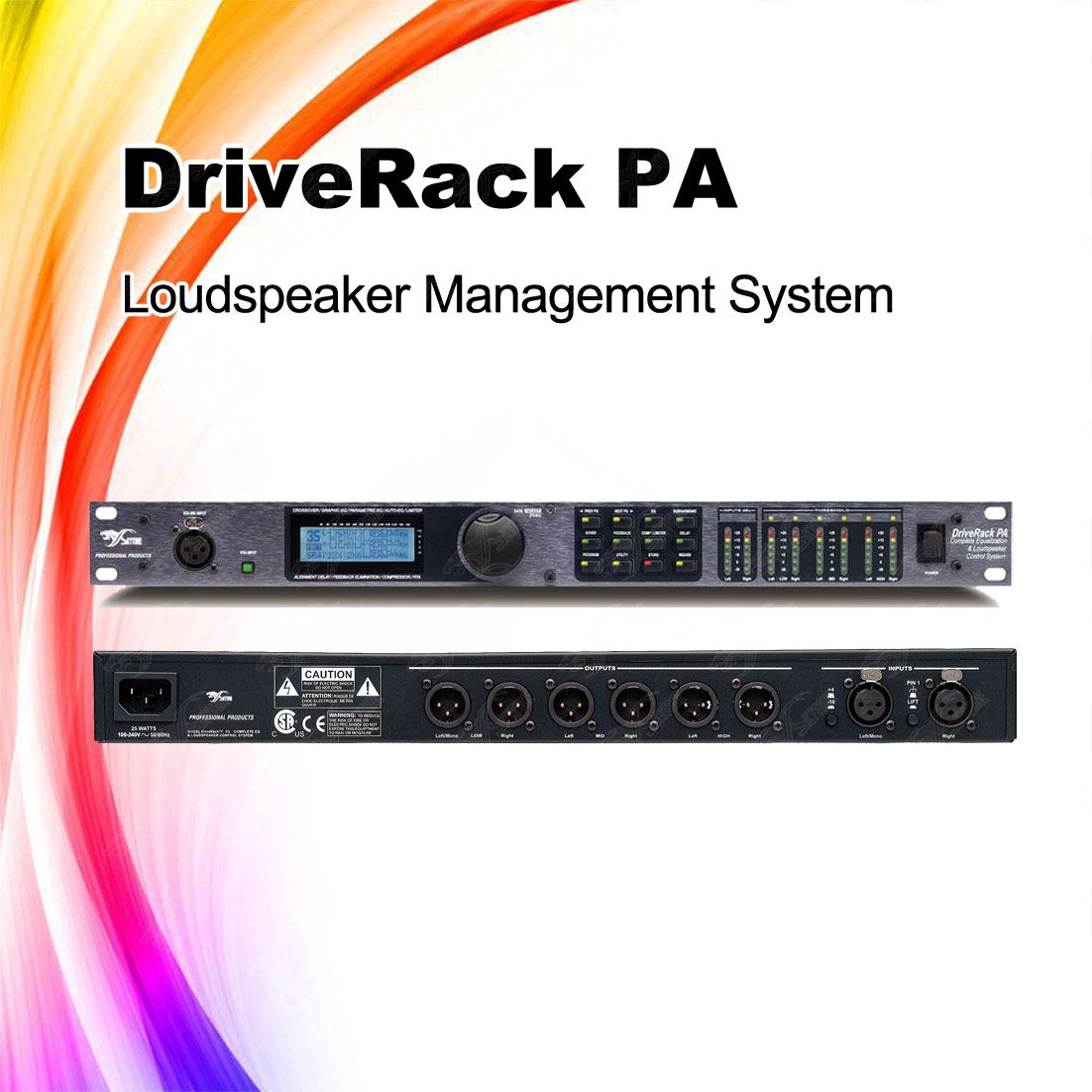

Dbx Driverack PA Style Speaker ProcessorDbx Driverack PA Style Processor
Sound processor
Audio processor
The best just got even better! The DriveRack PA, far and away the world's most popular loud speaker management system has now become the DriveRack PA; The best has indeed gotten better. Showcasing all the features that users around the world have come to expect, including easy setup, rock-solid reliability and unparalleled sound quality, this version of DriveRack has gone to great lengths to earn its "plus. " With more settings, more control and enhanced circuitry, the sound you seek is right at your fingertips.
DriveRack PA features:--Setup Wizard Steps Through Speaker and Amp Selection and Levels
--Auto EQ™ Wizard with 28-Band RTA Tunes Your System For The Venue
--AFS™ Wizard Helps Eliminate Feedback
--Stereo Feedback Elimination with 12 feedback notch filters
--dbx 120A Sub-harmonic Synthesizer
--Classic dbx Input Compression
--JBL Speaker and Crown Power Amp Tunings included
--Full time RTA function
--Front-Panel Output Mutes
--Pink Noise Generator (used with Auto EQ and Auto Level Wizards)
--Linked Stereo DSP Processing for ease of use
--24-Bit ADC/24-Bit DAC, >113 dB Dynamic Range
--2-Channel XLR Input and 6-Channel XLR Output
--2x3, 2x4, 2x5, 2x6 Crossover Configurations
--Dual 28-band Graphic EQ- Linked or Dual Mono
--Stereo Multi-band Parametric EQ
--Stereo Output Limiters
--Output Alignment Delay
--Power on/off Mute Circuitry
--Front-panel RTA-M XLR input with phantom power
--25 User Programs/25 Factory Programs
--Full Graphic LCD Display
--Front Panel Input and Output Meters

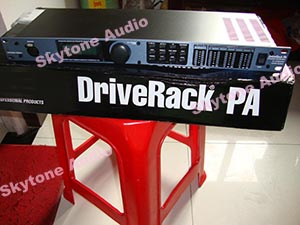

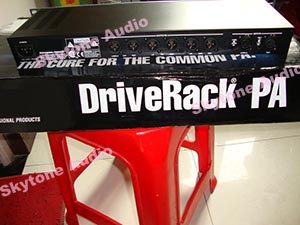

Real photos:
Specification:| Driverack PA Specifications: |
| Analog Inputs: |
| Number of Inputs: | (2) Line inputs. (1) RTA Mic input |
| Connectors: | (2) Female XLR line inputs, XLR RTA Mic input |
| Type: | Electronically balanced/RF filtered |
| Impedance: | > 40k Ω |
| Max input line level: | +20dBu |
| CMRR: | > 45dB |
| RTA Mic Phantom Voltage: | +15VDC |
| RTA Mic EIN: | < -117dBu, 22Hz-22kHz, 150Ω |
| Analog Outputs: |
| Number of Outputs: | (6) Line Outputs |
| Connectors: | Male XLR |
| Type: | Electronically balanced, RF filtered |
| Impedance: | 120 ohms |
| Max Output Level: | +20dBu |
| Alignment Delay: | 10ms per channel (60ms total) |
| A/D Performance: |
| Type: | dbx Type IV conversion system |
| Dynamic Range: | >107 dB unweighted, >110 dB A-weighted |
| Type IV dynamic range: | 123 dB with transient material, A-weighted, 22kHz BW 121 dB with transient material, unweighted, 22kHz BW 115 |
| | dB typical with program material, A-weighted, 22kHz BW |
| Sample Rate: | 48kHz |
| D/A Performance: |
| Dynamic Range: | 112 dB A-weighted, 110dB unweighted |
| System Performance: | |
| Dynamic Range: | 110 dB unweighted, >107dB weighted, |
| THD+N: | 0.002% typical at +4dBu, 1kHz, 0dB input gain |
| Frequency Response: | 20Hz - 20kHz, +/- 0.5dB |
| Interchannel Crosstalk: | >110dB, 120dB typical |
| Crosstalk input to output: | >100dB |
| Power Supply: |
| Operating Voltage: | DO: 100-120VAC 50/60 Hz - EU: 220-240 VAC 56/60 Hz, |
| Power Requirements: | 25 Watts |
| Physical: |
| Weight: | 5.5 lbs.(2.5 kg) Shipping weight 7 lbs. (3.18 kg) |
| Dimensions: | 1.75" H x 5.75" D x 19" W |
