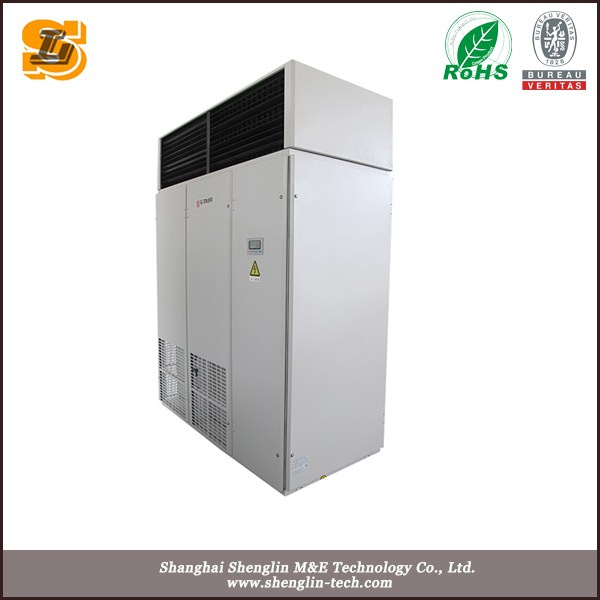

Date Center Air Conditioner
| Price: |
US $ 2000-2200/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
200/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
GT-HFM-35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Cabinet Precision Air Conditioner |
| Power Source: |
Electrical |
| Management: |
Powerful Network Management |
| Voltage (V): |
220/380 |
| Performance: |
Cooling/Heating |
| Housing Material: |
Stainless Steel, Coated Metal |
| Use: |
Swimming Pool Heater, House, School, Sauna, Hotel |
| Refrigerant: |
R22/R134A/R417A/R407c/R404A/R410A |
| Installation: |
Freestanding |
| Usage: |
for Air Conditioner |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Split |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Air Conditioner |
Product Description
Features
1. Precise and reliable
Careful design, rigorous laboratory testing, and comprehensive quality control to ensure that the unit has excellent reliability;
Parts of the world-renowned brands, ensuring high reliability and service life;
Intelligent microprocessor control system, which enables the unit is always running at its best.
2. Constant temperature and humidity
It can accurately control the temperature (accuracy ± 1 ° C), humidity (± 5%) to adapt to all-day job requirements;
The unit equipped with a frontal area of the evaporator, to reflect the amount of wind, the small enthalpy difference, to produce the greatest sensible cooling capacity, so that the indoor environment, easy to maintain the equilibrium of temperature and humidity;
3. Variety of options
The GT-HF series of standard temperature and humidity air-conditioning unit, with conventional constant temperature and humidity control is flexible, applicable to the general (conventional) constant temperature and humidity requirements of the occasion;
GT-the HFD series of ceiling temperature and humidity air conditioning units, can be installed on the ceiling applies to the room space is small or there is no dedicated room small-scale temperature and humidity region of space;
4. Other features
Variety back to the wind (on the air: The hood / duct or directly from the unit at the top of the air; Under the air: And sent to all parts of the engine room through the raised floor plenum chamber);
Configure the removable electrode humidifier, quickly produce clean steam, optional electric humidifier scene according to user requirements;

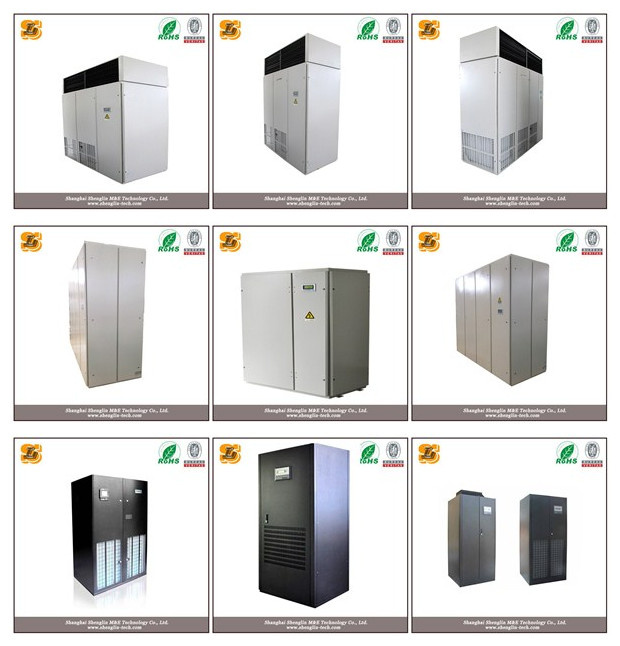

G4 level of air filters, filter effects, to meet the conventional cleanliness requirements, and can be equipped with higher cleanliness of the F8-level air filter;Product showing
specification| GT-HFM series constant temperature and humidity precision air conditioner specification |
| Model GT-HFM-() | 35 | 40 | 50 | 55 | 60 | 70 | 80 | 90 |
| Specification | Total cooling capacity | kW | 36.5 | 42.1 | 49.1 | 54.1 | 61 | 71.6 | 81.4 | 93.6 |
| Sensible cooling capacity | kW | 33.8 | 38.4 | 44.3 | 49.8 | 55.5 | 65.1 | 74.7 | 85.1 |
| Electric heating | kW | 15 | 18 | 18 | 18 | 24 | 24 | 30 | 30 |
| Air volume 2* | m3/h | 10500 | 11500 | 13000 | 15500 | 18000 | 20500 | 22000 | 25000 |
| Outlet air pressure 2* | Pa | 75 | 75 | 75 | 75 | 100 | 100 | 125 | 125 |
| Noise 3* | dB(A) | 56 | 58 | 58 | 58 | 58 | 58 | 60 | 60 |
| Temperature control range and accuracy | ° C | 18~28, ± 1 |
| Humidity control range and accuracy | % | 45~70, ± 5 |
| Power | 3N-380V-50Hz |
| Input power 4* | kW | 30 | 38.2 | 39.6 | 40.7 | 52.3 | 56.7 | 66.8 | 74.8 |
| Indoor unit | Supply air fan | type | low noise centrifugal type |
| capacity | kW | 2.2 | 3 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
| Electrode humidifier | humidification volume | kg/h | 13 | 13 | 13 | 15 | 15 | 15 | 18 | 21 |
| Electric heating | capacity | kW | 15 | 18 | 18 | 18 | 24 | 24 | 30 | 30 |
| Evaporator type | Inner grooved copper tube and aluminum fin |
| Air filter | primary efffect plate type filter |
| Dimension | L | mm | 1800 | 1800 | 2000 | 2000 | 2000 | 2200 | 2200 | 2500 |
| W | mm | 850 | 850 | 850 | 850 | 850 | 1080 | 1080 | 1200 |
| H | mm | 2200 | 2200 | 2150 | 2150 | 2150 | 2350 | 2350 | 2450 |
| Weight | kg | 580 | 610 | 710 | 750 | 820 | 900 | 980 | 1250 |
| Outdoor unit | Model GT-( )*quantity | ##### | WL40*1 | ##### | WL55*1 | WL60*1 | WL70*1 | WL40*2 | WL50*2 |
| compressor | type | Totally enclosed scroll type |
| quantity | 1 | 2 | 2 | 2 | 2 | 2 | 4 | 4 |
| condenser type | Inner grooved copper tube and aluminum fin |
| Condensing fan | type | Low noise axial type |
| capacity | kW | 0.75 | 0.55*2 | 0.55*2 | 0.55*2 | 0.75*2 | 0.75*2 | 0.55*4 | 0.55*4 |
| Dimension | L | mm | 980 | 1880 | 1880 | 1880 | 1880 | 1880 | 1880 | 1880 |
| W | mm | 980 | 980 | 980 | 980 | 980 | 980 | 980 | 980 |
| H | mm | 1234 | 1080 | 1080 | 1080 | 1234 | 1234 | 1080 | 1080 |
| Weight | kg | 250 | 320 | 400 | 400 | 450 | 500 | 320*2 | 400*2 |
| Freon 5* | type | R22(R407C/R410A) |
| control method | Out balance expansion valve |
| Collecting pipe 6* | liquid pipe`s diameter | mm | 15.88 (12.7) | 15.88*2 (12.7*2) | 15.88*2 (12.7*2) | 15.88*2 (12.7*2) | 15.88*2 (12.7*2) | 15.88*2 (12.7*2) | 15.88*4 (12.7*4) | 15.88*4 (12.7*4) |
| gas pipe`s diameter | mm | 34.9 (28.6) | 22.23*2 (19.05*2) | 28.6*2 (22.23*2) | 28.6*2 (22.23*2) | 28.6*2 (22.23*2) | 34.9*2 (28.6*2) | 22.23*4 (19.05*4) | 28.6*4 (22.23*4) |
|
|
|
|
|
|
|
|
|
|
|
|
| 1. Cooling condition: Indoor dry bulb/wet bulb: 24/17° C; Outdoor dry bulb/wet bulb: 35/24° C; |
| 2. Air volume\static pressure are standard data, it can be designed by client |
|
| 3. Noise data is measured 3 meters far away from the units |
|
|
|
|
| 4. The input power means the power consumption under max condtion |
|
|
|
| 5. If freon is R410A or R407C, please noted it in the order |
|
|
|
|
| 6. The dimension in the brackets is for R410A`s collecting pipe |
|
|
|
Factory showing
Customer
Contact us contact person:Wendy Wang
Web:www.shenglin-tec.com
Tel:+86 15216798990
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
