| Prod Model: |
ST1T-A2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

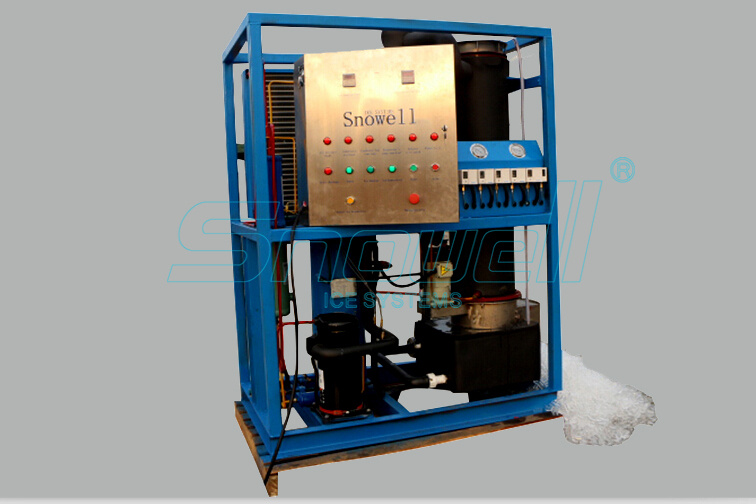

Tube Ice Maker Machine Replacing Cube Ice Machine |
| Refrigeration Capacity: |
6.8kw |
| Refrigerant: |
R404A/R22 |
| Power Supply: |
380V/50Hz/3p |
| Compressor Installation Power: |
4.1kw |
| Cooling Mode: |
Air Cooliing |
| Ice Machine Compressor Brand: |
Bitzer/Bock |
| Ice Maker Electrical Parts: |
Schneider |
| Tube Ice Size: |
29mm |
| Tube Ice Maker Warranty: |
2 Years |
| Ice Shape: |
Tube |
| Control: |
Electric |
| Power: |
>400W |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Application: |
Industrial |
| Condensing Mode: |
Air-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
Without Automatic Cleaning Device |
Product Description
Detailes Description:
As the name implies,tube ice maker machine makes tube ice,which is a kind of hollow cylindrical ice with external diameter normal Φ29mm and length 25-42mm,. the hole diameter usually 5-10mm and it can be adjusted according to ice making time.
Features of our tube ice maker
1. Perfect design: this tube ice maker adopt 3D simulation assembly, compact structure, easily operate and maintain.
2. Our tube ice maker adopts the newest international ice machine making technology. Equipped with world famous components like Bitzer Compressor, Danfoss Expansion Valve, and so on.
3.User-friendly design for the tube ice maker,very convenient for operator.
4.Saving energy and low maintenance and operation cost. After the tube ice is off, the water of low tempreture is used for ice making,increasing the volumn of production fo ice.
6.All the material of the tube ice maker meets the HACCP request. CE, ISO Certificate approved. The use of stainless steel SUS304, aluminium alloy plate type evaporator,accords with the health and safety requuiments.
| Details of Snowell 1T/24 hrs Tube Ice Maker Machine |
| No | Description | Specification |
| 1 | Design Capacity | 1000Kg/24h |
| 2 | Refrigeration Capacity | 6.8kw |
| 3 | Refrigerant | R404A |
| 5 | Power Supply | 380V/50Hz/3P |
| 6 | Compressor Installation Power | 4.1kw |
| 7 | Cooling Mode | Air Cooliing |
| 8 | Evaporating Temp. | -10°C |
| 9 | Tube Ice Tempreture | -2°C |
| 10 | Condensing Temp. | 42°C |
| 11 | Design Water Inlet Temp. | 25°C |
| 12 | Design Ambient Temp. | 33°C |
| 13 | Unit Weight | 620kg |
| 14 | Unit Dimension | 1460*924*1800mm |
| 15 | Tube Ice Size | Φ22,Φ29,Φ35,Inner Diameter(3mm--15mm) |
Company Profile
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one 10 years experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice block machine ect. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
Frequent Asked Questions(FAQ)
Q1: What is the delivery time?
A1:
1).The ice making machine type. Our main product line includes Flake Ice Machine, Tube Ice Machine, and Block Ice Machine. The manufacturing is totally different. So the time and effort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity
2). Different Ice Daily Capacity: we have 1T, 2T, 5T, 10T, 20T, 25T, 30T, 40T, 50T ice making machines. For small capacity ice making machines(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).
Q2. What is the payment terms and trade terms?
A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery.
Trade Terms: FOB Shenzhen
Q3: Do I need to install the ice machine by myself?
For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you, it's very to install the machine.
Q4: For Water Cooled and Air cooled Machine, Which one is better?
A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
