| Prod Model: |
BS 112 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1 X12 "Subwoofer System: |
Double Gap Cavity Paraphase |
| 16 PCS Wheel Screw: |
2X Nl 4 |
| 4 Handles: |
4 Rubber |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Disco Hall |
| Certification: |
CE |
| Monitor: |
LCD Screen |
| THD: |
<0.005% |
Product Description

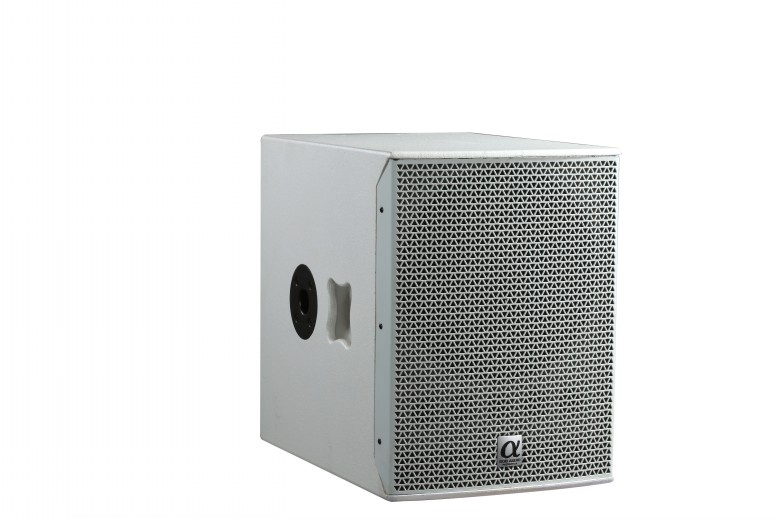

BS112 is a dual resonate cavity paraphase design subwoofer, it loads a 12" long-stroke LF driving unit, 40Hz-130Hz frequency response characteristic. LF ouput has a feeling of deep and shocking. BS112 uses multilayer birch plywood to make the enclosure, with elastic coating or environmental protection coating shell. The front panel use metal mesh enclosure stick acoustic soft sponge as the speaker's protection. Side plate combine 4 handles and wheel plate buckles,also dispose with 16 pulley mounting screw in rear panel. Terminal is disposed with NL4 parallel connection, M20 supporting base for other full range speaker both on top and side plate. When more than one BS112 stacked together, there are 4 rubber pads at the bottom of each speaker could be embedded to the groove of others, in order to aviod sliding.
Characteristic:
.1 x12 "subwoofer system
.Double gap cavity paraphase design
.Versatility
Applications:
.Disco, dance halls, clubs
.Nightclubs, karaoke rooms
.Large government and enterprise activities
.Mobile and fixed installation install
Specifications:
System
Frequency Response 40 Hz - 130 Hz @(±3 dB)
Sensitivity 97 dB SPL (1W @ 1m)
Nominal Impedance 8 ohms
Power Handing 400 watts , 800 watts , 1600 watts
Maximum SPL 121 dB
Crossover Frequency 110 Hz
Drivers
Low Frequency 1 x 12(in) 380 mm , 75 mm(3in) voice coil dia
Physical
Enclosure Construction 15 mm birch plywood with structured
Finish Wear-resistant textured black paint
Grille Powder coated perforated steel,foam backed
Other Aluminiumpoli mount socket
Input Connectors NL4 x 2
Dimensions H x W x D 510 mm x 380mm x555 mm
Net Weight 23.5kg
