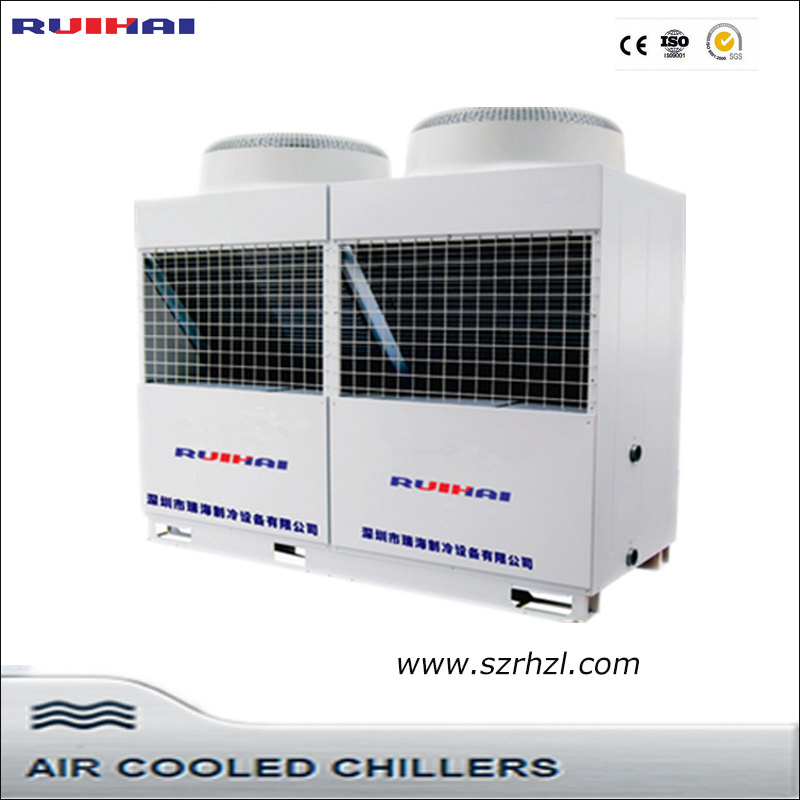

Cooling System Water Chiller Air Conditioner

Prod Model:	RHP-008A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity Controlling:	0-100%
Frequency:	50/60Hz
Size:	1550X800X1900mm
Weight:	420kg
Warranty:	12months
Type:	Air-Cooled
Certification:	CCC
Condition:	New

Product Description

Cooling System Water Chiller Air Conditioner is using most advanced production technology, with superior quality, high performance, low noise.
The product is widely adopted in manufacturing process industries such as non-ferrous smelting, chemical and pharmaceutical, petroleum chemistry, grain and oil, food and beverage, mechanical, electric, air separation, etc.

Cooling System Water Chiller Air Conditioner features:

1.Using international DAKIN, SANYO, Copeland or other top brand compressor, with,
low noise and high performance.
2.Single or multiple unit combination is available according to customers' requirements and capacities
range.
3.Compressor can run separately or work together automatically varying the process of loads.
4.Evaporator is using internal thread high efficient copper tube, and, combined with the
unique structure design has the advantage of super heat exchange, compact structure,
reliable oil return, easy to maintain, etc.
5.Shell and tube type condenser is using high efficient copper tubes, with the advantages of high heat
transfer efficiency, reliable heat transfer, high performance, washable and convenient maintenance.
6.The microcomputer controlling system, with powerful security protection, communication,
fault diagnosis, automatically adaptation and other function.
7. Mutiple choice of refrigerant as R22/R134a/R3047C.

Cooling System Water Chiller Air Conditioner Spec:


				RHP-008A	RHP-010A	RHP-015A	RHP-020A
characteristics	Nominal refrigeration capacity		Kcal/h	16,000	20,000	30,000	40,000
	Nominal heating capacity		Kw	23	28.8	43.1	57.5
	Capacity control		%	100,0
	Power supply
	Power consumption		Kw	7.1	8.2	12.5	16.3
	Refrigerant	Name
		Charge	Kg	4	5	7.5	10
		controlling method
Refrigeration system	Compressor	Type		Hermetic scroll
		Qty		1
		Input Power	Kw	7.91	8.94	4.66+8.94	8.94*2
	Condenser	Type
		Windward area		0.96	1.2	1.8	2.4
	Evaporator	Type		GDD-008	GDD-010	GDD-015	GDD-020
		Dia	PT	1-1/2"	1-1-2"	2"	2"
		Resistance	Kpa	30	32	34	34
Cooling system	Fan	Type
		Circulating flow	m3h	8000	10000	15000	19000
	Motor	Drive motor
		Input power	Kw	0.42	0.65	1.1	0.65*2
Protective device			high/low pressure switch, frost-preventive switch, overload protector,  coil
size	W		mm	1550	1550	1550	1900
	D		mm	800	800	800	900
	H		mm	1900	1900	1900	2000
NW			kg	420	450	480	550

RHP-025A	RHP-030A	RHP-040A	RHP-050A	RHP-060A	RHP-080A	RHP-100A	RHP-120A
50,000	60,000	80,000	100,000	120,000	160,000	200,000	240,000
71.9	86.3	115	143.8	172.5	230	287.5	345
100,50,0			100,75,50,25,0
3-50Hz-380V
19	26	39.2	48.5	59.7	77.6	94.1	121.7
12.5	15	20	25	30	40	50	60
Thermal expansion valve
			Semi-hermetic reciprocating
2			1			2
10.1*2	14.1*2	20.2*2	51	63	80	51*2	63*2
Coil
3	3.6	4.8	6	7.2	9.6	12	14.4
GDD-025	GDD-030	GDD-040	GDD-050	GDD-060	GDD-080	GDD-100	GDD-120
2-1/2"	2-1/2"	3"	3"	3"	4"	4"	5"
32	35	38	41	42	46	48	50
Low noise screw axis-flow
23000	28000	36000	48000	56000	76000	96000	114000
bearing drive
1.0*2	1.1*2	2.85*2	1.5*4	1.8*4	2.85*4	1.45*6	2.85*6
overheat protector, temperature automatic protection switch.
1900	2600	2600	2600	2600	2900	4040	4040
900	1200	1200	2200	2200	2200	2240	2240
2000	2300	2300	2400	2400	2400	2800	2800
650	730	100	1600	1800	2000	2500	3000


Remarks:1. The above data is based on ice water inlet temp 12degree, outlet temp
7degree, cooling water head loss under 6.6M, ambient temperature 35CDB 31CWB.
2. No prior notice if any modified about above specification. 3. Please always confirm before you order.
4. If the frequency of power supply is 60HZ, all the data above should be dived by 0.83.


After-sales service:

Cooling System Water Chiller Air Conditioner has 12 months warranty since the date of delivery.

(1)We will bear all cost for replace during the warranty if it is caused by the quality
issue of our chillers, and is confirmed by the technical identification of the company.
(2)All extra parts for the machine can be purchased with agent price out of the
warranty.
(3)24hours online support by email,skype, tel.
(4) Provide install video if necessary and Our engineer is able to go to overseas for
installation and training.
(5) Provide foundation drawing.

FAQ:

1.what is the cooling capacity?_____    Kcal/hr  or   _____KW?
2. what's your power supply? -V-HZ-Phase?
3. the refrigerant R22 or R134a, R407c,R404A?
4. What's your ambient temperature? and how about the chiller inlet and
outlet water temperature?
5. Which industry the chiller used in?
