| Prod Model: |
RHT-003W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerant: |
R22/R3047c/R134A |
| Cooling Capacity: |
26kw |
| Frequency: |
50/60Hz |
| Size: |
1380X850X1200mm |
| Weight: |
300kg |
| Warranty: |
12months |
| Type: |
Air-Cooled |
| Certification: |
CCC |
| Condition: |
New |
Product Description

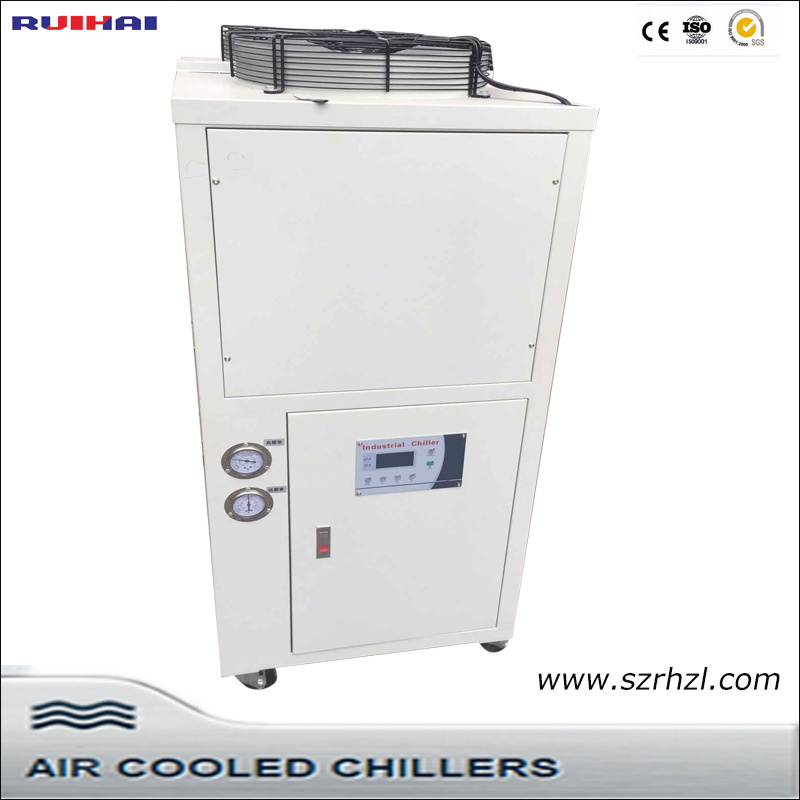

Water Cooler Air Conditioner is using advanced technology, with superior quality, compact structure, beautiful appearance, high performance. Water Cooler Air Conditioner can be widely used in plastics, electroplating, electronics manufacturing, pharmaceutical chemicals, food processing, laser, ultrasonic cool, printing and other industries.
Water Cooler Air Conditioner main features:
1. Industrial box type air cooled water chiller is equipped with imported
compressor and high efficiency condenser and evaporator, excellent cooling capacity,
quite and low electricity consumption.
2.Industrial box type air cooled water chiller' tank are made of stainless steel,
easy cleaning and maintenance.
3.Industrial box type air cooled water chiller' electronic thermostat accurately
maintain temperature within 3~5 degree.
4.Industrial box type air cooled water chiller is installed with current overload
protector, high and low pressure switch, electronic timer delay, fault display system.
5.Industrial box type air cooled water chiller has LCD Screen display of chill water
out let and inlet with temperatures setting(optional).
6.Single, double or four compressors combination unit is available for Industrial box type air cooled water chiller,
with high efficiency, elegant appearance and English and
Chinese human-machine interface.
Water Cooler Air Conditioner Technical Parameters:
Model No | RHT-003W | RHT-005W | RHT-008W | RHT-010W | RHT-012W | RHT-015W | RHT-020W |
| Power supply | 3Φ-50Hz-380V |
| Refrigeration capacity | KW | 9.5 | 16.3 | 23.5 | 31.9 | 40.3 | 48.2 | 63.6 |
| Kcal/h | 8.170 | 14.020 | 20.210 | 27.430 | 34.650 | 41.460 | 54.690 |
| Power | KW | 2.4 | 4.1 | 6.0 | 8.1 | 10.3 | 12.4 | 16.5 |
| Freezing water flow | M3/h | 1.6 | 2.6 | 4.3 | 5.5 | 6.9 | 8.2 | 10.8 |
| Cooling water flow | M3/h | 2.0 | 3.2 | 5.4 | 6.8 | 8.6 | 10.3 | 13.9 |
| Compressor | Type |
| Hermetic scroll |
| Controlling method |
| sequential starting |
| Input power | KW | 2.3 | 3.8 | 5.6 | 7.5 | 9.4 | 11.3 | 15.0 |
| Cooling medium | Refrigerant |
| R-22 |
| Control method |
| Expansion valve |
| Volume | Kg | 1.5 | 2.5 | 4.0 | 5.0 | 6.2 | 7.5 | 10.5 |
| Evaporator | Type |
| Shell and tube type |
| Pipe Dia | B | PT2" | PT2-1/2" | PT2" |
| Condenser | Type |
| Shell and tube type |
| Pipe Dia | B | PT1" | PT2-1/2" | PT2" | PT2-1/2" |
| Built-in water tank volume | L | 100 | 100 | 130 | 130 | 130 | 180 | 180 |
| Built-in pump Power | KW | 0.75 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 |
| Protector devices | High/low pressure switch, freeze protection device, safety valve, overload protection device, coil over heat protector, temperature automatic protective switch and etc |
| Size | L | mm | 920 | 920 | 1380 | 1380 | 1380 | 1700 | 1700 |
| W | mm | 600 | 600 | 850 | 850 | 850 | 850 | 850 |
| H | mm | 1100 | 1100 | 1200 | 1200 | 1200 | 1300 | 1300 |
| Weight | Kg | 140 | 160 | 280 | 300 | 320 | 490 | 550 |
| Model No | RHT-025W | RHT-030E | RHT-035W | RHT-040W | RHT-045W | RHT-050W | RHT-060W |
| Power supply | 3Φ-50Hz-380V |
| Refrigeration capacity | KW | 78.2 | 95.2 | 108.3 | 125.1 | 139.8 | 155.3 | 186.5 |
| Kcal/h | 67.250 | 81.870 | 93.130 | 107.580 | 120.230 | 133.560 | 160.390 |
| Power | KW | 20.2 | 24.6 | 28.3 | 32.2 | 36.5 | 40.3 | 48.5 |
| Freezing water flow | m3/h | 13.6 | 16.0 | 18.8 | 21.2 | 24.1 | 26.5 | 31.8 |
| Cooling water flow | m3/h | 17.2 | 20.5 | 24.0 | 27.3 | 30.8 | 34.2 | 40.8 |
| Compressor | Type |
| Hermetic scroll |
| Controlling method |
| sequential starting |
| Input power | KW | 18.8 | 22.5 | 26.3 | 30.0 | 33.8 | 37.5 | 45.0 |
| Cooling medium | Refrigerant |
| R-22 |
| Control method |
| Expansion valve |
| Volume | Kg | 12.5 | 15.0 | 17.5 | 20.2 | 22.5 | 25.0 | 30.0 |
| Evaporator | Type |
| Shell and tube type |
| Pipe Dia | B | PT2-1/2" | PT3" |
| Condenser | Type |
| Shell and tube type |
| Pipe Dia | B | PT2-1/2" | PT3" |
| Built-in water tank volume | L | 180 | 220 | 220 | 220 | 280 | 280 | 280 |
| Built-in pump Power | KW | 1.5 | 2.2 | 2.2 | 2.2 | 3.0 | 3.0 | 3.0 |
| Protector devices | High/low pressure switch, freeze protection device, safety valve, overload protection device, coil over heat protector, temperature automatic protective switch and etc. |
| Size | L | mm | 1700 | 1700 | 2200 | 2200 | 2200 | 2400 | 2400 |
| W | mm | 850 | 850 | 900 | 900 | 900 | 900 | 900 |
| H | mm | 1300 | 1300 | 1350 | 1350 | 1350 | 1450 | 1400 |
| Weight | Kg | 630 | 820 | 1000 | 1090 | 1200 | 1430 | 1600 |
Remarks:1.The above data is based on freezing water inlet temp 12 degree, outlet temp
7degree, cooling water inlet temp 30, outlet temp 35 degree.2.We reserve the right to modify
the above specifications without prior notice, please always confirm before you order.
After-sales service:
Water Cooler Air Conditioner has12months warranty since the date of delivery.
(1)We will bear all cost for replace during the warranty if it is caused by the quality
issue of our chillers, and is confirmed by the technical identification of the company.
(2)All extra parts for the machine can be purchased with agent price out of the
warranty.
(3)24hours online support by email,skype, tel.
(4) Provide install video if necessary and Our engineer is able to go to overseas for
installation and training.
(5) Provide foundation drawing.
FAQ:
1.what is the cooling capacity?_____ Kcal/hr or _____KW?
2. what's your power supply? -V-HZ-Phase?
3. the refrigerant R22 or R134a, R407c,R404A?
4. What's your ambient temperature? and how about the chiller inlet and
outlet water temperature?
5. Which industry the chiller used in?
