| Prod Model: |
JL-1530 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Production: |
Farm Use Powerful Extractor Fan |
| Size: |
1380/1530 |
| Usage: |
Farm |
| Air Volume: |
44000m3/H |
| Dismension: |
1380*1380 |
| Type: |
Air Cooling Fan |
| Speed: |
3 Speed |
| Power Supply: |
Electric |
| Power: |
100W-300W |
| Application: |
Industrial |
| Timer: |
Without Timer |
Product Description
Applicationsfarm use powerful extractor fanFEATURES
Industrial Exhaust fan's Motor and propeller
Blade is 6 paddle
Motor is 1.1KW
standard motors are totally enclosed, high efficiency
all motors are designed and rated for years of trouble free operation
each motor is individually tested for 100% quality control
Maintenance free motor.
Heavy duty casting pulley and hub
1 cog belt type XPA high efficiency
Exhaust fan's Shutter
Shutter with PVC extrusion frame
All corner are weld and have extra stainless steel corner
PVC louver with T bar
Wire by pass
Warning logo
Easy clip to remove shutter
Guard; powder coat and cold zinc galvanise for better protection
Industrial exhaust fan's Housing
Corrosion resistant fiberglass housing.
FRP molded impact resistant with U.V. protection for better durability, and life
Extra liner FRP resin inside for easy cleaning and minimal dirt and disease
Build-up and maximum air flow
Flush mount design eliminates any protrusions or obstructions in the inside area
Self draining sloped housing is quick and easy to clean FRP color, white, black or customer request
FRP molded has smooth shaped and low air restriction
OPTION
Motor 3 phase
Motor 1phase
Option thermally protection
Option OSHA safety guard
Shutter with aluminum extrusion frame
Winter board insert
Optional variable frequency drive
* OTHERS
Stainless steel hardware
Every fan is individually checked and tested after assemble for quality shipment
Shipped fully assembled, except cone and guard
Advantages:
1. High cooling efficiency and Reliable quality
2. Low noise and high performance
3. Available in various designs and specifications
4. Professional service and wholesale price

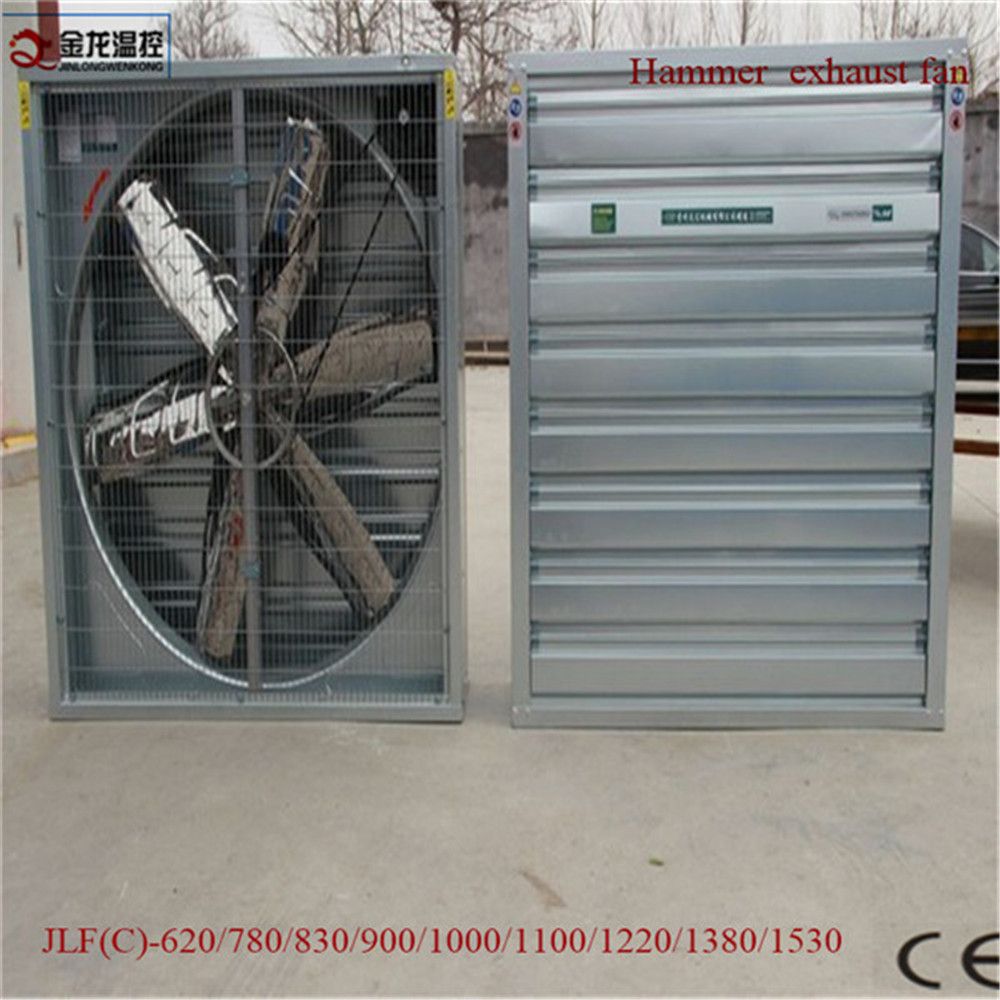

| Model | Diameter
blades
(mm) | Blades
speed
(r/min) | Motor
speed
(r/min) | Air
flow
( m³ /h) | Noise decibel |
power
(w) | Rated
voltage(v) | Height
(mm) | Width
(mm) | Thickness
(mm) |
| JLF(C)-620 | 500 | 1400 | 1400 | 5700 | ≤70 | 250 | 380 | 620 | 620 | 400 |
| JLF(C)-780 | 710 | 960 | 960 | 23000 | ≤70 | 750 | 380 | 780 | 780 | 400 |
| JLF(C)-830 | 720 | 660 | 1400 | 20000 | ≤60 | 550 | 380 | 830 | 830 | 400 |
| JLF(C)-900 | 750 | 630 | 1400 | 22000 | ≤65 | 370 | 380 | 900 | 900 | 400 |
| JLF(C)-1000 | 900 | 610 | 1400 | 30000 | ≤70 | 750 | 380 | 1000 | 1000 | 400 |
| JLF(C)-1100 | 1000 | 600 | 1400 | 32500 | ≤70 | 750 | 380 | 1100 | 1100 | 400 |
| JLF(C)-1220 | 1100 | 460 | 1400 | 38000 | ≤70 | 750 | 380 | 1220 | 1220 | 400 |
| JLF(C)-1380 | 1250 | 435 | 1400 | 40000 | ≤70 | 1100 | 380 | 1380 | 1380 | 400 |
| JLF(C)-1530 | 1400 | 325 | 1400 | 55800 | ≤70 | 1500 | 380 | 1530 | 1530 | 400 |
Qingzhou JINLONG Temperature-controlled Equipment Co., Ltd is a professional livestock machinery manufacturer in Shandong province, China, which is a high technology enterprise composed with design, production, sale and after-sales service.
Our company has advanced machining equipment and strong technical force. We introduced advanced quality control equipment, static and dynamic balancing machine and hydraulic repressive machinery. The main products include ventilation fans, air circulation fan, roof fans, wall fans, cooling system, evaporative cooling pad, air cooler, automatic feeding and drinking system, automatic oil-burning and coal-burning hot blast stove, totally more than 30 kinds, which have absorbed the quintessences of similar products home and abroad, made of high quality materials by advanced technology.
The products are all energy saving, smooth operation, low noise, stable performance, solid and durable with elegant appearance, and widely used in the fields of agriculture, flowers and plants, livestock, textile, mining, chemical, pharmaceutical and timber. Our company always insists on the tenet of "survive with quality, develop with credibility". We provide first-rate products and service for customers with the enterprise spirit as "keep faithfulness, and race to the top ". Our products have been exported to Southeast Asia, Middle East, West Europe, Canada and Australia and get favorable comments.
