| Prod Model: |
G5XXX-E1Z100A01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection Level: |
IP00 |
| Max. Current: |
0.1A |
| Max. Voltage: |
12VDC |
| Electrical Life: |
50,000cycles |
| Mechanical Life: |
1,000,000cycles |
| Operating Force: |
100gf Max with Lever |
| Terminal Type: |
Quick Connect Terminals |
| Rating: |
12VDC 20ua~20mA |
| Electrical Operating Frequency: |
20 Cycles/Minute |
| Mechanical Operating Frequency: |
80 Cycles/Minute |
| Pressing Type: |
Push-Button |
| Size: |
Normal Size |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Single Type |
| Protection: |
Car,Auto,Home Appliance,Industrial Control |
| Application: |
Car,Auto,Home Appliance,Industrial Control |
| Brand: |
Zing Ear |
| Certification: |
UL cUL CQC ENEC RoHS Reseach |
Product Description
Key Specifications/Special Features:
. Tight Configuration,Small Contact Gap , Snap Action,High Sensitivity and Small Operating Travel
. Long Life, High Reliability
. Global Safety Approvals
. Variety of Terminals
. Wide Range Operating Force
. Wide Range Temperature Grade
. With Optional PTI Grade
. Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,Communication Equipments.
. Variety of Levers
Application:
. Home Appliance
. Electronic Equipments
. Automatic Equipments
. Communication Equipments
. Auto Electronics
. Apparatus and Instruments
. Power Tools

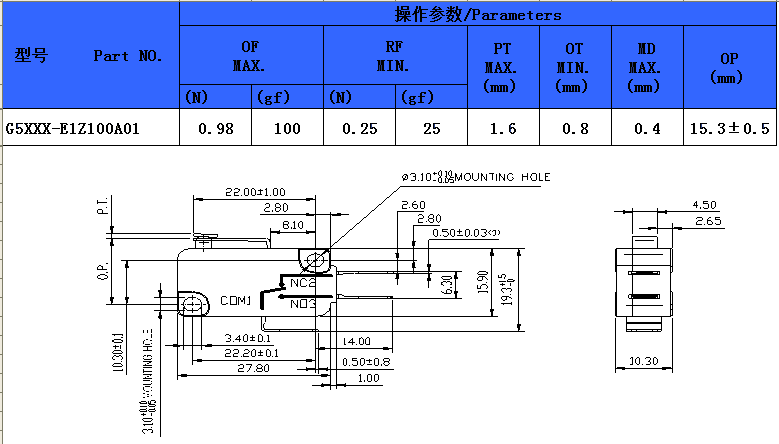

Parameters:
| Operating Speed | 0.1mm-1m/s( Related with actuator forms) |
| Operating Frequency | Mechanical 60 cycles/min; Electrical 15 cycles/min. |
| Insulation Resistance | ≥100MΩ (500VDC) |
| Contact Resistance | ≤100MΩ (Initial value) |
| Test Voltage | Between each terminals of the same polarity | AC1000V,50/60HZ, 1min. |
| Between current-carrying metal part and ground.and between each terminal and non-current-carring metal parts | AC1500V, 50/60HZ, 1min. |
| Vibration Resistance | 10-55HZ, 1.5mm Double amplitude |
| Shock Resistance | Destruction: OF>0.5N:1000m/s2 (approx.100G)max. |
| Destruction:OF>0.5N:200m/s2 (approx.20G)max. |
| Serivece Life | Mechanical ≥ 10,000,000cycles or 1,000,000cycles |
| Electrical ≥ 50,000cycles or 100,000cycles |
| Weight | Approx. 6.2g(No lever). |
| Trade Terms | 1.The price is based on FOB Shenzhen or Hongkong or EXW factory
2.MOQ:100pcs
Payment:T/T payment,50% deposit before production, balance 50% before shipment |
| Certificates | ISO9001&TS16949
ENEC UL CUL &CQC
RoHS & Reach |
Packaging & Delivery:
. Pack out : 1200pcs/ctn
. Gross weight : about 10.8/kgs per master carton
. Production lead time : 2-4 weeks against order issue
. Sample lead time : 2-5days
Packaging Details:
| NO. | Greetech Product | Inner Box | Shipper Carton | MPQ |
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) |
| (pcs) | (pcs) | (pcs) | (Days) |
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5
|
Company Information
Greetech Advantages:
. ISO9001 & TS16949 qualified
. Most products are produced & tested by automatics
. Automatic machines are designed and assembled by our own team
. Awarded as National Innovative Technology Company
. Strong R&D team, authorized over 30 patents
. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Business Partners:
Trade Shows & Customers Visiting:
FAQ:
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What's the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5, What 's the lead time of mass production?
A : About 2-4 weeks.
Q6. What's the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
Huizhou Greetech Electronics Co., Ltd. Focuses on R&D and manufacturing various of micro switches, auto switches, waterproof switches, pressure switches, mechanical keyboard switches, precise auto parts, mobile phone connectors, and various kinds of contact modules and terminal components. The annual output of switches & connectors is about 160 millions pieces.
Greetech belongs to Zing Ear Group, and started to run independently since 2007 year. Now we have about 500 staffs working at about 10, 000 factory buildings. Our main engineers have professional R&D experiences in the lines of switches & connectors for 8 to 20 years. All of our products are safety approved by UL, cUL, ENEC & CQC. Our Manufacture has certified of ISO9001 and ISO/TS16949 quality assurance system. We have our own team to research and develop automatic assembly & testing equipments. Presently over 80% of our products are produce & testing by automatic equipments to ensure the consistency of quality.
Nowadays, Greetech has set up a complete one-stop R&D and Produce system including: Products & process R&D, precise tooling, molding injection, stamping and automation equipment R&D, finish goods assembly & testing.
Dedication, Passion, Integrity, Embracing Change, Team Cooperation, Customer First are our core values.
Serving our customers well, Developing our people for growth, Return on capital and Contribution to Society are always our mission.
Providing made-in-China Precise Modules Parts for Global Customers is always our Goal!
Contace us today for more information via email at sales6@greetech. COM
