| Prod Model: |
G5W11-WZ100A02-WX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection Level: |
IP67 |
| Max. Current: |
10A |
| Max. Voltage: |
250VAC |
| Terminal Type: |
with Lead Wires |
| Lever Type: |
Std Straight Lever |
| Circuit Code: |
Spdt |
| Qualification: |
ISO9001,Ts16949 |
| Electrical Life: |
2e4~10e4 Cycles(Depends on P/Ns) |
| Function: |
Spdt |
| Pressing Type: |
Short Arm |
| Protection: |
Waterproof |
| Size: |
Normal Size |
| Environment: |
≧250℃﹤400℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Single Type |
| Application: |
Home Appliance,Automatic Equipments,Power Tools |
| Brand: |
Zing Ear |
| Certification: |
UL cUL ENEC CQC |

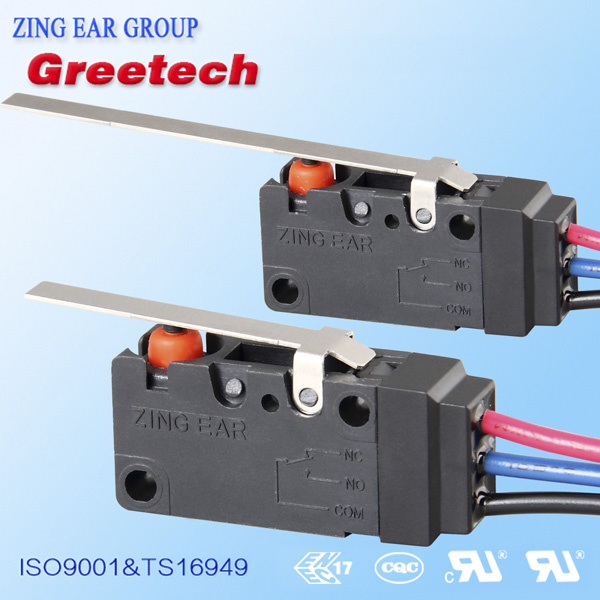

Product Description
Key Specifications/Special Features:
. Water Proof and Dust Proof
. Tight Structure,Small Contact Gap,Snap Action,High Sensitivity
. Long Life,High Precision and Reliability
. Widely Used in Auto,Agricultural Equipment,Applications,Office Equipment etc
. Max Approved Current at ENEC/UL is 10A
Parameters:
| W1 | ENEC: 0.1A 48VDC, 0.1A 125/250VAC,40T85,5E4,u UL:0.1A 48VDC,0.1A 125/250VAC,T85 |
| W2 | ENEC: 5A 125/250VAC,5A, 30VDC,40T85,5E4, u UL:5A 125/250VAC,T85 |
| W3 | ENEC:10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC,40T85,u,2E4 UL:10.1A 1/10HP 125/250VAC,0.5A 125VDC, 0.25A 250VDC, T85 |
| Operating Frequency | | 10~30 times/min |
| Mechanical | times/min |
| Contact Resistance(intial value) | with terminal | 50mΩMax |
| with wire | 100mΩ Max(Depends on the length of the wire) |
| Insulation resistance |
| at 500VDC,100MΩ Min. |
| Dielectric Strength | Between terminals | AC 1000V 50-60Hz 1min |
| Between terminals and housing | AC 1500V 50-60Hz 1min |
| Storage Temperature |
| -40°C~+85°C |
| Strorage Humidity |
| 85%RH Max |
| Protection grade | With terminal | IEC IP67(Terminal not included) |
| With wire | IEC IP67 |
| Electric-shock safeguard grade |
| Class I |
| PTI |
| 250 |
| Life | E-life | 2E4~10E4 cycles(depends on P/Ns) |
| M-life | over 1000,000cycles(60cycles/min) |
| Weight |
| Approx.7g(with terminal and without lever) |
Application:
. Elctronic Devices
. Electric Tooth Brush
. Automatic Equipments
. Auto Electronics
. Agriculture Equipments
. Home Appliance
. Office Equipments
Greetech Advantages:
. ISO9001 & TS16949 qualified
. Most products are produced & tested by automatics
. Automatic machines are designed and assembled by our own team
. Awarded as National Innovative Technology Company
. Strong R&D team, authorized over 30 patents
. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Business Partners:
![]()
Trade Shows & Customers Visiting:
![]()
Packaging & Delivery:
. Pack out : 1000pcs/ctn
. Gross weight : about 2.7/kgs per master carton
. Production lead time : 2-4 weeks against order issue
. Sample lead time : 2-5days
![]()
| NO. | Greetech Product | Inner Box | Shipper Carton | MPQ |
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) |
| (pcs) | (pcs) | (pcs) | (Days) |
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
FAQ:
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What's the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5, What 's the lead time of mass production?
A : About 2-4 weeks.
Q6. What's the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
Huizhou Greetech Electronics Co., Ltd. Focuses on R&D and manufacturing various of micro switches, auto switches, waterproof switches, pressure switches, mechanical keyboard switches, precise auto parts, mobile phone connectors, and various kinds of contact modules and terminal components. The annual output of switches & connectors is about 160 millions pieces.
Greetech belongs to Zing Ear Group, and started to run independently since 2007 year. Now we have about 500 staffs working at about 10, 000 factory buildings. Our main engineers have professional R&D experiences in the lines of switches & connectors for 8 to 20 years. All of our products are safety approved by UL, cUL, ENEC & CQC. Our Manufacture has certified of ISO9001 and ISO/TS16949 quality assurance system. We have our own team to research and develop automatic assembly & testing equipments. Presently over 80% of our products are produce & testing by automatic equipments to ensure the consistency of quality.
Nowadays, Greetech has set up a complete one-stop R&D and Produce system including: Products & process R&D, precise tooling, molding injection, stamping and automation equipment R&D, finish goods assembly & testing.
Dedication, Passion, Integrity, Embracing Change, Team Cooperation, Customer First are our core values.
Serving our customers well, Developing our people for growth, Return on capital and Contribution to Society are always our mission.
Providing made-in-China Precise Modules Parts for Global Customers is always our Goal!
