| Prod Model: |
LA312 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
Dual 12inch, Three-Way Line Array System |
| Frequency Range: |
40Hz-20kHz |
| Frequency Response: |
60Hz-18kHz |
| Horizontal Coverage Angle: |
90 |
| Vertical Coverage Angle: |
10 |
| Noise: |
<95dB |
| Application: |
Commercial |
| Certification: |
RoHS |
| THD: |
<0.03% |
Product Description

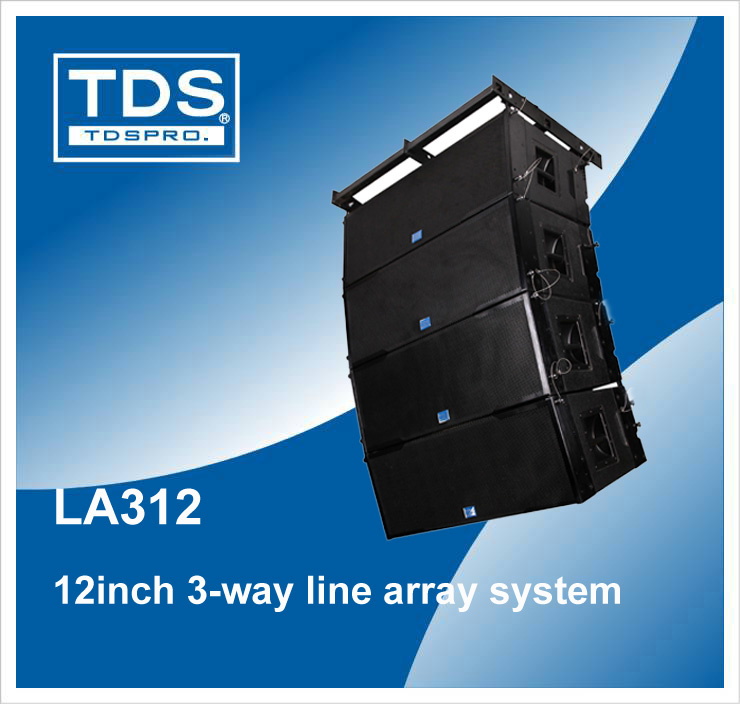

Concert Sound System LA312 With Two Units High SPL 12inch LF Transducer For Line Array Speaker Box
The LA312--dual 12'' line array is designed to deliver high quality sound reinforcement of full-range frequencies for live music and a variety of applications. Typical uses include convert audio and multi-media presentations of all types. The LA312 is a rugged, lightweight centrally vented enclosure housing two high quality 12'' woofers. The two advanced components provide high output capabilities with an advantageous power-to-weight ratio. Compact enclosure convenient for fixed and mobile usage. The rigging hardware made from premium-grade alloy aluminum which greatly assures the suspension safety.
Features
Dual12inch three-way line array system.
Three units neodymium compression driver with 44mm voice coil.
High efficiency 6.5inch neodymium MF transducer.
Fast installation rigging system.
More choices for vertical coverage angle.
Applications
Large scale indoor & outdoor performance
Fixed installation in stadium, theatre etc.
Large scale mobile performance.
| Outdoor Line Array System |
TECHNICAL SPECIFICATION
|
| Frequency Range(-10dB) | 40Hz -- 20KHz |
| Frequency Response(± 3dB) | 60Hz -- 18KHz |
| Horizontal Coverage Angle(-6dB) | 90° |
| Vertical Coverage Angle(-6dB) | 10° |
| System Input Power Rating | LF: 800W Continuous. 1600W Peak |
| MF: 300W Continuous. 600W Peak |
| HF: 180W Continuous. 360W Peak |
| Maximum Peak Output | 139dB |
| Recommended Amplification | LF: 1200W into 8 ohms |
| MF: 800W into 8 ohms |
| HF: 600W into 8 ohms |
PHYSICAL DATA |
| Dimensions (W x H x D) | 1120 x 390 x 500mm |
| Weight (net) | 56 kg |
| Connectors | 2 x NL8MP Neutrik Speakon Connectors |
| Cabinet Material | 18mm birch plywood |
