| Prod Model: |
RSM-M12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Rtc |
| Model: |
Rsm-100 |
| Radio Brand: |
Motorola |
| Radio Model: |
SL4000/SL4010/SL7550 |
| Application: |
Voice |
| Signal Transmission: |
Wired |
| Directivity: |
Omni-direction |
Product Description

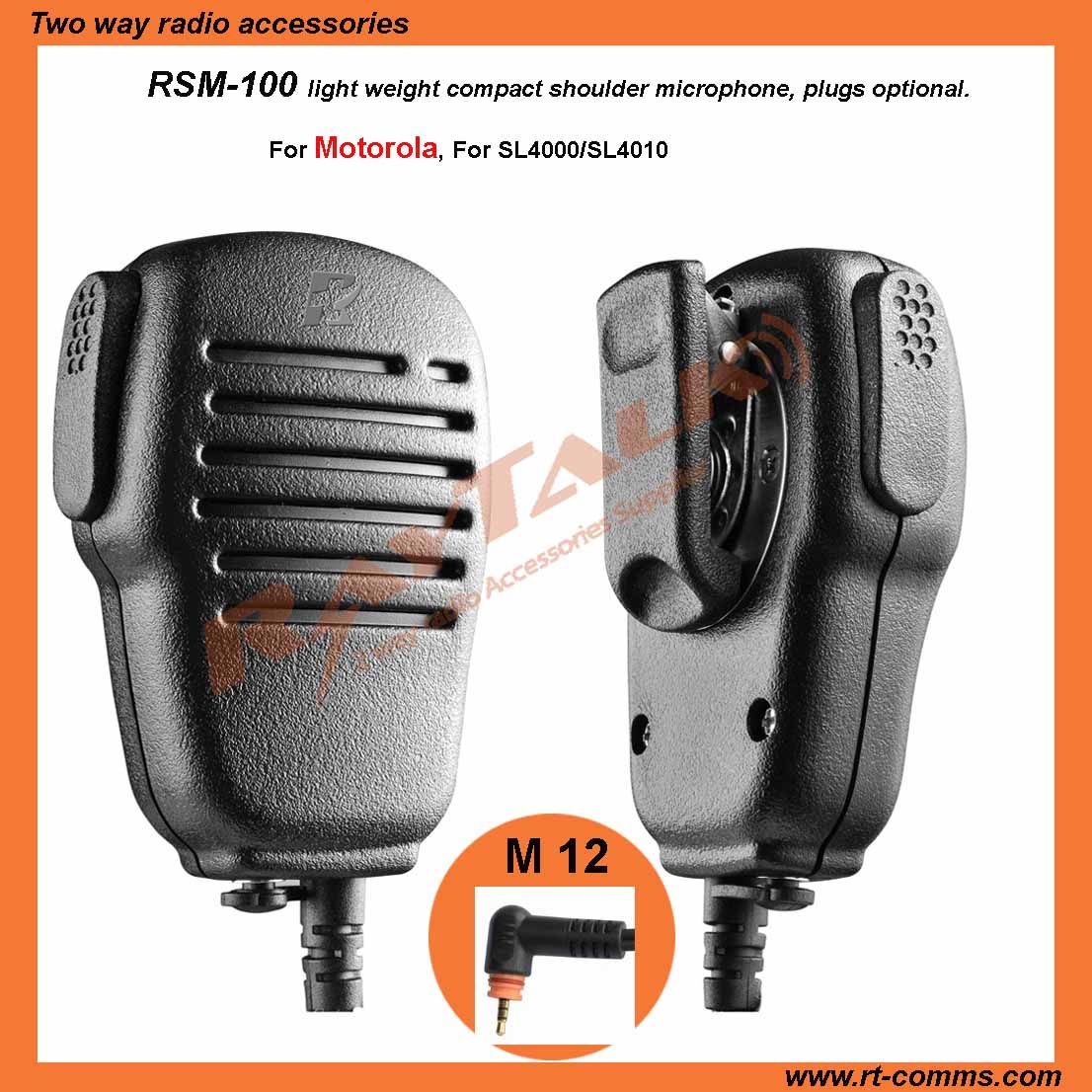

RSM-100 Remote Shoulder SPEAKER MICROPHONE for
Motorola SL4000/SL4010/SL7550
Robust, slim-line, lightweight traditional lapel worn speaker/microphone.
High quality audio reproduction with the option to fit an earphone via the 3.5mm socket.
Kevlar lined for added strength and longevity
Water resistant with a 8 way robust metal clothing clip and extremely durable coil cable.
Microphone Specifications
Dimension: Ø 9.7 X 6.5mm
Sensitivity: -40 ± 3dB
Direction: Omnidirectional
Output Impedance: 2.2K Ω
Current Consumption: 500A
Working Voltage: 1.5V
Audio Response: 50Hz 10kHz
Speaker Specifications
Dimension: Ø 36mm
Impedance: 8 Ω ± 15%
Output Sound Pressure Level: 80± 3dB
Power Rating: Normal. 05W
Maximum 1W
Frequency Range: 280Hz-6kHz average
SPL-10dB
Cable Specifications
Cable Diameter: Ø 3.8mm
Cable Length: 45cm 1.5m
Colour: Black
Material: Thermoplastic polyurethanes
Optional Extras
Receive only earpiece to be plugged into 3.5mm socket on the microphone
Optional connectors:
For Motorola/Kenwood/Icom/HYT/Vertex//Sepura/Tait, etc
Feature
· Professional grade
· Environmental PU cable with Kevlar™ Re-enforcement
· High quality components for superior audio
· Heavy duty strain relief
· Wind, water, impact & dust resistant
· Standard 3.5mm accessory jack
Microphone:
Sensitivity: -36dB± 3dB @ 1000Hz(0dB=1V/Pa)
Impedance: 2.2KΩ @ 1KHz
Operating Voltage" 1.1-10VDC | Speaker:
Dimensions: Φ 45mm
Impedance: 8Ω ±15% @ 1000Hz
Rated Input Power: 500mW
Sound Pressure Leavel: 103 4dB @ 1KHz
|
Your one stop source for Two way radio accessories. (Safety & Comfortable Communication)
RayTalk Communications & Technology was established in 2003 as a professional manufacturer of two way radio Accessories & Aviation headsets, and has continued to provide worldwide customers with the best in two-way communications products and services/ Our team of sales, service, engineering and operations are among the most qualified and best trained in the two way radios industry.
Our products include audio accessories, headset, earpiece, surveillance kit, speaker microphone, throat microphone, batteries, battery chargers compatible with Motorola, Kenwood, Icom, HYT, Vertex/Standard, GME, Unider and Tait products.
RayTalk has delivered comprehensive, dependable, and cost-effective solutions to meet the demands of our clients and on site support service tailored to the specifications and budgets of our clients. OEM & ODM are also welcome, our teams of experts work closely with customers and listen to your opinions with an aim to create products that suits your requirements.
At RayTalk, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction. With the skill, range of service, stability and resources, we believe we can become your long-term communications partner.
