| Prod Model: |
S1A-6001D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Dimension: |
43mm(L)*36(W)*3.3(H)Mm |
| Nand Flash Chips: |
Original and Good Die (SLC/MLC/Tlc) |
| Usage: |
Regular Consumption |
| Type: |
CF Card |
| Memory Card Application: |
Digital Camera |
| Card Slots: |
Single |
| Installation: |
External |
| Speed Grade: |
Class 10 |
| Reader Port Type: |
USB |
| Capacity: |
Customized |
Product Description

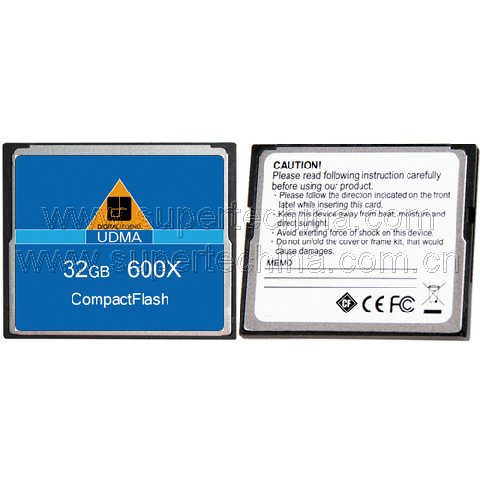

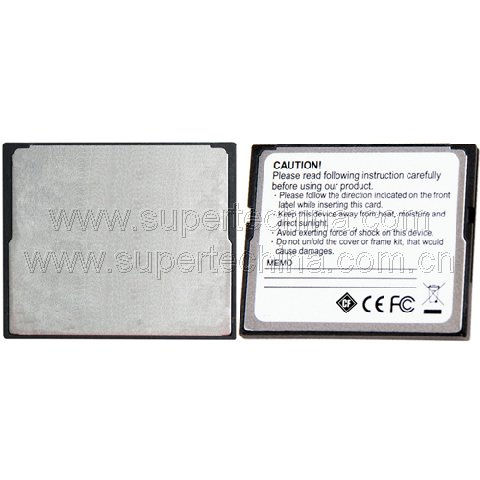

CF card/Compact flash cardSpecification:Capacity:
64MB/128MB/256MB/512MB/1GB/2GB/4GB/8GB/16GB/32GB/64GB/128GB/256GBCompliant with Compact Flash specification
Compatible with standard CF socket device
Connector pin: 50 pins
Support UDMA
Operating Modes:
--PC Card Memory Mode
--PC Card I/ O Mode
--True-IDE Mode
Non-volatile solid-state
Support firmware ISP(in system programming) function, firmware upgradeable
Compatibility: Digital cameras, digital video cameras, digital MP3 music players, smart phones, PDAs, computers, notebooks, card readers and others that use compact flash compliant slot
Technique parameters:Humidity: 8% to 95%, non-condensing
MTBF: >1, 000, 000 hours
Low Power Consumption (<50mA)
Clock speed: 20Mhz max
Durability: Minimum 10, 000 insertion/removal cycles
Voltage range for operating: 2.7~3.6V
Storage temperature: -40° C - 85° C
Operating temperature: -25° C - 85° C
Variable clock rate: 0~25MHz
Vibration: 15Gs peak-to-peak Max
Shock: 1, 000g/Max
| Certificate: | CE, FCC, ROHS |
| Quality warranty term: | 5 years |
| Payment term: | 30% deposit and balance before shipment or irrevocable LC at sight |
| Time of delivery: | 5-15 days upon confirming the sample |
| Port of delivery: | Shanghai, H.K., Shenzhen |
