| Prod Model: |
S1A-7501D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Grade: |
Industrial |
| Dimension: |
43mm(L)*36(W)*3.3(H)Mm |
| Nand Flash Chips: |
Original and Good Die (SLC) |
| Temperature: |
Extended |
| Type: |
CF Card |
| Card Slots: |
Single |
| Installation: |
External |
| Reader Port Type: |
USB |
| Capacity: |
Customized |
| Memory Card Application: |
Industry Machines |
| Speed Grade: |
Customized |
Product Description

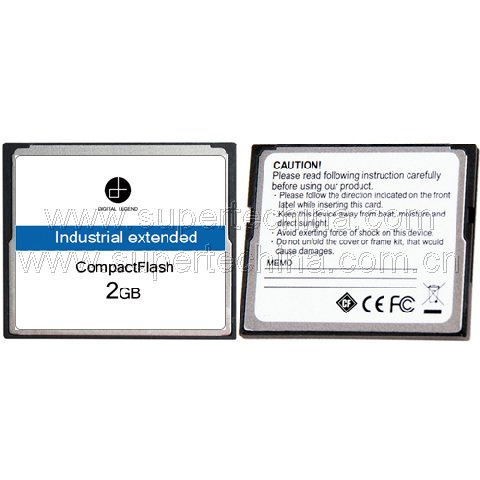

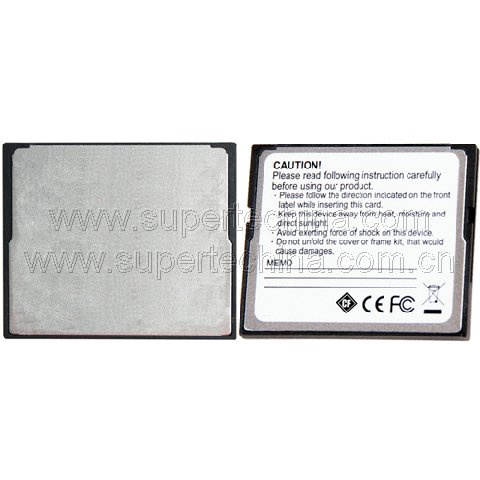

Industrial extended CF card/Industrial extended compact flash cardSpecification:Industrial special material to keep cards to work best in extremely cold and hot working temperature
Data and files in industrial extended cards well protected in extremely cold and hot temperature
SLC or MLC original flash chips
Strong compatibility controllers and solution
Industrial production procedure
Severe quality control and serious testing requiredCapacity: 64MB/128MB/256MB/512MB/1GB/2GB/4GB/8GB/16GB/32GB/64GB/128GB/256GB
Compliant with Compact Flash specification
Compatible with standard CF socket device
Connector pin: 50 pins
Support UDMA
Operating Modes:
--PC Card Memory Mode
--PC Card I/ O Mode
--True-IDE Mode
Non-volatile solid-state Support firmware ISP(in system programming) function, firmware upgradeable
Compatibility: Digital cameras, digital video cameras, digital MP3 music players, smart phones, PDAs, computers, notebooks, card readers and others that use compact flash compliant slot
Technique parameters:Humidity: 8% to 95%, non-condensing
MTBF: >1, 000, 000 hours
Low Power Consumption (<50mA)
Clock speed: 20Mhz max
Durability: Minimum 10, 000 insertion/removal cycles
Voltage range for operating: 2.7~3.6V
Storage temperature: -40° C - 85° C
Operating temperature: -25° C - 85° C
Variable clock rate: 0~25MHz
Vibration: 15Gs peak-to-peak
Max Shock: 1, 000g/Max
| Certificate: | CE, FCC, ROHS |
| Quality warranty term: | 5 years |
| Payment term: | 30% deposit and balance before shipment or irrevocable LC at sight |
| Time of delivery: | 5-15 days upon confirming the sample |
| Port of delivery: | Shanghai, H.K., Shenzhen |
