| Prod Model: |
KFS35-N-JR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Air Source Heat Pump |
| Compressor: |
Copeland Scroll |
| Refrigerant: |
R407c |
| Ambient Temperature: |
-7 to 43 Degree Celsius |
| Heat Exchanger: |
Tube in Shell |
| Cabinet: |
Stainless Steel |
| Max Outlet Water Temperature: |
60 Degree Celsius |
| Fan Discharging: |
Vertical |
| Power Supply: |
220V-240V/380V |
| Use: |
Floor Heating/Heater/Water Heater |
| Heat Source: |
Air-source |
| Certification: |
RoHS |
| Work Environment: |
Common Heat Pump |
| Heat Temperature: |
50-70??C |
| Application: |
Beauty Salons |
Product Description

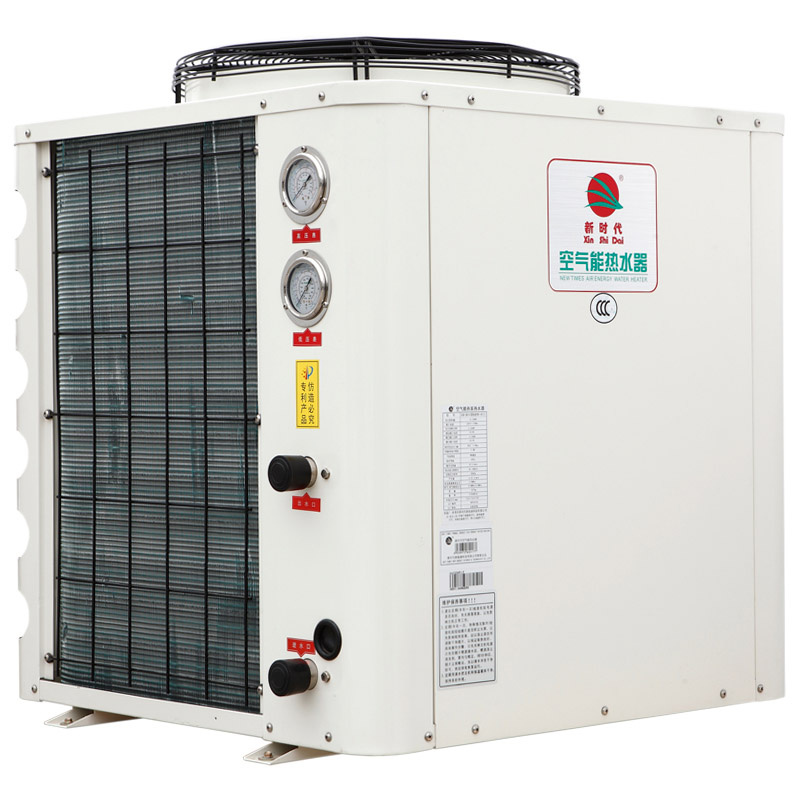

Commercial use air source instant heat pump water heater
Features
Eco-friendly, save energy & cost
Refrigerant R407C/R410A or R22 available
Powder coated cabinet for attractive and economical
Base frame and external panels made of galvanized powder coated steel
Low noise & vibration
Accurate and stable throttling function
Famous America Copeland Compressor
Stable water flow
Special modular system design
COP up to 4.5
All weather running
Automatic defrosting & desludging function
Easy to install & maintain
Anti-corrosion & durable
|
Model |
|
KFS10-N-JR |
KFS20-N-JR |
KFS35-N-JR |
KFS45-N-JR |
KFS55-N-JR |
KFS70-N-JR |
KFS90-N-JR |
|
Heating capacity |
kW |
11.2 |
18 |
36.3 |
43.7 |
54.4 |
69.8 |
87.4 |
|
COP |
|
4.67 |
4.62 |
4.65 |
4.62 |
4.69 |
4.58 |
4.64 |
|
Rated Heated water output |
L/h |
241 |
387 |
780 |
939 |
1169 |
1500 |
1879 |
|
Rated outlet water temp. |
Celsius degree |
55 |
|
Max outlet water temp |
Celsius degree |
60 |
|
Rated power input |
kw |
2.4 |
3.9 |
7.8 |
9.45 |
11.6 |
15.23 |
18.85 |
|
Rated current |
A |
10.9 |
7.41 |
14.81 |
17.94 |
22.03 |
28.92 |
32.1 |
|
Power supply |
V/Hz/Ph |
220V/50Hz/1Ph |
380V/50Hz/3Ph |
|
Compressor type |
|
Scroll |
|
Number of Compressors |
|
1 |
1 |
2 |
2 |
2 |
2 |
2 |
|
Heat exchanger type |
|
High efficiency tube in tube heat exchanger |
|
Throttling device |
|
Emerson thermal expansion valve |
|
Fan type |
|
Low noise high efficiency axial type |
|
Fan discharging |
|
Vertical |
|
Fan quantity |
|
1 |
1 |
2 |
2 |
2 |
2 |
2 |
|
Fan input |
W |
140 |
250 |
250 |
250 |
550 |
750 |
750 |
|
Fan speed |
RPM |
850 |
880 |
880 |
880 |
910 |
940 |
940 |
|
Ambient temperature |
Celsius degree |
(-10~43) |
|
Refrigerant |
|
R22/R407C |
|
Noise in 1 meter distance |
dB |
59 |
62 |
63 |
63 |
66 |
68 |
68 |
|
Water pipe size |
inch |
R1 |
R1 |
R1-1/2 |
R1-1/2 |
Rc2 |
Rc2-1/2 |
Rc2-1/2 |
|
Cabinet |
|
Stainless Steel/galvanized powder coated steel |
|
Low pressure protection system |
|
Yes |
|
High pressure protection system |
|
Yes |
|
Water flow switch |
|
No |
|
Automatic defrosting system |
|
Yes |
|
Product Dimensions |
mm |
710/710/795 |
810/810/995 |
1450/705/1375 |
1450/705/1375 |
1445/850/1850 |
1990/980/2045 |
1990/980/2045 |
|
Product Net weight |
kg |
99 |
137 |
276 |
305 |
380 |
552 |
586 |
