| Prod Model: |
hy-55p |
| Control: |
Electric |
| Power: |
200W-400W |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Application: |
Commercial |
| Condensing Mode: |
Air-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Ice Shape: |
Cube |
Product Description
We are ice machine factory, Our machine features better than other manufacturers:
1.304# stainless steel plate and thickness with 0.6mm. looks luxury, generouros , sanitary and anti-corrosive.
2 The back / water inlet has a concave, can flush against the wall, does not affect the heat.
3. More than one export outlet, fast heat dissipation less power consumption, energy can be saved 15%+ , eg, 1000P/454kg ice making machine, the power of other machine is 2300W+, our factory is 1860W.
4.No complain and Zero repair rate since 2011 year, did not send any replace part outside.
5.Had got ISO-9001,CE,ROHS and PSE certificates.

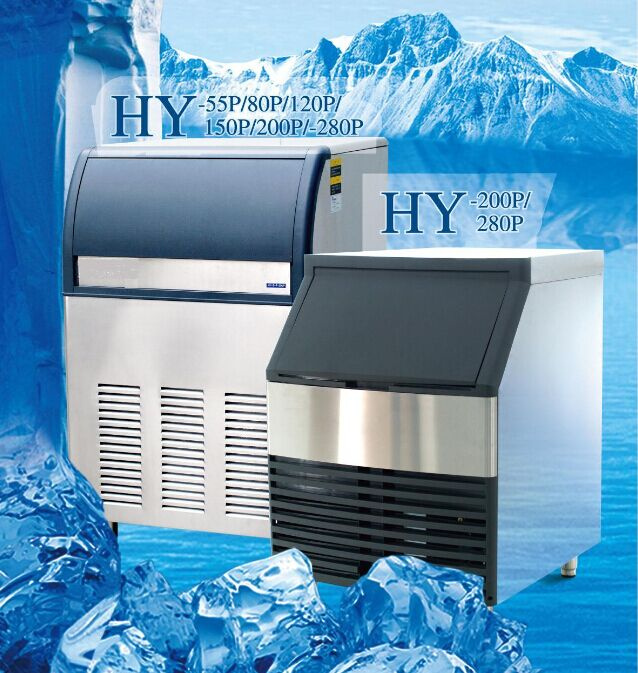

Ice cube machine with fan condensing unit
(Danfoss compressor,EBM fan motor and pump) |
| COO | Model
No. | | product size
(L*W*Hmm) | Output/
storage | Voltage/
Frequency | Power(W) | Gas |
| China | HY-55P | | 430*520*860 | 25/15kgs | 220v/50Hz | 320W | R134a/R22 |
| China | HY-80P | | 430*520*860 | 36/15kgs | 220v/50Hz | 380W | R134a/R22 |
| China | HY-120P | | 530*570*860 | 54/26kgs | 220v/50Hz | 400W | R134a/R22 |
| China | HY-150P | | 530*570*860 | 68/26kgs | 220v/50Hz | 420W | R134a/R22 |
| China | HY-200P | | 680*630*1050 | 90/45kgs | 220v/50Hz | 600W | R134a/R22 |
| China | HY-280P | | 680*630*1050 | 126/45kgs | 220v/50Hz | 650W | R134a/R22 |
Ice cube machine seperate engine ,with fan/water condensing unit
(Aspera/Tecuma compressor,EBM fan motor and pump) |
| China | HY-300P | | 560*830*1520 | 136/150kgs | 220v/50Hz | 750W | R134a/R22 |
| China | HY-400P | | 560*830*1520 | 181/150kgs | 220v/50Hz | | R134a/R22 |
| China | HY-500P | | 760*830*1650 | 227/250kgs | 220v/50Hz | 1180W | R134a/R22 |
| China | HY-600P | | 760*830*1650 | 272/250kgs | 220v/50Hz | | R134a/R22 |
| China | HY-700P | | 760*830*1770 | 318/250kgs | 220v/50Hz | 1350W | R134a/R22 |
| China | HY-800P | | 760*830*1770 | 363/250kgs | 220v/50Hz | | R134a/R22 |
| China | HY-1000P | | 760*830*1900 | 454/250kgs | 220v/50Hz | 1860W | R134a/R22 |
| China | HY-1500P | | 1230*930*1910 | 681/480kgs | 220v/50Hz | 2800W | R134a/R22 |
| China | HY-2000P | | 1230*930*2040 | 910/480kgs | 380v/50Hz | 3680W | R134a/R22 |
Ice cube is pure, hard, compact, crystal clear and slow melting.
Its fast chilling action and slow dilution make drinks taste better and greatly enhance drink appeal and quality.
Ice making cycle are regulated by PCB board.
An easily cleanable air filter at back of unit.
Recessed front panel On/Off switch.
Ice ready time:12~16 mintues / shift
Ice falling time:2 mintues / shift.
Guangzhou yixue Refrigeration Equipment company was founded in 2014. This new company was born to build the ice cube making machine, and also to help some friends' factories for exporting. Each factory is focused on one or two products, which is only through wholesale and distribution and they already have good reputation in China domestic market.
In this year, with some experienced international sales help, YXFRIDGE(the brand of yixue commercial company) was set up. We will bring you a very competitive products and best service.
