| Prod Model: |
CS068B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Backlight: |
LED |
| Brightness: |
250CD/M2 |
| Color Standard: |
PAL/NTSC Auto |
| Screen Ratio: |
4:3 |
| Resolution: |
960(H)*234(V) |
| View Angle: |
U: 50/D: 70 L/R: 70 |
| Backlight Source: |
LED |
| Power Supply: |
DC24V±20% |
| Color System: |
PAL/NTSC Auto |
| Power Consumption: |
Less Than 5W |
| Definition: |
420TVL |
Product Description
Specifications

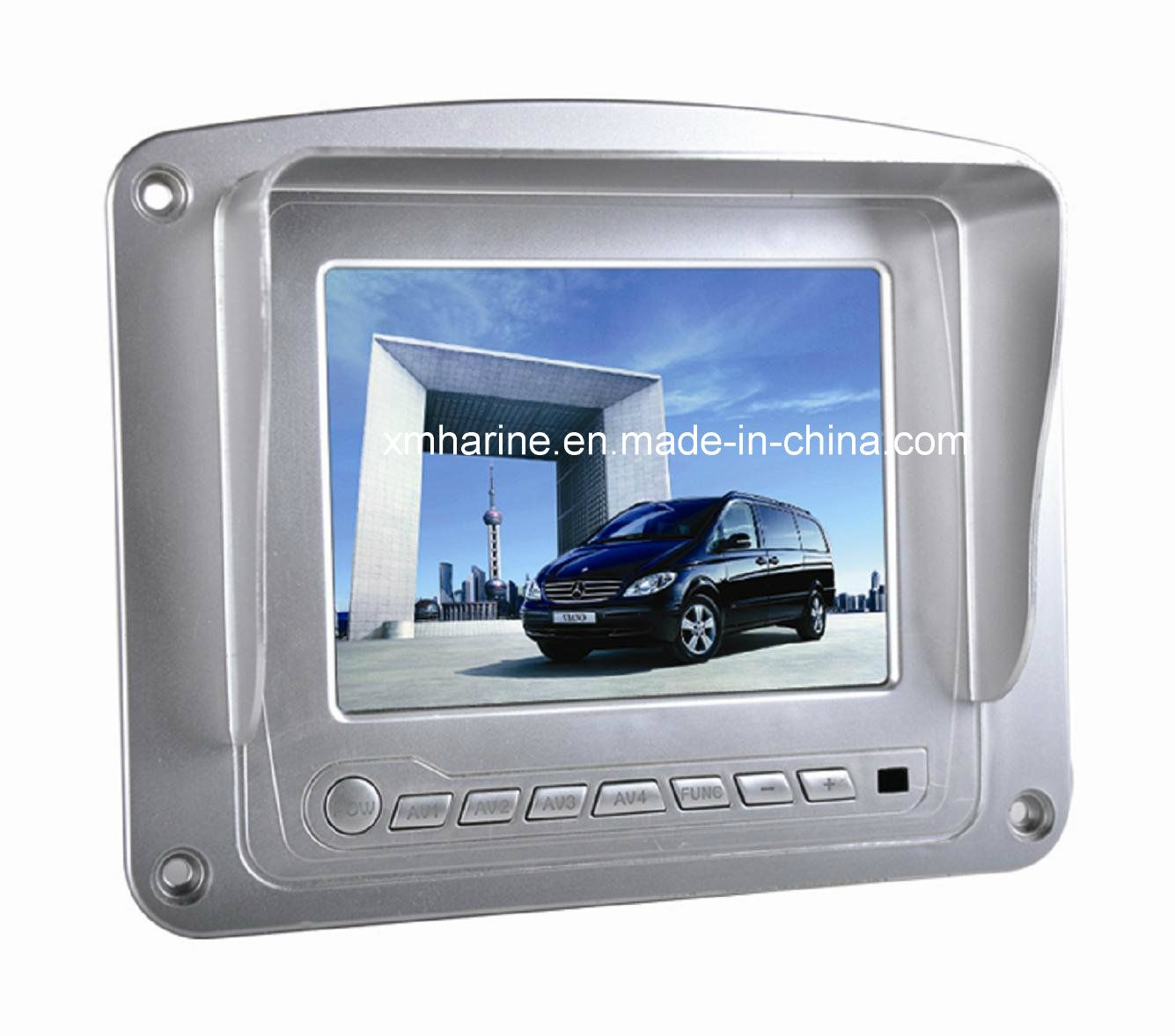

CM068B 5.6"TFT LCD Monitor
Screen Size: 5.6"
Screen Ratio: 4:3
Resolution: 960(H)×234(V)
Contrast: 300:1
Brightness:250cd/m2
View Angle: U: 50/D: 70 L/R: 70
Backlight Source: LED
Color System: PAL/NTSC Auto
Power Supply: DC24V±20%
Storage Temperature:-30~85°C
Power Consumption: less than 5W
Dimension: L195xW158xH105.5mm
Net Weight : about 580g
Standard Fitting:
1.Bracket
2.Remote controller
3.DC24V to DC12V adapter
4. Cable
5.User manual
Feature:
1.3-CH video input(4CH- max)
2.Automatically switch to the rear-view camera when reversing
3.Brightness, contrast and chroma can be adjusted by key-press
4.Wide range of power supply
5.Isolated power supply,hight anti-interference
6.Vehicle disturb shielding line and RS765-4plug for signal transmit |
Our company information :
Founded in 2007 ,Xiamen Harine Electronics Co.,Ltd has become a professional designer and manufacturer of vehicular electronics products . Harine has passed the ISO9001- 2008 quality system certification and product certification and has been assessed as a national Hi-tech enterprise which specialized in design , production and sales of vehicular LCD&LED monitor , vehicular audio& video system, rear view system and so on .
With advantage of long-period experience in vehicular products, powerful R&D team, good team sense and efficient and effective production, Harine selles the products to all over the world and has been approved to be the first choice in the field.
Presently, our factory covers an area of 3.000 square meters, has about 200 employees and 50 million RMB turnover in 2012.
We firmly believe that quality comes the first. Most of our products has been CE, FCC, Certificated or E-mark approved.
