COB 64X128 Graphic LCD Display

Prod Model:	YB12864CD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Format:	128X64 Dots
Outline Dimension:	78*70*12.5mm
Visual Area:	62*44 Mm
Active Area:	56.27*38.35mm
Diagonal Size:	3.0 Inch
IC Package:	COB
IC Or Equivalent:	Ks0107/S6b0107/Sbn6400 or Eqv
Appearance:	Blue/Yellow Green/Grey
Power Supply(Typ):	3.3V/5V
Backlight Current (Typ):	75mA
Type:	LCM
Usage:	Small-sized LCM
LCD Drive Mode:	Static Drive LCD Module
Digital LCD Module Type:	Counting Module
Display Technology:	COB
Response Time:	2ms
Customized:	Customized

Product Description

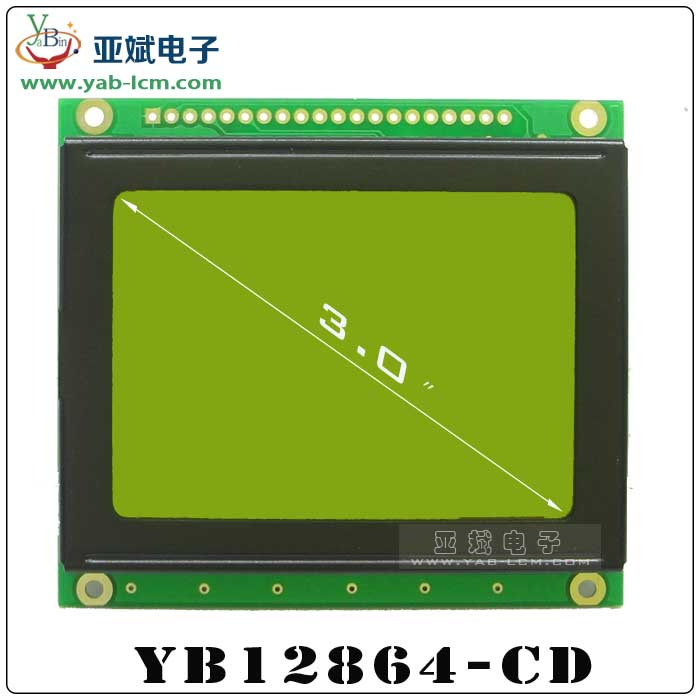

COB 64x128 graphic lcd display


1.Product Description

Manufacturer	YaBin
Series Number	YB12864CD
Display Format	128x64 Dots
Outline Dimension	78*70*12.5mm
Visual Area	62*44 mm
Active Area	56.27*38.35mm
Diagonal Size	3.0'
Dot (Pixel) Size	0.39*0.55mm
Dot (Pixel) Pitch	0.44*0.6mm
IC Package	COB
IC or Equivalent	KS0107/S6B0107/SBN6400 or EQV
Interface	6800 8-bit Parallel
Interface	Parallel
Display Type	STN/FSTN
Sunlight Readable	No
Touch Panel Optional	No
Contrast Ratio(Typ)	No
Viewing Direction	6:00
LED Backlight Color	Blue /Yellow Green /Gray
Appearance	White on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)	5V
Backlight Current (Typ)	75mA
Operating Temp	-20ºC~70ºC
Storage Temperature	-30ºC~80ºC
If accept customized	Yes
RoHS Compliance	Yes

2.Interface pin connection:

ITEM	SYMBOL	LEVEL	FUNCTIONS
1	VSS	0V	Power Ground
2	VDD	+5V	Power Supply For Logic
3	V0	-	Contrast Adjust
4	RS	H/L	H:Data  L:Command
5	R/W	H/L	H:Read  L:Write
6	E	H,H->L	Enable Signal
7-14	DB0-DB7	H/L	Data Bus
15	CS1	H or L	Chip Selection IC1(H:H1__ or L:L1__)
16	CS2	H or L	Chip Selection IC2(H:H2__ or L:L2__)
17	/RST	L	Reset Signal
18	VOUT	-	Output Voltage for LCD Driving
19	LEDA	+5V	Power Supply For LED Backlight
20	LEDK	0V
