| Prod Model: |
CM15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Response: |
60Hz-16kHz(±3dB) 45Hz-18kHz(-10dB) |
| Nominal Cverage: |
80°(H) 80°(V) Constant Directivity |
| Sensitivity: |
100dB Spl |
| Power Rating: |
450W |
| Nominal Impedance: |
8 Ohm |
| Maximum Spl: |
128dB (Continuous) 132dB (Peak) |
| Drivers: |
Lf 1X15" Woofer Hf 1X3" Driver |
| Dimensions (Hxwxd): |
660X438X390mm |
| Weight: |
29kg |
| Service: |
OEM / ODM |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Touch Control |
| Speaker System: |
Mono |
| Speaker Material: |
Wood |
| Certification: |
SGS |
| THD: |
>0.01% |
| Application: |
Touring Performance, Stadium, Theatre |
| Monitor: |
None |
Product Description

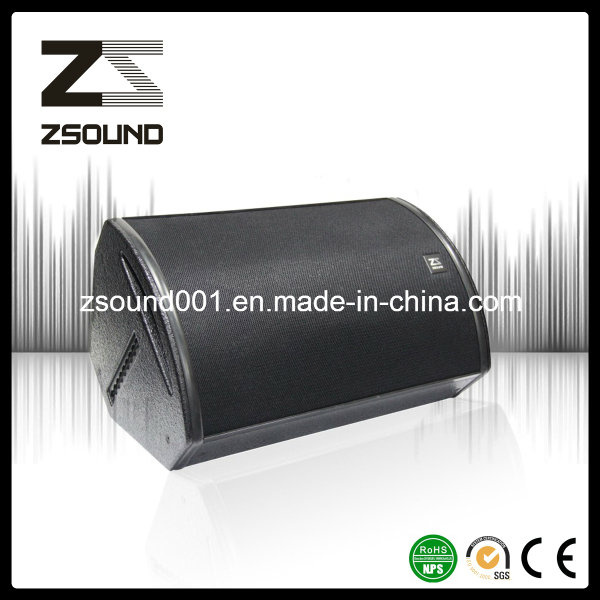

CM15 loudspeaker audio monitor system CM15 is a coaxial bi-amp vented speaker, mainly designed for all kinds of touring performances,
as well as various fixed installations. CM15 is recommended to use as front stage monitor, live band feedback,
and main speaker for small shows even big performance front fill. M15 is built-in two presets as main speaker and feedback, and needs to match M44T DSP.
The enclosure consists of a 15″ LF driver and a 75mm composite aluminum diaphragm HF compression driver.
The voice coil of LF driver is 75mm, and the speakerframe is made of aluminum. The coverage of the HF horn is 80°.
Feature:
coaxial structure to optimize directivity
monitor level frequency response, minimum squeal
75mm big neodymium HF driver
Applications:
touring performance
fold back and main speaker
| TECHNICAL SPECIFICATION |
| FREQUENCY RESPONSE: | 60 Hz ~ 16 KHz (±3 dB ) 45 Hz ~ 18 KHz (-10 dB ) |
| NOMINAL COVERAGE (-6dB): | 80°(H) 80 ° (V) Constant directivity |
| SENSITIVITY(@1w/1m): | 100dB SPL |
| POWER RATING (AES): | 450W |
| NOMINAL IMPEDANCE: | 8 Ohm |
| MAXIMUM SPL: | 126dB (continuous), 132 dB ( peak) |
| DRIVERS: | LF 1×15" (75mm voice coil) woofer HF 1×3" neodymium compression driver |
| |
| PHYSICAL DATA |
| DIMENSIONS(H x W x D): | 660 x 438 x 390mm |
| WEIGHT: | 29kg |
| CONNECTORS: | 2 x NL4MP Neutrik Speakon connectors |
| SPEAKER CABLES: | 1+1- |
| MATERIALS: | 18mm,24mm birch plywood |
| FINISH: | Black water paint |
| GRILLE: | Black epoxy mesh grille with acoustically reticulated foam |
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock.
10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accpeted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
Our advantages:
1) global leading professional manufacturer of professional speaker and amplifier
2) product quality: superior speaker and amplifier, top technology and quality

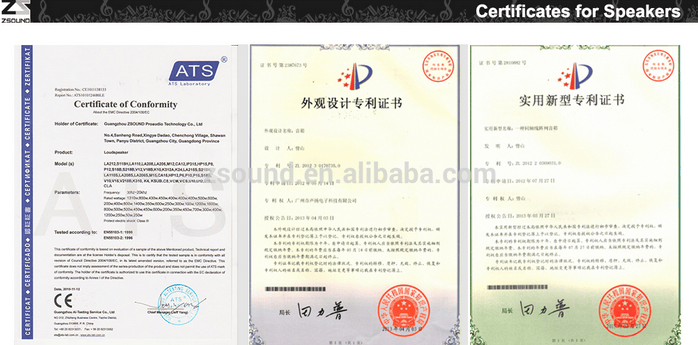

3) certificate: CE, RoHS, GS,SGS,ISO9001
