Guangzhou Zsound Proaudio Technology Co., Ltd. >> Professional Audio Speaker PA Speaker

Professional Audio Speaker PA Speaker

Professional Audio Speaker PA Speaker
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: U12
Frequency Response: 55Hz-18kHz(±3dB) 40Hz-20kHz(-10dB)
Nominal Cverage: 80°(H) 50°(V) Constant Directivity
Sensitivity: 96dB Spl
Power Rating: 400W(Continuous) 1600W(Peak) 800W(Recommended)
Nominal Impedance: 8 Ohm
Maximum Spl: 122dB(Continuous) 128dB(Peak)
Drivers: Lf 1X12" Rubber Edge Woofer Hf 1X1.75" Driver
Dimensions (Hxwxd): 602X359X363mm
Weight: 22kg
Service: OEM/ODM
Noise: <102dB
Hi-Fi: Not Hi-Fi
Operation Mode: Touch Control
Speaker System: Mono
Speaker Material: Wood
Certification: SGS
THD: >0.01%
Application: Touring Performance, Stadium, Theatre
Monitor: None

Product Description

professional audio speaker pa speaker

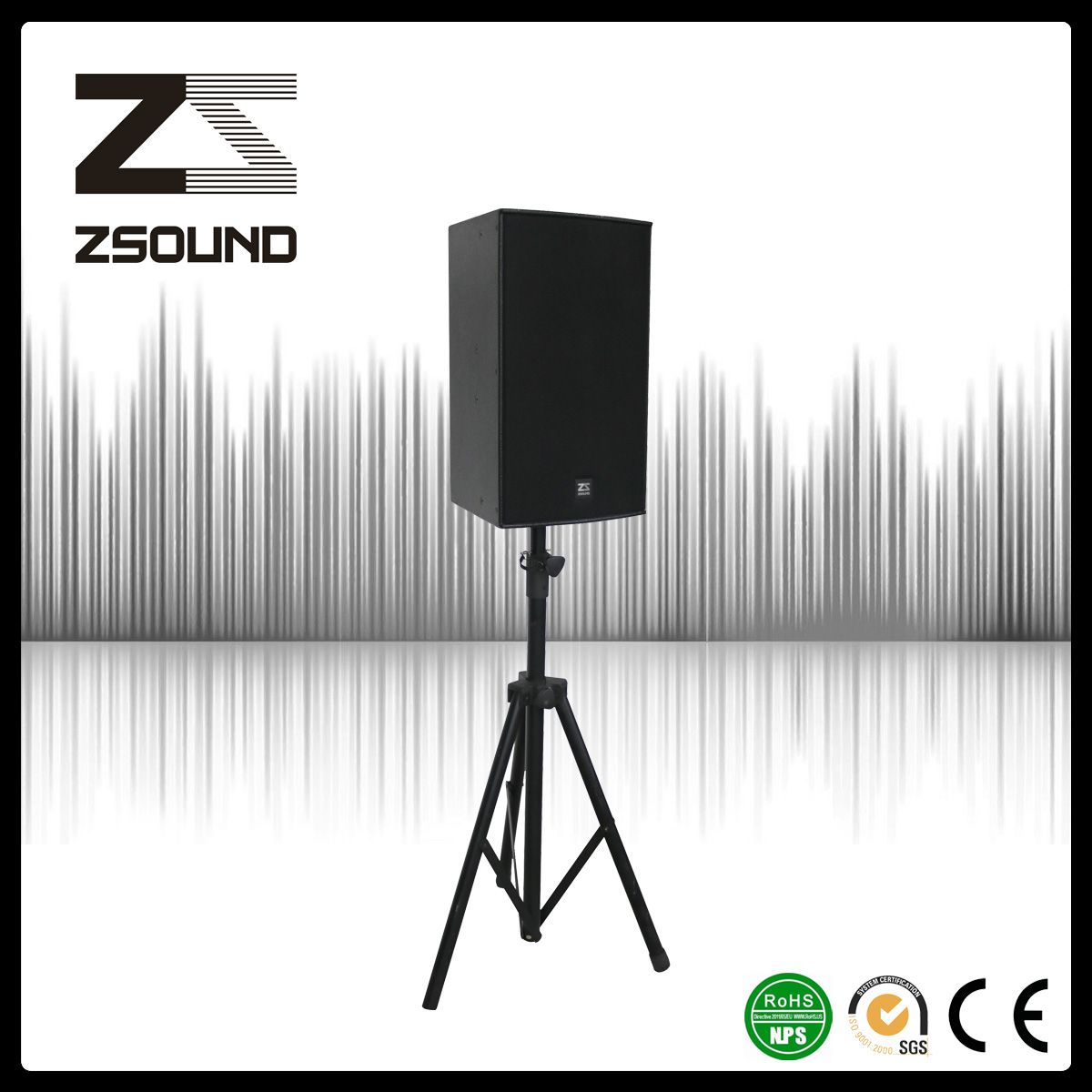

ZSOUND U12 is a medium scale two-way passive system, utilizing the latest Phase control technology,the enclosure features a 12" LF driver.

and a 1.75"(44mm voice coil) HF compression driver mounted on a constant directivity horn, with the Phase correction technology to eliminate distortion

between LF units and keep smooth frequency and Phase response.



Feature:

Elastic bass

Long stroke rubber edge LF driver

Rotatable 80*50° directivity horn



Applications:

Bar

KTV

Near-field sound


TECHNICAL SPECIFICATION
FREQUENCY RESPONSE:

55Hz-18KHz(±3dB)  40Hz-20KHz(-10dB)

NOMINAL COVERAGE(-6dB):80° (H) 50° (V) Constant directivity
SENSITIVITY (@1w/1m):96dB SPL
POWER RATING(AES):400W(Continuous) 1600W(speak) 800w(Recommended amplifier power)
NOMINAL IMPEDANCE: 8 Ohm
MAXIMUM SPL:122dB (continuous) 128dB(Peak)
DRIVERS:

LF 1 x 12"woofer(75mm voice coil) rubber edge woofer

HF 1×1.75"  (44mm voice coil)   compression driver


PHYSICAL DATA
DIMENSIONS (H x W x D):602 x 359 x 363mm
WEIGHT:22kg
CONNECTORS:2 x NL4MP Neutrik  connectors
SPEAKER CABLES:1+1-
MATERIALS:18mm  multiply-plywood
FINISH:Black water paint
GRILLE:Black epoxy mesh grille acoustically reticulated foam







Our advantages:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.

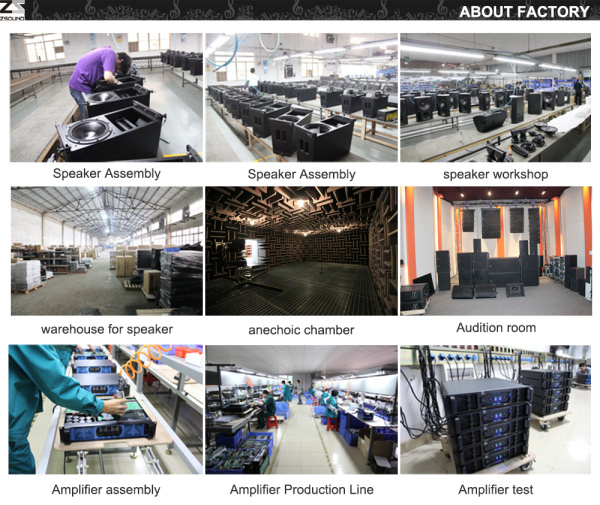

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.



Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.

Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.

During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.

What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance

In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.

After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.

Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
