| Prod Model: |
TD series |
| Application: |
Applicable to a Variety of High-End Entertainment |
| Price: |
Please Contact Us for Prices |
| Channel: |
2 Channel |
| OEM Order: |
Acceptable |
| Type: |
Professional Amplifier |
| Usage: |
Conference Engineering, Performance, Meeting Room |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Sound Channel: |
2 |
| Output Number: |
2 |
Product Description

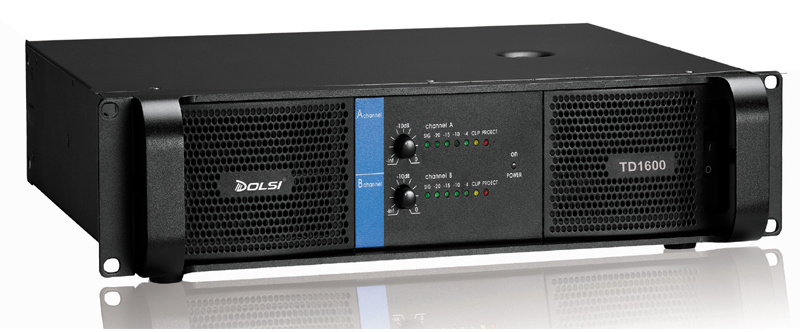

Double Channel 260W to 1600W at 8 Ohms Professional Power Amplifier
Specification:
Model No. | TD260 | TD360 | TD450 | TD600 | TD800 | TD1300 | TD1600 |
| Height | 2 U | 2 U | 2 U | 2 U | 2 U | 2 U | 3 U |
| Out put category | Class AB | Class AB | Class TD | Class TD | Class TD | Class TD | Class TD |
| Output power under stereo mode 8Ω | 260Wx2 | 350Wx2 | 450Wx2 | 600Wx2 | 800Wx2 | 1300Wx2 | 1600Wx2 |
| Output power under stereo mode 4Ω | 400Wx2 | 500Wx2 | 700Wx2 | 1000Wx2 | 1300Wx2 | 2000Wx2 | 2300Wx2 |
| Output power under stereo mode 2Ω | NA | NA | NA | 1500Wx2 | 1800Wx2 | 2400Wx2 | 2800Wx2 |
| Bridging output power 8Ω | NA | NA | NA | 1800W | 2600W | 4000W | 4600W |
| Bridging output power 4Ω | NA | NA | NA | 2500W | 3600W | 4800W | 5200W |
| Input sensitivity | 0.775V/1.0V/1.4V | 23dB,26dB,29dB,32dB,35dB,38dB,41dB,44dB |
| Frenquency response | 20-20000Hz(±0.3dB) |
| Slew rate | ≥30V/us |
| Damping factor | ≥400:1≥600:1 |
| Cross talk | >70dB@1KHz |
| S/N | >100dB |
| THD+N | <0.1%,1KHz |
| IMD | <0.2%8Ω,1KHz@1W |
| Dimensions (WxHxD)mm | 483x88x442 483x88x462 | 483x88x462 | 483x132x463 |
Product Features:New CLASS TD cores design and traditional transformer power supply. Transparent clear sound in mid-high frequency and deep low frequency, solving the problem of traditional amplifier with good low frequency but bad mid-frequency and switch supply amplifier with good mid-high frequency but bad low frequency. Major features as the following:
1. Unique and reasonable inside layout, full of sense of science and technology.
2. Small volume, light weight, high efficiency, nice sound quality.
3. Quality components, smart and full scale electronic circuit high-speed protection.
4. Mechanical and automatic process of AI, SMD, PEAK, BACK-FLOW ensure an excellent consistency.
5. Quality radiation fin in ribbon shape with shovel teeth, achieving a higher heat dissipation effect.
6. Applicable to a variety of music applications.
Product packing: Each piece of product with polyfoam protection packed into a paper carton. Or packed as per client's request.
Good Service to you:1. Manufacturing with Dolsi brand.
2. Manufacturing with your brand ( OEM).
3. Manufacturing with your design, your specification and your brand ( ODM).
4. Closely following up, fluent communication, quick feedback and action to any of your query or request for sampling, order, production,shipment, documents and after-sales service.
Any inquiry, pls contact
Ms. May Liang
Tel: 0086 20 36751499
Our brand, Dolsi, is similar in pronunciation of Chinese Pinyin "douniushi" which means matador. The matador, originating from Spain, is famous all over the world with perfect combination of confidence, art and power.
With over ten years of experience in the audio field, Dolsi Audio is a manufacturer focusing in research, development and manufacturing of high quality audio equipment, including professional power amplifier, speaker, and other audio peripheral products.
Starting from traditional analog circuit, after hard working of our senior Engineers, Dolsi developed over ten series of amplifiers covering classic analog technology, high efficiency TD electric circuit, digital amplification and professional audio system. Co-operation with famous suppliers America ON, Japan Toshiba and SANKEN ensures our advantage of technology updating and product reliability.
Understanding well the demand to audio equipment performance from the clients, Dolsi engineers configures product functions with various structures and features based on different applications to make variety of products widely used in MID to high level applications.
Quality is our business life. Dolsi product passed CCC, CB, CE and RoHS certification. We always stick to quality first, customer supremacy and service success. Believing only the better, no the best, Dolsi is in progress due to the feedback of clients.
Product quality is our life and progress relies on. DOLSI audio products passed CCC, CB and CE certification.
We understand well about the real demand to the performance of audio equipment from different types of applications. Dolsi engineers configures the functions with different structure and feature based on different applications, coming out variety of product series widely used in MID to high level entertainment places, theatre, stadium, outdoor performance, nightclub, indoor show, bar saloon and multiple-function hall.
Dolsi always sticks to philosophy of quality first, customer supremacy and service success. Believing only the better, not the best, Dolsi is in progress with every client's feedback.
Dolsi products have been sold all over the world. OEM production made for several famous brands. In the future, we will return the society with better products and service. Every client, thanks for your support and rely on us!
