| Prod Model: |
CA Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Price: |
Please Contact Us to Discuss Prices. |
| Height: |
3 Unit |
| Output At 8 Ohm: |
600W, 1000W, 1200W, 1400W |
| OEM Order: |
Acceptable |
| MOQ: |
1 |
| Type: |
Professional Amplifier |
| Usage: |
Live Work, Stadium, Performance, Show |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2 Channel |
| Output Number: |
2 Output |
| Conductive Mode: |
Class-H |
Product Description

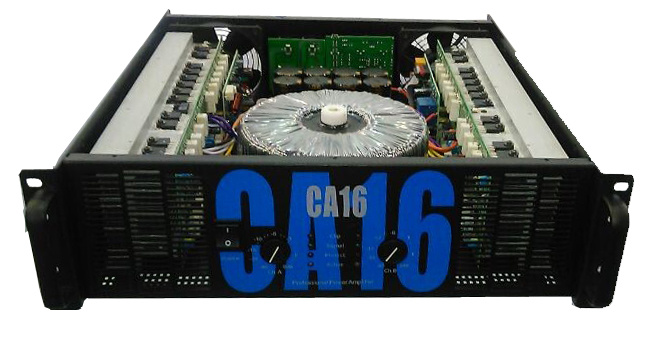

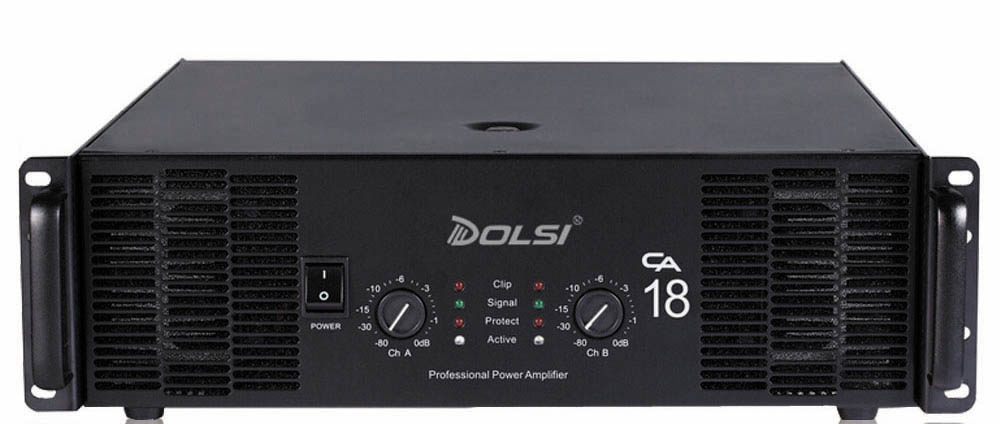

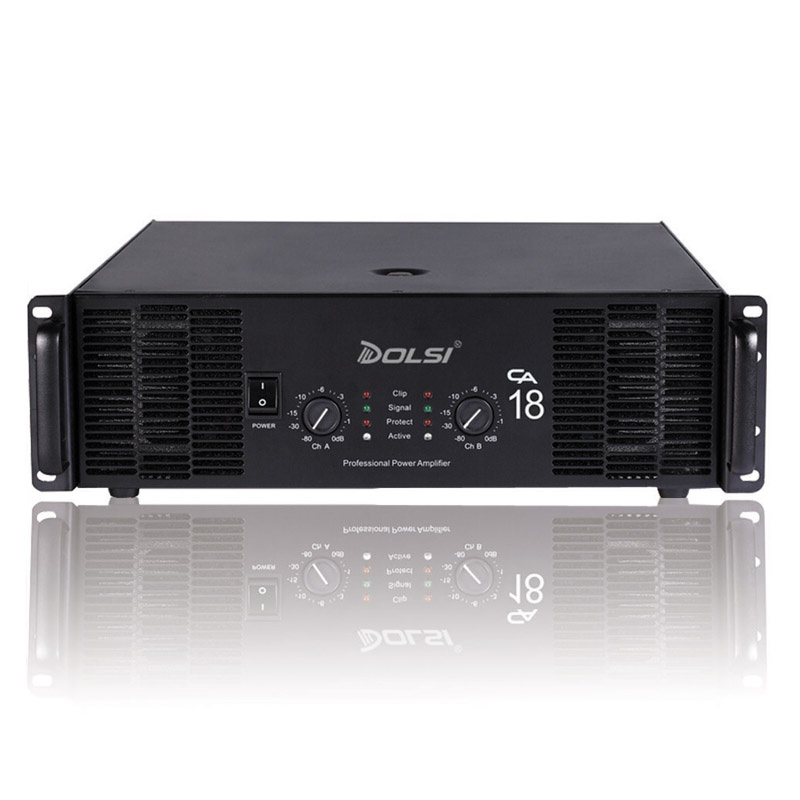

High Power Double Channel 3U 600W to 1400W CA Series Power Amplifier
Specifictions:
Model No. | CA12 | CA16 | CA18 | CA20 |
| Input/output channel | 2 | 2 | 2 | 2 |
| Output category | CLASS H | CLASS H | CLASS H | CLASS H |
| Output power under stereo mode | 8Ω | 600Wx2 | 1000Wx2 | 1200Wx2 | 1400Wx2 |
| Output power under stereo mode | 4Ω | 1000Wx2 | 1500Wx2 | 1800Wx2 | 2000Wx2 |
| Quntity of power transistors | | 44pcs | 52pcs | 52pcs |
| Input sensitivity | 0db(0.775V rms)/1.4V/26dB |
| Frenquency response | 20-20000Hz(±0.3dB) |
| Input impedence | 30KΩ (equilibrium/stereo),15KΩ (Non equilibrium/parallel) |
| Slew rate | ≥12V/us |
| Damping factor | ≥300 |
| Cross talk | >60dB@1KHz |
| S/N | >100dB |
| THD+N | <0.3%1KHz 8Ω@1W |
| IMD | <0.5%,8Ω@1W |
| Dimensions (WxHxD) | 492x148x545mm |
Product Highlights:1.Cover the height of 3U.
2.High power output.
3.Faster response, higher damping and more advanced protection system.Excellent heat dissipation air duct way design, compact and solid mechanical seismic performance, excellent components.
4.Withstand bridge load 4Ω, suitable for drive to linear array speaker system.
5.Be suitable for large flow performance, band performances, DISCO, nightclubs and other occasions.
6.More powerful, stronger bass!
Product packing: Each piece packed in polyfoam protection before it packed into a paper carton. Or packed as per client's request.
Good Service to you:1. Manufacturing with Dolsi brand.
2. Manufacturing with your brand ( OEM).
3. Manufacturing with your design, your specification and your brand ( ODM).
4. Closely following up, fluent communication, quick feedback and action to any of your query or request for sampling, order, production,shipment, documents and after-sales service.
Any inquiry, pls contact
Ms. May Liang
Tel: 0086 20 36751499
Our brand, Dolsi, is similar in pronunciation of Chinese Pinyin "douniushi" which means matador. The matador, originating from Spain, is famous all over the world with perfect combination of confidence, art and power.
With over ten years of experience in the audio field, Dolsi Audio is a manufacturer focusing in research, development and manufacturing of high quality audio equipment, including professional power amplifier, speaker, and other audio peripheral products.
Starting from traditional analog circuit, after hard working of our senior Engineers, Dolsi developed over ten series of amplifiers covering classic analog technology, high efficiency TD electric circuit, digital amplification and professional audio system. Co-operation with famous suppliers America ON, Japan Toshiba and SANKEN ensures our advantage of technology updating and product reliability.
Understanding well the demand to audio equipment performance from the clients, Dolsi engineers configures product functions with various structures and features based on different applications to make variety of products widely used in MID to high level applications.
Quality is our business life. Dolsi product passed CCC, CB, CE and RoHS certification. We always stick to quality first, customer supremacy and service success. Believing only the better, no the best, Dolsi is in progress due to the feedback of clients.
Product quality is our life and progress relies on. DOLSI audio products passed CCC, CB and CE certification.
We understand well about the real demand to the performance of audio equipment from different types of applications. Dolsi engineers configures the functions with different structure and feature based on different applications, coming out variety of product series widely used in MID to high level entertainment places, theatre, stadium, outdoor performance, nightclub, indoor show, bar saloon and multiple-function hall.
Dolsi always sticks to philosophy of quality first, customer supremacy and service success. Believing only the better, not the best, Dolsi is in progress with every client's feedback.
Dolsi products have been sold all over the world. OEM production made for several famous brands. In the future, we will return the society with better products and service. Every client, thanks for your support and rely on us!
