| Prod Model: |
CA20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Connectors: |
3 Pin-XLR/RCA/Trs |
| Amplifier Protection: |
DC/Short/Temp/VHF/Limit/Softstar |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Sound Channel: |
2.1 |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
H |
Product Description
Product Description

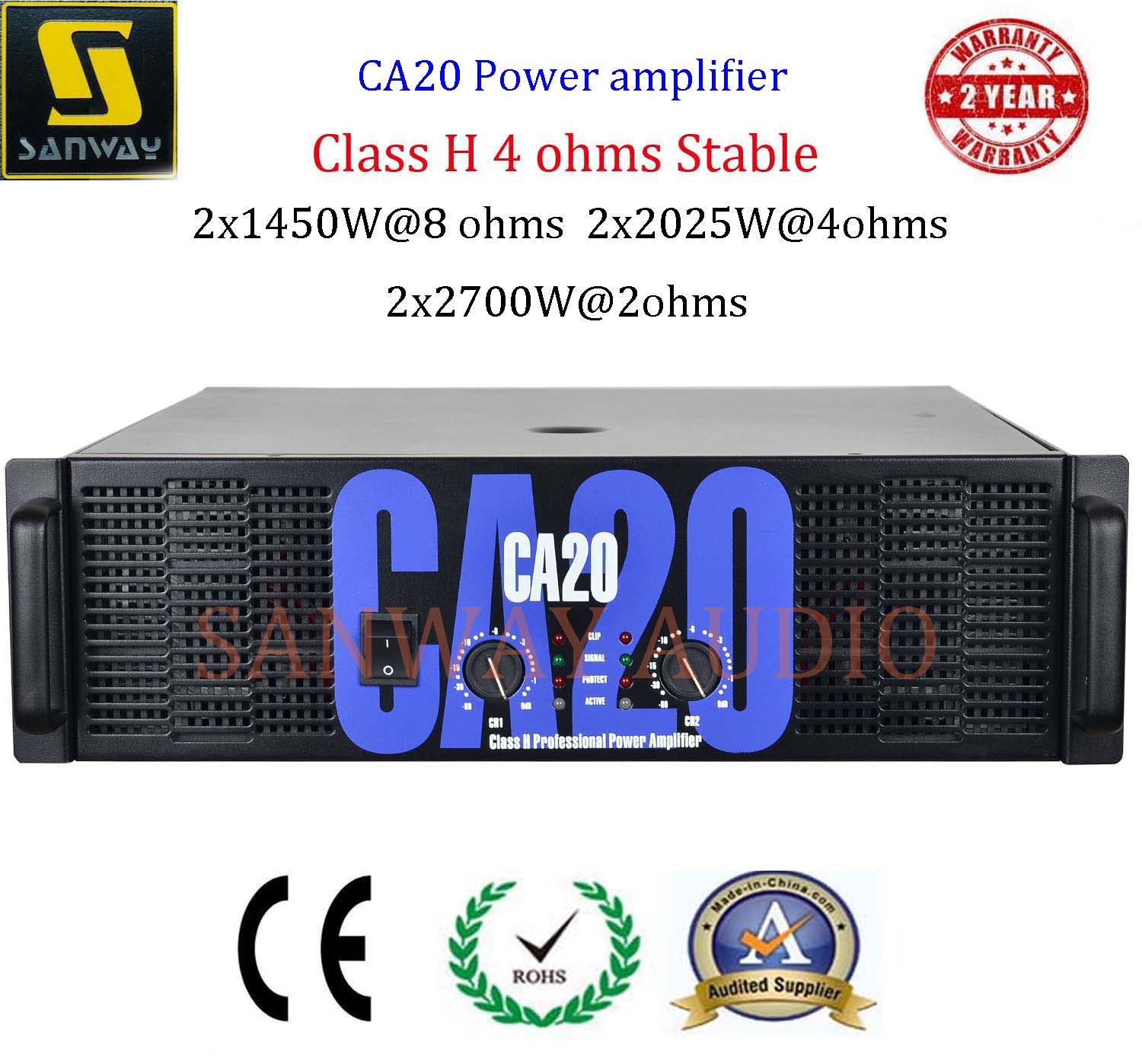

CA20 2015 Class H 4 ohms Stable Power Amplifier
CA Series amplifiers are widely used in touring and fixed installations. Parking TourClass protection settings, including ACL, IGM, AutoRamp and other touring protection indication. ACL (ActiveClipLimting) dynamic peak limiter function to prevent the square wave impulse into the speaker, but the actual full-band protection, every time you turn the amplifier or restart AutoRamp automatic attenuation of the amplifier to be protected.
IGM (InstantaneousGainModulation) to ensure that the amplifier can be freely competent 2Ω load; other protection includes thermal protection, DC protection, short circuit protection, surge protection and switching transient protection. In order to make sound engineering system into the ranks of computer control, our CA series is designed specifically to NEXSYS computer control system, control model through the development of a dedicated terminal input socket inside the Octagon. After using TRS input jack, SPEAKON connector for output.
|
|
|
|
|
| Model | CA18 | CA20 | CA28 | CA30 |
| 8 ohm power | 1250Wx2 | 1450Wx2 | 1600WX2 | 1800WX2 |
| 4 ohm power | 1725Wx2 | 2025Wx2 | 2400wx2 | 2700wx2 |
| 2 ohm power | 2300Wx2 | 2700Wx2 | 3600wx2 | 4050wx2 |
| power(Bridge Mono Mode) |
|
|
|
|
| 8 ohm power | 3450w | 4050w | 4800w | 5000w |
| 4 ohm power | 4600w | 5400w | 6400w | 6700w |
| Frequency response (8 ohm) |
|
|
|
| Other specification |
|
|
|
|
| S/N Rate | 80dB | 80dB | 80dB | 80dB |
| THD+N(8OHM 1KHZ IN 1/4 OUTPUT) | 0.05% | 0.05% | 0.05% | 0.05% |
| Damping Factor(8 Ohm 1 K) | 500 | 500 | 500 | 500 |
| Slew Rate | 20V/us | 20V/us | 20V/us | 20V/us |
| Input Sensitivity | 0.775v/1.0v/1.4v |
| Output topology | 3 Steps Class H |
| Connectors&Protection |
|
|
|
|
| Input Connectors | 3 pin-XLR/RCA/TRS |
| Output Connectors | SEPAKON&TOUCH-PROOF BINDING POSTS |
| Amplifier Protection | Dc/Short46kg/Temp/VHF/Limit/Softstar |
| Dimension(CM) | 3U:67.5x57x19cm |
| Weight | 43kg | 45kg | 47kg |
