| Prod Model: |
CT-8010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensitivity: |
0.7V/1.0V/1.4V |
| Circuit: |
Class H |
| Filter: |
30Hz High Pass |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Usage: |
Stage,Club,Project,Sports Field |
| Sound Channel: |
2 |
| Voltage: |
90V-220V |
| Conductive Mode: |
H |
Product Description

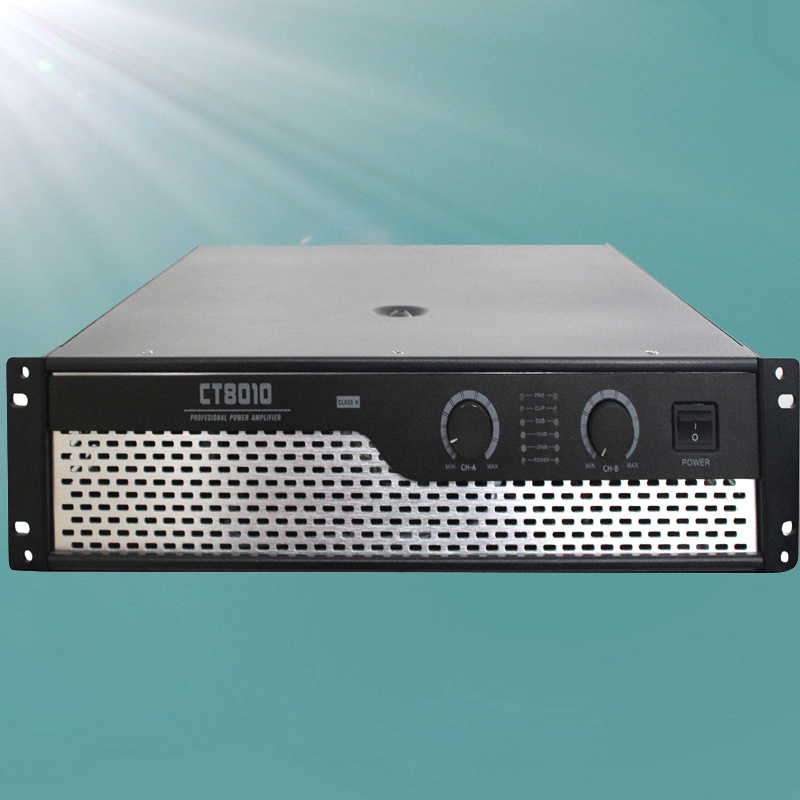

Class H 1000W*2 PRO Power Professional Amplifier(CT-8010)
Technical data & Introduction:
Maximun Output
2*1000W, 8 ohm
2 *1500W, 4 ohm
Frequency Range: 20Hz-20KHz +-0.5dB
Signal to Noise ratio: 96 dB
Input Sensitivity: 0.7V/1.0V/1.4V
THD < 0.1%
Input impedance: 47KΩ
Consuption Power: 4500W
Machine Dimensions: 690W×435D× 120(mm)H
Advantage:
1)Input Sensitivity is 0.7V/1V/1.4V,so it can change the sensitivity as you need.
2)Class H circuit.
3)Adopt SMT technology,it will little mistake in the amplifier when producing.
4)The transistor is ON Semiconductor transisitor.
5)DC protection,Overload protection,Overheat protection,Short circuit protection,Soft start,
6)We have passed CE,CE-LVD,ISO9001,FCC,ROHS.
Pictures as follows:
Suit for :
1) Arena and stage
2)Convention Centers
3)Medium or large Ballrooms
4)conference rooms
5)Theaters Music
6)Club or Church
7)Concert and music group
MODEL | CT-8012 | CT-8010 | CT-8008 | CT-8006 | CT-8004 |
| Rated output power 8 Ω | 1200W × 2 | 1000W × 2 | 800W × 2 | 600W × 2 | 400W × 2 |
| Rated output power 4 Ω | 1800W × 2 | 1500W × 2 | 1300W × 2 | 900W × 2 | 600W × 2 |
| Frequency response | 20HZ-20KHZ ( +0, -0.5dB ) |
| Signal-to-noise ratio | 98dB | 96dB | 96dB | 95dB | 92dB |
| Input sensitivity | 0.7V/1.0/V1.4V | 0.7V/1.0/V1.4V | 0.7V/1.0/V1.4 | 0.7V/1.0/V1.4V | 0.7V/1.0/V1.4V |
| THD | ≤ 0.08% | ≤ 0.08% | ≤ 0.08% | ≤ 0.08% | ≤ 0.08% |
| Input impedance | 47K Ω | 47K Ω | 47K Ω | 47K Ω | 47K Ω |
| Supply Rated output pawer | 5400w | 4500W | 3900W | 2700W | 2100W |
| Exchange insurance | 25A | 20A | 15A | 10A | 8A |
| Net weight | 29.5KG | 27KG | 25KG | 21KG | 19KG |
| Package size mm | 690W*435D*120H 480W × 490D × 110H mm |
| Package Package size mm | 740W*590D*193H 600W × 580D × 190H mm
|
