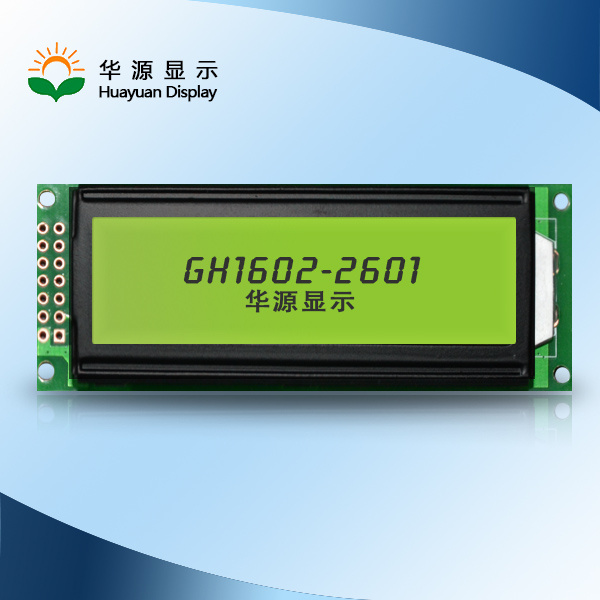

| Prod Model: |
GH1602-2601 |
| Screen Size: |
2.6"(Diagonal) |
| Display Color: |
Display Color:Black; Background Color:Yellow Green |
| Display Type: |
Stn |
| Viewing Direction: |
6 O'clock |
| Operating Temperature (Degree Celsius): |
-20 to 70 Degree Centigrade |
| Storage Temperature (Degree Celsius): |
-30 to 80 Degree Centigrade |
| DOT Matrix: |
16X2 |
| Viewing Area: |
64.3 X 16.3mm |
| Active Area: |
55.46 X 10.76mm |
| Outline Dimension: |
90.0 X 31.0 X 9.6mm Max. |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Type: |
Character |
| Response Time: |
5ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Touch Screen Type: |
No Touch |
Product Description
Specification:
| Screen size | 2.6"(Diagonal) |
| Display color | Display color:Black
Background color:Yellow Green |
| Type | STN |
| View angle direction | 6'clock |
| Driver mode | 1/64 DUTY 1/9 BIAS |
| Backlight | LED |
| Controller IC | 7066/7065 |
| Data bus | 8 bit |
| Temperature range | Operation:-20 oC ---- +70oC
Storage:-30 oC ---- +80oC |
| Number of Dots | 16 x 2 |
| Dot size | 0.54 x 0.52mm |
| Dot pitch | 0.64 x 0.62mm |
| Viewing size | 64.3 x 16.3mm |
| Active area | 55.46 x 10.76mm |
| Outline dimension | 90.0 x 31.0 x 9.6mm Max. |
Our Service:
Contact Us: Send inquiry for us to get newest quotation & information.
Tel: +86-731-28668968
Fax: +86-731-28660280
Mobile: +86-18998985555
How to place an order? We could produce according to customer's request.
Step1.Send us your original drawing, samples or photos. If you don't have these information, just tell us your idea.
Step2.According to your details, we will give you some advise and competitive price.
Step3.After confirm the technical datas, we will send you exact quotation.
Step4.Arrange the tooling charge from your side.(If it is costomerized product)
Step5.We will send you the final drawing and wait for your confirmation.
Step6.We will make new samples within two weeks for you to test.
Step7.After samples confirmed and we get your deposit, we will run the mass production.
Step8.We will send products to the port once get your balance.
We sincerely hope to establish a long-term business relationship with your company.
If you have any questions or queries, please do not hesitate to contact us.
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
