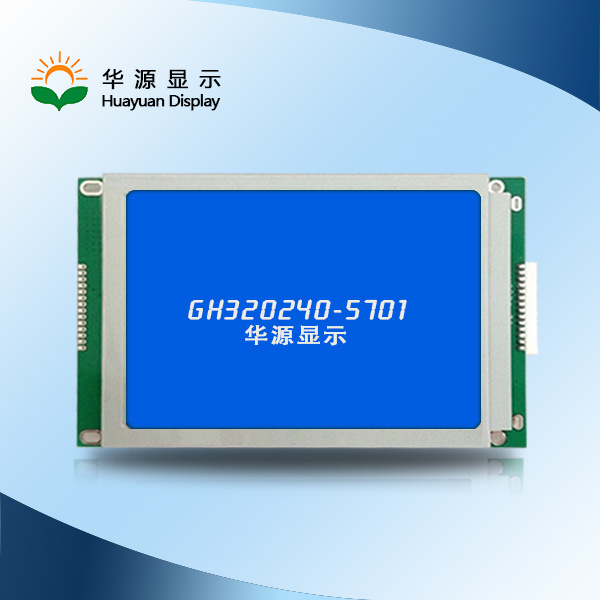

| Prod Model: |
GH320240-5701 |
| Display Color: |
Display Color:White ; Background Color:Blue |
| View Direction: |
12'clock |
| Driver Mode: |
1/240 Duty 1/16 Bias |
| Driver IC: |
Ist3025t Ist3026t or Nt7701, Nt7702 |
| Data Bus: |
8080 Interface and 8-Bit |
| DOT Size: |
0.33 X 0.33 mm |
| DOT Pitch: |
0.36 X 0.36 mm |
| Viewing Size: |
122.0 X 92.0 mm |
| Active Area: |
115.17 X 86.37 mm |
| Outline Dimension: |
166.75 X 109.0 X10.6 mm Max |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Type: |
Graphic |
| Response Time: |
5ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Touch Screen Type: |
No Touch |
Product Description
Specification:
| Screen size | 5.7"(Diagonal) |
| Display color | Display color:White ; Background color:Blue |
| Type | STN |
| Viewangle direction | 12'clock |
| Driver mode | 1/240 DUTY 1/16 BIAS |
| Backlight | LED |
| Driver IC | IST3025T IST3026T or NT7701,NT7702 |
| Data bus | 8080 interface and 8-bit |
| Temperature range | Operation:-20 oC ---- +70oC
Storage:-30 oC ---- +80oC |
| Numbr of Dots | 320x 240 |
| Dot size | 0.33 x 0.33mm |
| Dot pitch | 0.36 x 0.36mm |
| Viewing size | 122.0 x 92.0mm |
| Active area | 115.17 x 86.37mm |
| Outline dimension | 166.75 x 109.0 x10.6mm Max |
