| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Indirect Cooling |
| Usage: |
for Refrigerate |
| Power Supply: |
220V |
| Refrigerant: |
R22 |
| Certification: |
CE |
| Type: |
Evaporative Air Cooler |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Floor Standing |
| Condition: |
New |
Product Description
Specifications
*High effiency and energy saving
*Introduced Refesh air
*Intelligent control
*Cooling capacity; 16.7-76.0
Water source heat pump/heat pump/water to water heat pump
1. CE, CCC, ISO approval
2. Easy to install, low cost, low consumption
3. Enery saving
4. Coated metal and stainless steel can use for cabinet
5. Accept customer's design if large quantity
Have been tested and desighed in accordance with Europen standard

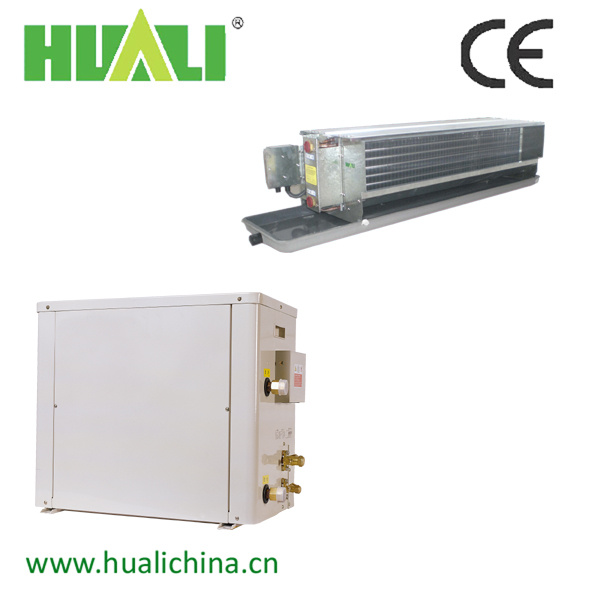

Water source heat pump/heat pump/water to water heat pump
| Model HLLS~ | 30U | 40U | 60U | 80U | 100U | 120U |
| Power supply | Indoor | 220V/ 50HZ/ 1N |
| Outdoor | 220V/ 50HZ/ 1N | 380V/ 50HZ/ 3N |
| Cooling/heating capacity | KW | 3.22/ 3.74 | 4.49/4.52 | 5.2/5.95 | 7.83/10.75 | 10.05/11.57 | 11.82/12.9 |
Input power (Cooling/heating) | KW | 0.73/0.83 | 0.94/1.03 | 1.26/1.5 | 1.98/2.35 | 2.4/2.6 | 3.17/3.37 |
Rated current (Cooling/heating) | A | 3.7/4.1 | 4.6/5 | 6.5/7.7 | 11/12.5 | 5.1/5.3 | 6.2/7 |
| Dimension: L*W*H | mm | 575×575×270 | 840×840×300 |
| Air flow volume | m 3 /h | 490 | 680 | 680 | 1220 | 1600 | 1600 |
| Indoor unit | Noise level | dB(A) | 37 | 41 | 41 | 44 | 51 | 51 |
| Unit Weight | kg | 15.00 | 17.20 | 17.20 | 34.00 | 34.00 | 34.00 |
| Dimension: L*W*H | mm | 443×645×360 | 535×678×410 |
| Water presure drop | kPa | 16 | 35 | 33 | 12 | 18 | 45 |
| Water flow | m 3 /h | 0.65 | 0.89 | 1.1 | 1.67 | 2.08 | 2.49 |
| Outdoor | In/outlet pipe | inch | 3/4" Internal thread |
| unit |
Weight (Cooling/heating) | kg | 36 | 41 | 47 | 60 | 80 | 90 |
| Noise level | dB(A) | 33 | 35 | 36 | 38 | 38 | 39 |
|
Refrigerant | Charge | kg | 490 | 580 | 710 | 1760 | 1580 | 1320 |
| Type | R22 |
| Evaporator Type | Tube in tube type heat exchanger |
| Compressor Type | Rotary | Scroll |
Pipes |
High/low pressure pipe | inch | 1/4",3/8" | 1/4",1/2" | 1/4",1/2" | 3/8",3/4" | 3/8",3/4" | 3/8",3/4" |
| In/outlet water | inch | 3/4" EXternal thread |
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
