Prod Model: |
YS2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Refrigerant: |
R410A |
Power Supply: |
308~420V |
Type: |
Floor Standing Air Conditioners |
Capacity: |
27000-48000 BTU |
Usage: |
Room |
Indoor Machine Noise: |
>50dB |
Certification: |
BEB |
China Energy Efficiency Standard: |
Level 1 |
Cooling/Heating: |
Cooling/Heating |
Power Source: |
Electrical |
Power Type: |
AC |
Condition: |
New |
Product Description

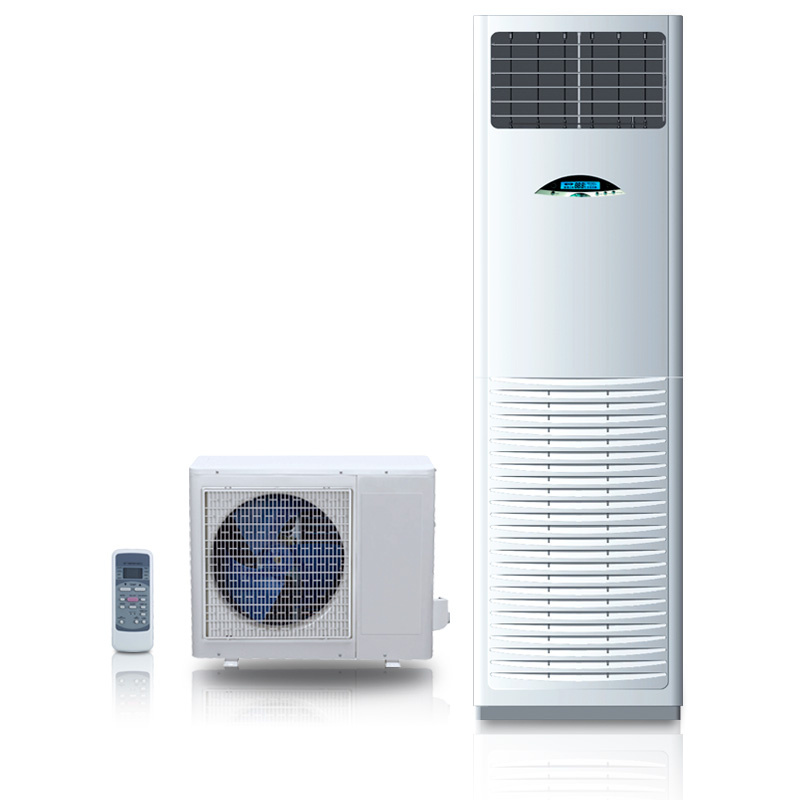

CE R410A Gas J Series Floor Standing Air Conditioner
Feature
1. R410A green refrigerant
2. Self-diagosis and auto-protection function
3. Intelligent control, easy operation
4. Sleeping mode automatic control
5. 5 years warranty for compressor, and 3 years for complete unit
6. Offer 1% free spare part of total amount
7. Used the known brand compressor with high quality
8. Sleep mode operation
Specification
Electrical Data |
|
Power supply | Ph-V-Hz | 3P,380-420V,50HZ |
Capacity | Cooling/Heating | Btu/h | 46000/49000+12000 |
Power consumption | Cooling/Heating | W | 5200/5100+3500 |
Rated current | Cooling/Heating | A | 8.6/8.5+5.6 |
EER | Cooling/Heating | Btu/w.h | 8.9/10.2 |
Max. input consumption | W | 10050 |
Max. current | A | 17.6 |
Starting current | A |
|
Thermostat type |
| Remote control |
System data |
|
|
Refrigerant type | g | R410A/4500 |
Design pressure | MPa | 4.2 |
Air flow | m3/h | 1750 |
Noise level | Indoor | dB(A) | 50 |
Outdoor | dB(A) | 62 |
Dimension&Weight |
|
Indoor | Dimension (W*H*D) | mm | 540x1825x410 |
Packing (W*H*D) | mm | 655x1935x555 |
Net/Gross weight | Kg | 58/75 |
Outdoor | Dimension (W*H*D) | mm | 940x1245x360 |
Packing (W*H*D) | mm | 1018x1380x435 |
Net/Gross weight | Kg | 104/115 |
Refrigerant piping |
|
Liquid side/ Gas side | mm | Φ12.7/Φ19 |
Max. refrigerant pipe length | m | 30 |
Max. difference in level | m | 15 |
Applicable ambient |
|
Ambient temp | °C | -7-45 |
Application area | m2 | 80-112 |
