| Prod Model: |
Y-S2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerant: |
R410A |
| Type: |
Floor Standing Air Conditioners |
| Capacity: |
48000-60000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling Only |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

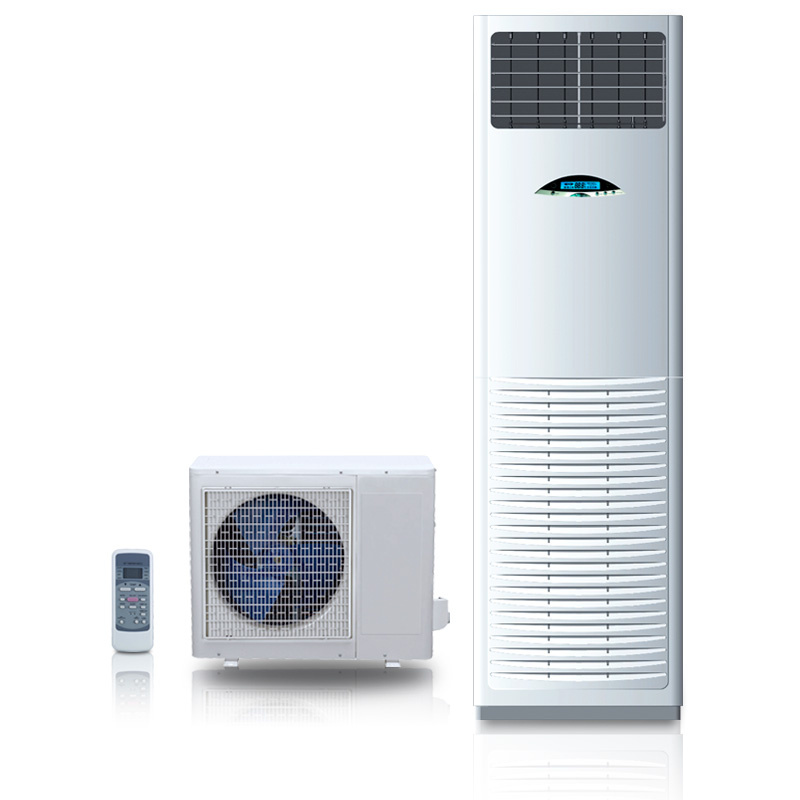

60Hz T3 48000 Btu Free Standing Air Conditioner
Feature
1. 48000 Btu cooling only floor standing air conditioner
2. Elegant panel design with led / lcd central display
3. Wide voltage display
4. Cooling or cooling nad heating are avaliable
5. Flat panel for easy cleaning, washable plastic filter and horizontal auto louver
6. T3 ambient
7. Independent de-humidifying
Specification
Power supply | Ph-V-Hz | 3Ph, 380-420V~, 60Hz |
| Cooling | Capacity | Btu/h | 48000 |
| Input | W | 5100 |
| Rated current | A | 9.0 |
| EER | W/W | 2.41 |
| Heating | Capacity | Btu/h | ----- |
| Input | W | ----- |
| Rated current | A | ----- |
| COP | W/W | ----- |
| Moisture Removal | L/h | 4.6 |
| Max. input consumption | W | 7600 |
| Max. current | A | 15.0 |
| Starting current | A | 58 |
| Compressor | Model |
| C-SB303H9A |
| Type |
| SCROLL |
| Brand |
| SANYO |
| Capacity | Btu/h | 48450 |
| Input | W | 4400 |
| Rated current(RLA) | A | 7.5 |
| Locked rotor Amp(LRA) | A | 58 |
| Thermal protector |
| ---- |
| Thermal protector position |
| INTERNAL |
| Capacitor | uF | ---- |
| Refrigerant oil/oil charge | ml | SAY56T /1700 |
| Refrigerant type | g | R22/4600g |
| Design pressure | MPa | 2.6/1.0 |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | φ12.7/φ19(1/2"/3/4") |
| Max. refrigerant pipe length | m | 30 |
| Max. difference in level | m | 10 |
| Connection wiring |
| NO |
| Plug type |
| NO |
| Thermostat type |
| Remote control |
| Operation temp | ºC | 17-30 |
| Ambient temp (cooling/heating) | ºC | 18-54/---- |
| Application area | m2 | 61-102 |
| Qty'per 20' /40' /40'HQ |
| 21/44/51 |
