| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Image Sensor: |
CCD |
| Type: |
Digital |
Product Description

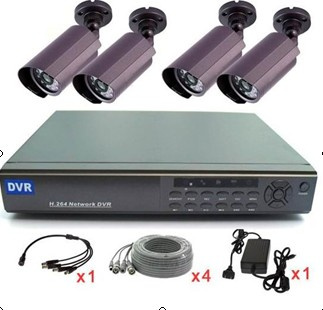

4CH CCTV home surveillance system: ELP-DVR9104-D7240F
1). 1 X H. 264 High economical standalone DVR (DVR9104).
2). 4 X 1/4 Color Sharp CCD, 420TV Line waterproof IR Camera(ELP-D7240F). IR distance: 30M
3). 4 X 20M CCTV Video power cable.
4). 1 X One power adaptor for 4 CCTV Cameras.
DVR Specifications: ELP-DVR9104
Support iPhone, Blackberry, Windows CE, Symbian mobile view
1. Video input/Output: 4CH BNC/1CH BNC
Audio Input/Output: 4CH RCA/1CH RCA
VGA Output: HD VGA output(1280X1024, 1440X990)
2. Preview resolution: PAL 704X576 NTSC: 704X480
3. Playback channel 1/4CH
4. Maximum Record frame rate:
D1 704X576 100FPS/PAL D1 704X480 120FPS/NTSC
HD1 704x288 100FPS/PAL HD1 704X240 120FPS/NTSC
CIF 352X288 100FPS/PAL CIF 352X240 120FPS/NTSC
5. Backup Device: USB2.0 Flash or network, DVD, CD
6. PTZ Control: Support
7. Network function: TCP/IP, PPPoE, DHCP, DDNS, NTP, UPNP, Email, FTP.
8. Remote Preview: IE, CMS
9. Language: Simplified Chinese, Traditional Chinese, English, Farsi, Finnish, French, German, Greek, Italian, Hungarian, Japanese, Polish, Portuguese, Russia, Spanish, Thai, Turkish, Vietnamese, Ukrainian, Romanian, Brazilian
CCTV Camera Specification: ELP-D7240F
1.1/4"color Sharp CCD, 420 TV Lines.
2.3.6/6mm lens
3.36PCS IR LED, IR distance is appro 30m
4. Sony 420TVL/480TVL/540TVL/600TVL (Optional)
5.600TVL with motion detection, wide dynamic, OSD menu...Function
