| Prod Model: |
ELP-USB100W04H-L28 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color USB Camera: |
USB 2.0 Port |
| Effective Pixels: |
1280 (H) X 720 (V) |
| UVC: |
Linux, Windows XP, Win CE, Mac, Sp2 or Above. |
| Microphone: |
Support |
| Image Sensor: |
1/4" Color CMOS Ov9712 |
| Picture Format: |
Yuy2 and Mjpeg Optional |
| Lens: |
2.8mm(2.1/3.6/ 6/8/12mm Optional) |
| IR LED: |
Optional |
| Cable: |
1m (2m/3m/5m Optiona) |
| H.264: |
Support |
| HDMI Format: |
720P |
| Effective Distance: |
0-9m |
| Sensor Size: |
1/4 inch |
| Remote Control: |
With Remote Control |
| Sensor: |
CMOS |
| Style: |
Mini Camera |
| Feature: |
Mini Size |
| Technology: |
Pan / Tilt / Zoom |
| Kind: |
Manual Focus Lens |
| Type: |
USB Camera |
Product Description

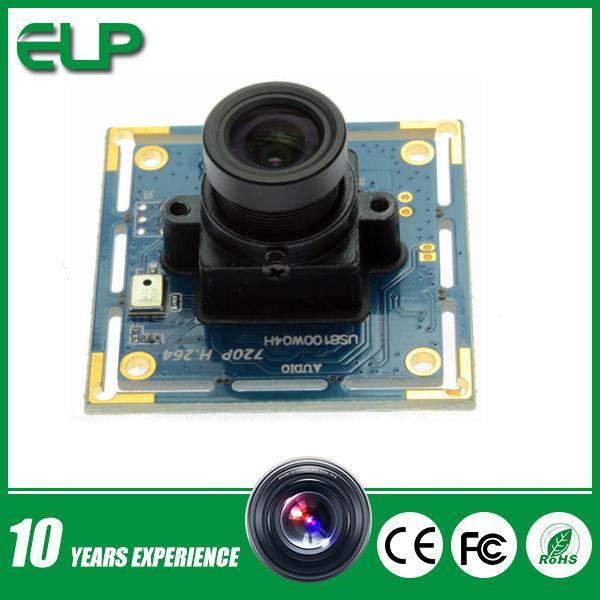

H.264, YUY2 and MJPEG 1.0megapixel usb camera module support microphone
The HD 720P USB CMOS board camera module(model: ELP-ELP-USB100W04H serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision,one of the world leaders in this field of electronics. The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Product Description:
1. High speed USB 2.0 interface, UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
2. High quality image 1Megapixel CMOS sensors OmniVision,
3. High frame rate 30fps@1280X720P resolution,
4. UVC.
Product display:
Features
*720P resolution 1280x720P
*USB interface Camera Module for Monochrome Stereo
*Android&Linux system support
*YUY and MJPEG compression format optional
*CMOS 720P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*low light performance - ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate- deliver 30 fps in 1280X720 resolution
*High quality lens, true and undistorted color image
*Low power consumption - ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Specification:
Optional models
ELP-USB100W 04H -L21(2.1mm lens)
ELP-USB100W04H -L28(2.8mm lens)
ELP-USB100W04H-L36 (3.6mm lens)
ELP-USB100W04H -L60(6mm lens)
ELP-USB100W04H-L80(8mm lens)
ELP-USB100W04H -L12(12mm lens)
Sensor
OV9712
Lens size
100W, 1.0megapixel, 1280X720
Max. Resolution
640X480 VGA
Picture format
YUY2
MJPEG
USB Protocal
USB2.0 HS/FS, USB1.1 FS
Support free driver
USB Video Class(UVC)1.1
Auto exposure AEC
Support
Auto white blance AEB
Support
Frame rate
1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps
960 (H) x 720 (V) pixels MJPEG 30fps YUY2 15fps
800 (H) x 600 (V) pixels MJPEG 30fps YUY2 20fps
640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps
Adjustable parameters
Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision
optional, can choose IR board
view angle
30-150 degree optional
voltage
DC 5V
current
150mA
work temperature
DEGREES(-20~70)
Size
32x32mm
Support OS
WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above
