| Prod Model: |
HX-X3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Language: |
Chinese / English Optional, OSD Menu |
| Channel: |
4channel, Support 1-4 Cameras |
| Storage: |
1tb HDD or 2PCS 64GB SD Card |
| Mdvr Control: |
IR Remote Control, USB Mouse |
| Video & Audio: |
Sync |
| Compression Format: |
H.264 |
| Interface: |
BNC |
| Brand: |
Comet |
Product Description

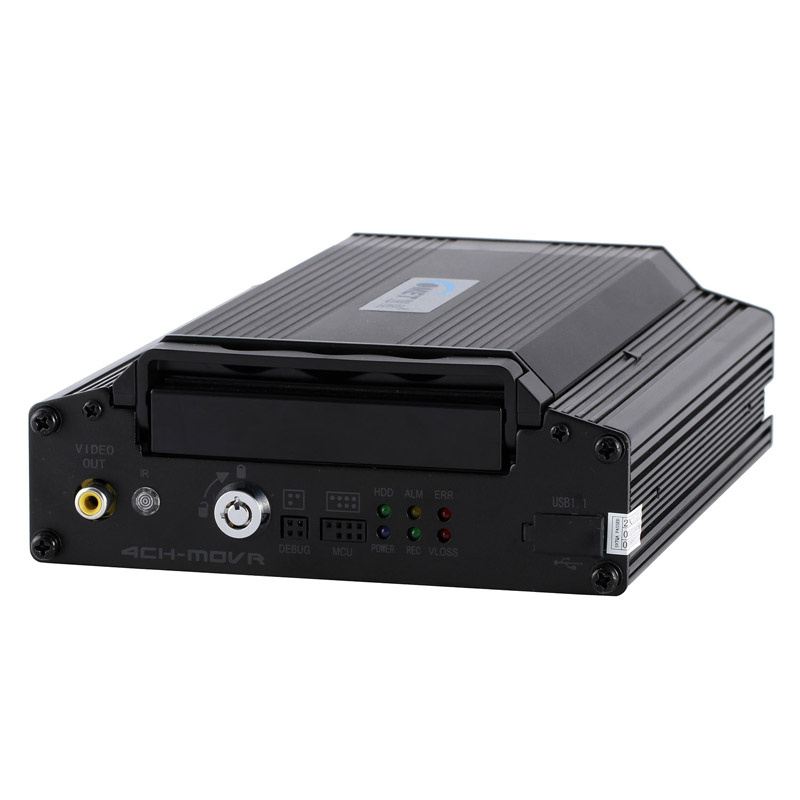

CCTV DVR mobile car DVR recorder vehicle surveillance system for traffic event recording
Mobile DVR
4G car dvr
SD card MDVR
3G MDVR
School bus DVR
GPS 3G Mobile DVR
Wifi car DVR
Features:
Management for 5000 vehicles.
Real-time video and audio monitoring.
Real-time vehicle status with complete information: Online number, speed, GPS tracking, temperature, brakes, backing up, turning and alarming, etc.
Remote control to gas-off/power to vehicles.
Video search, download.
Picture capture.
Intercom, broadcasting, text to speech
PTZ control.
History tracking.
Alarm linkage( Speed alarm, external emergency alarm, hard disk error alarm, video lost alarm, electronic map markers)
Electronic security fence
Google map/Mapinfo
Multiple access, permissions setting
Advantage:
Hard shockproof, damping mode (spring and patented oil bag technology)
Online video playback (without download to a local, direct online play)
Mobile client-side (see map, video, listening, speaking)
TTS and information issued under Intercom (voice broadcast message)
Remotely configure the device (provided that the device online and offline)
Alarm (when an alarm video, sound, maps locked vehicle alarm)
Track playback plus address resolution list (map playback position is to look at where the streets)
IO configuration (alarm and sensor access, to achieve multi-functional)
The offline queries (queries work equipment and vehicles)
Alarm Troubleshooting (real-time display alarm information in a client event column)
Velocity curve (easier to find the vehicle speed case)
Electronic fence (easier to find in and out of the specified range and course and speed of the device case)
Student attendance (custom software, school bus used)
Mileage statistics (whether the driver can understand speculation)
Switching maps (Google, Baidu, etc. )
Video Poll (different monitor screen turns display)
|
Operation System |
Linux |
|
Chip |
Hisilicon:3512 |
|
Compression |
H.264 |
|
Signal System |
PAL:25 fps, NTSC:30 fps |
|
language |
Chinese / English optional, OSD Menu |
|
Display Frame Rate |
1D1+3CH CIF |
|
D1/HD1/CIF 8 level image quality can be adjustable |
|
Camera Connector |
DIN JACK Connector |
|
Alarm Input/Output |
6 alarm input / 2 alarm Output, Max:12V |
|
Video Input/ Output |
4-CH complex Input / 2CH complex VGA video output, one in front broad and one in back |
|
Audio Input/Output |
4-CH Input /2CH Output, one in front broad and one in back |
|
Audio compression |
ADPCM |
|
Recording |
Manual, Schedule, Motion Detection, Watermark |
|
GPS Vehicle tracking, Speed detection, Synch time |
|
Event Sensor trigger, Speeding, Accelerometer, Temperature, Video Loss |
|
Playing Mode |
Support 1 channel or synchronous 4 channels By PC |
|
Searching Mode |
By Time/ By Date/ By Event |
|
Storage |
Support 1TB Hard disk max. and 1 SD card
SSD supported |
|
Built Model (Selectable) |
G-SENSOR |
|
GPS |
|
3G (HSPA/WCDMA/EVDO ) |
|
WIFI 802.11b/g |
|
Remote Control |
IR Remote Control |
|
Software Upgrade |
One USB 2.0 port on front panel to upgrade software and download video |
|
Power Input/Output |
8_36V Input, 12V Output, 500mA |
|
Consumption |
12W-30W |
|
Extended Port |
1 Port for RS232 & 2 port for RS485 |
Camera's remote
power supply |
Supply Remote Power for 4 channel cameras DC12V@2A |
|
Working Temperature |
-25°C~+85°C |
|
Vibration Resistance < 2 Grms |
|
Shock Resistance < 1200 Grms |
|
Vehicle key signal |
≤4V (OFF),≥5V(ON) |
|
N.W. |
2.8KG |
|
Dimension |
220mm×166mm×70mm |
|
Applications |
Buses, cars, coaches, cash carriers, industrial vehicles, taxi, investigation vehicles, military trucks, police vehicles, ambulances, Tourism buses, even yachts, aircraft and vessels. It can also be used in farm, construction site, vacation spot to monitor the around environment if nobody nearby and so on. |
