| Prod Model: |
HX-X2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Image Resolution: |
4CH D1 |
| 3G GPS Viewing: |
Support |
| Input Voltage: |
8-36V |
| Video System: |
PAL/NTSC |
| Certificate: |
CE,FCC,RoHS,SGS |
| Compression Format: |
H.264 |
| Interface: |
BNC\VGA\HDIM |
Product Description

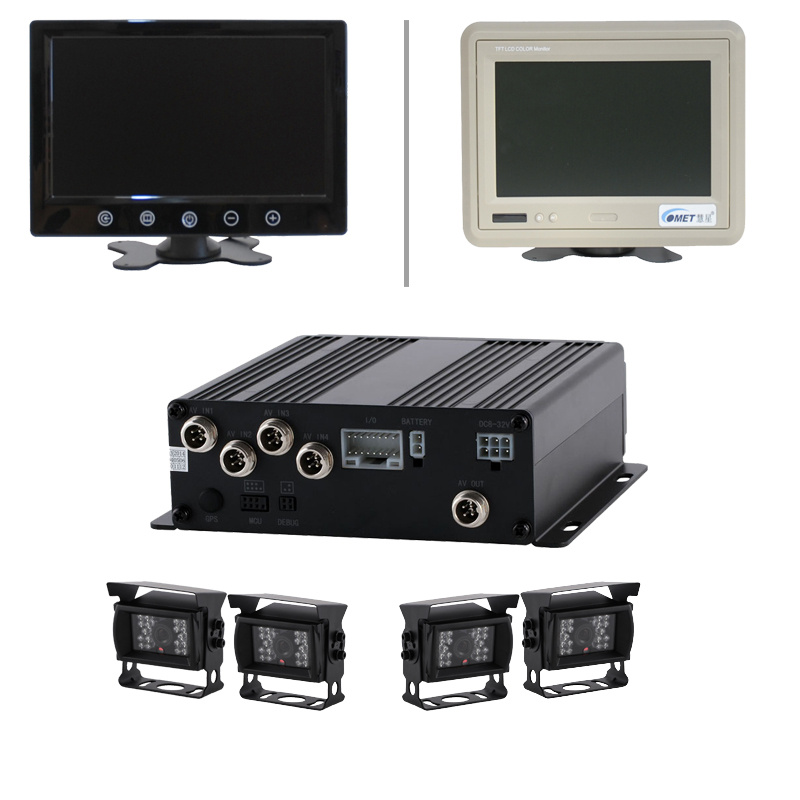

4CH H. 264 Realtime Recording Mobile Mini Hard Disk Car Video DVR System with GPS Function
H. 264 compression format with High resolution
With specific shake-proof Harddsik box to protect HDD from damaging
Support single, four pictures/multiple display
D1 / HD1 / CIF selectable
25fps per CH, frame rate is adjustable
6 alarm input, 1 alarm output
2.5"Hard disk interface 1 SATA interface(use USB2.0 interface to convert)
With RS232/RS485 interface( for digital sensor)
GPS tracking(speed, altitude, longitude and latitude, time&date, heading, turning etc)
Feature:
4 Channel Mobile DVR Support Dual SD Card up to 32GB
Video resolution: D1/HD1/CIF/QCIF can selectable-each channel, Real-Time display
H. 264 compression format; With 10M/100M RJ45 port
4 channels Video/Audio recording and playback simultaneously
4 channels alarm input and 1 channel alarm output
Built-in GPS; GPS+3G; GPS+3G+WiFi function can selectable
| Item | Device parameters | Performance |
| System | Operating language | Chinese/English |
| Operating interface | Graphical user interface menu (OSD menu) |
| Password Security | User password, administrator password 2 Management
|
| Video | Video input | 4-way composite video input |
| Video output | Single composite video output |
| Video display | Single-screen, four screen display |
| Video standard | PAL standard, NTSC standard |
| Audio | Audio input | 4-way audio input |
| Audio output | Single audio output |
| Recording mode | Voice and video simultaneously recording |
| Audio compression | ADPCM |
Image Processing
And storage | Image compression | H. 264 |
| Image format | CIF/HD1/D1 optional |
| Video output standard | ISO14496-10 |
| Audio streaming standard | ADPCM |
| Video Rate | CIF: 150Kbps ~ 0.8Mbps, 6 selectable levels of quality, a quality the highest, the lowest 8
HD1: 300Kbps ~ 1.0Mbps, 6 selectable levels of quality, a quality the highest, the lowest 8
D1: 600Kbps ~ 1.5Mbps, 6 selectable levels of quality, a quality the highest, the lowest 8 |
| Audio Rate | 8KB/s |
| Data memory | Support a 2.5-inch SATA hard disk, hard disk recommended for the Hitachi brand |
| Alarm | Alarm input | 6 – way Alarm input |
| Alarm output | 2 – way Alarm output |
| Software packages | PC Review & Analysis | Playback video files at the same time vehicle information on file for analysis |
| Software upgrade | This product supports USB interface and hard drive upgrade |
| Other | Power input | DC: +8V ~ +32V |
| Power output | +12V@2A; +5V@2A |
| Working temperature | 5_ 55 |
| Power dissipation | 10W (Without peripherals) |
