| Prod Model: |
713CP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Minimum Illumination: |
1lux |
| Electronic Shutter: |
1/50~1/10000 Sec |
| Lens: |
3.6mm |
| Power Supply: |
DC12V |
| Car Side View Camera: |
View Camera |
| Waterproof Rate: |
IP68 |
| Image Sensor: |
Sharp 1/4'' Color CCD |
| Sensor: |
CCD |
| Resolution: |
420tvl |
| HD Car Camera: |
Driver Had Car Camera |
| Interface: |
RCA |
| Definition: |
420TVL |
| Chip: |
CCD |
| Waterproof Grade: |
IP68 |

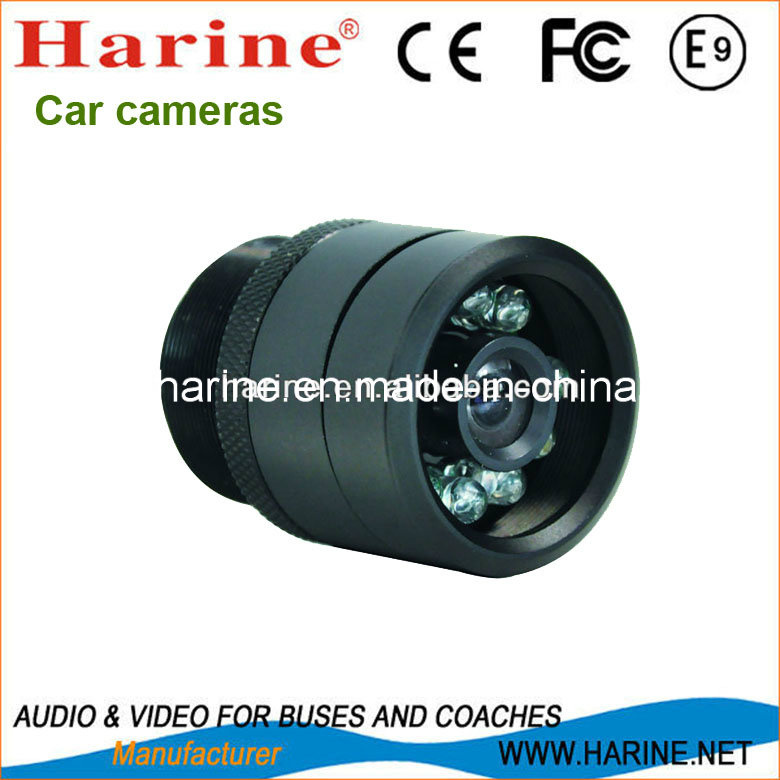

Product Description
Quick Details
| Sensor | CMOS |
| Image Sensor | Sharp 1/3'' Color CMOS |
| Effective Pixels | 512(H)X582(V) |
| Resolution | 420TVL |
| Electronic Shutter: | 1/50~1/10000sec |
| HD car camera | driver had car camera |
| car side view camera | view camera |
Specification:
Image Sensor: 1/3"Color CMOS
Effective Pixels:512(H)×582(V)
Resolution:420 TVL
Vertical Sync.Frequency:50HZ
Minimum Illumination:1Lux
Lens:3.6 mm
Electronic Shutter:1/50~1/10000 sec
Night Vision Distance More than 15m
Adjustment Rotation : 13°
Waterproof Rate: IP68
Environment Requirements : In-vehicle or out-vehicle
Operating Temperature : -20~60°C
Power Supply: DC12V
Current Consumption: 150mA
Product Dimension: RxH:56x8mm
Gross Weight 0.3kg
![]()
