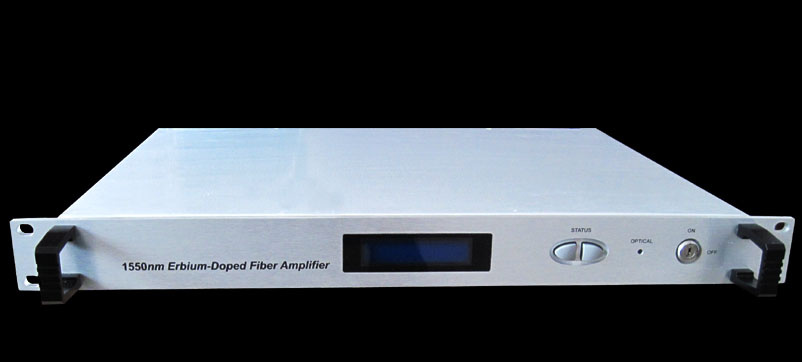

Product Description
Features
Adopting high-quality Pump Laser diode and Erbium-Doped optical fiber
Advanced automatic power control (APC) and automatic temperature
Control (ATC) circuit to ensure the performance
Low noise figure and high gain; Input & output optical isolator
Output power: 13-23dBm; 1U 19 standard case with VFD in front panel
RS232/RJ45 communication interface optional; High efficiency switch
Power supply
RS232/485 interface optional for remote monitoring and control.
Specification
Optical Parameters
Optical Wavelength nm 1540-1560 Optical Output Power dBm 13-23
Output Stability dB +-0.5 Optical Input Power dBm -4~+7
Noise figure dB <4.5 (0dBm input) Polarization sensitivity dB <0.2
Optical return losses dB >40Connector FC/APC or SC/APC
CTB dB ≥80 CSO dB ≥75 Electrical/Environmental/Mechanical
Power Supply Vac 160~265 Operating Temperature -10~+50
Dimensions mm 485*350*45
Nominal optical output
| (dBm)
| ≥ 13
| ≥ 14
| ≥ 15
| ≥ 16
| ≥ 17
| ≥ 18
| ≥ 19
| ≥ 20
| ≥ 21
| ≥ 22
| ≥ 23
| ≥ 24
| ≥ 25
| ≥ 26
| ≥ 27
|
(mW)
| ≥ 20
| ≥ 25
| ≥ 32
| ≥ 40
| ≥ 50
| ≥ 63
| ≥ 80
| ≥ 100
| ≥ 125
| ≥ 160
| ≥ 200
| ≥ 250
| ≥ 320
| ≥ 400
| ≥ 500
|
Optical
input
| Range (dBm )
| -12 ~ +10
|
@ Nominal output
(dBm)
| 2
| 3
|
Wavelength (nm)
| 1530 --1560
|
Output Stability (dB)
| <± 0.2
|
Noise Figure
| 0dBm Input (dB)
| ≤ 4.5
| ≤ 5.0
| ≤ 5.3
|
+6dBm Input(dB)
| ≤ 5.5
| ≤ 6.0
| ≤ 6.5
|
Polarization sensitivity (dB)
| <0.2
|
Optical return losses (dB)
| >40
|
Connector
| FC/APC .SC/APC
|
Interface
| RS232 .RS485
|
Power Consumption (W)
| <40
|
Operating Voltage (V)
| 220V (110 --240V) |
Operating temperature
| 0 --65
|
Storage temperature
| -40 -- +85 |
Dimensions (mm)
| 483 × 385 × 44 (19 "× 15"× 1.75")
|
