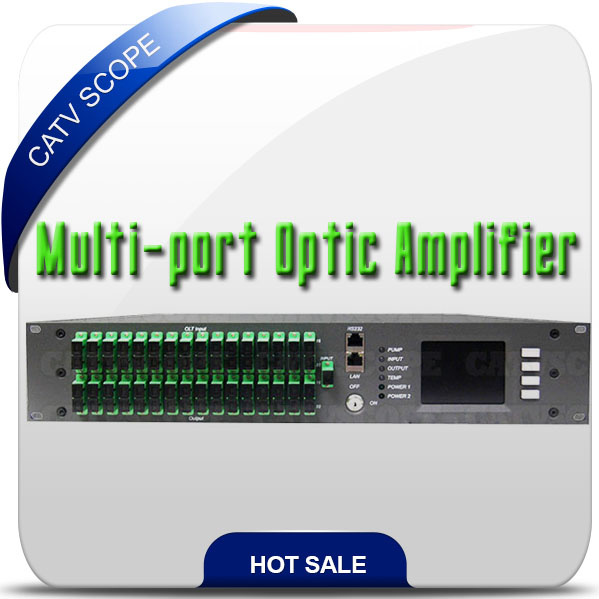

CATV 1550nm Optic Amplifier EDFA

CATV 1550nm Optic Amplifier EDFA
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: T/T
Prod Model: mEA55
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Multi Port EDFA: Optic Amplifier
LED Monitor: Support
Total Power: 13~40db
Working Range: 1545~1555nm
Output: 8~128
Built In Wdm: Option
Type: Fiber Amplifier
Wiring Devices: MDF
Certification: RoHS
Condition: New

Product Description


About mYA-55xx
The Multiport Ultra-High Power Optic Amplifier mYA series utilize a double cladding Erbium-Yterbium-Doped fiber's feature to obtain the ultra-high Gain, Max. High power is up to +40dBm (Total Power) and up to 128-Output ports (LC/APC), This series are able to conveniently be deployed in Xpon network to deliver the Video (Analog, QAM) business to achieve the tri-play network, because inside of this Housing equipped WDM multiplexers for each output Ports, they redirect the 1310/1490nm wavelengths, which carry the Data package from OLT, and then add the 1550nm wavelength together output through each output ports

Features
+13 to 40dB (Total Power)Option
Working range: 1545 to 1555nm
8 to 128 outputs
Built-in WDM for Xpon (Various WDM Option)

Specification
Support WDM,single Fiber two way transmission
Interface type:SC/UPC
Maximum splitting ratio:1:64
Speed:1.25Gbps symmetry at the upper and lower
Sent wavelength:1310nm
Received wavelength:1490nm
Optical output power:-1~+4dBm
Receiving sensitivity:<-25dBm
The farthest distance between OLT and ONU:20KM
Layer 2 switch:
Support IEEE 802.1q VLAN
Support speed rate inhibition of broadcast and unicast packet at ONU
IEEE 802.3x flow control
Support IGMP Snooping:support 16 multicast add at each LAN port
Security strategy:
MAC add is the auto registration mark at ONU end
Support plug and play,auto register at ONU end
Support access authentication based on serial number
Management maintenance:
Support the remote management from OLT to ONU,support SNTP and log
Upgrage software remotely
Support to save configuration parameters when power down
