| Prod Model: |
FCNP58U005 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
GS |
| Condition: |
New |
| Support Network: |
Ethernet |
| Usage: |
Laptop |
| Type: |
Wired |
| Information Content: |
Data |
Product Description

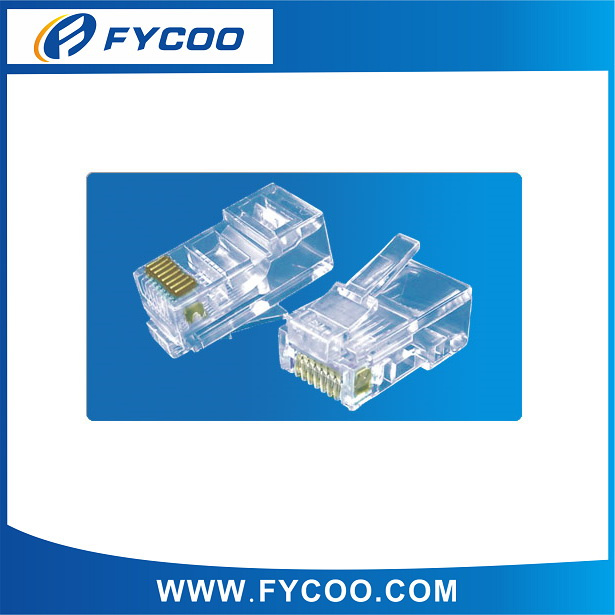

Cat.5e UTP 8P8C RJ45 Modular Plug 1PIECE
FEATURE:
Cat.5e FTP 8P8C RJ45 Modular Plug 1PIECE
1. Product Name: RJ45 connector for Cat5e FTP
2. Suitable for cable: round, stranded cable 26AWG;
3. Contact blade: Copper Alloy with gold plating 50u, the standard gold thickness 03U, 06u, 15u, 30u, 50u could be optional.
4. Blade Type: 2 prongs or 3 prongs optional.
4.1 E blade: 2 prongs, suitable stranded wire.
4.2 Y/Z blade: 3 prongs, Patent Blade, suitable for both solid and stranded wire.
5. Color: Transparent, Transparent color blue, red etc., or not transparent blue, red etc., 3 options
6. Mechanical: Fully comply with FCC standard.
SPECIFICATION:
Electrical1. Insulation Resistance: 500M Ohm Min
2. Dielectric Strength: 1000V AC(50-60Hz) 0.5mA 1min
3 .Contact Resistance: 20m ohm Max
Mechanical1. Retention Strength: Between plug and jack 7.79kg Min
2 .Mating and un-mating force: 2.27kg Max
3 .Durability: 750 mating cycles Min.
Material1 . Housing: Polycarbonate (PC) UL 94V-0 or UL 94V-2
2 .Contacts: Phosphor bronze, Nickel plating followed with gold plating: 3u, 6u, 15u, 30u, or 50u micro-inch selectable
3. Shield Copper alloy with nickel plated
Ratings1.Current Rating: 1.5 AMP
2. Voltage Rating: 1.25 VAC
3. Operation Temperature :-40°C~80°C
4. Preservation Range: --20°C~50°C RH<80%
PACKING WAY:
SPEC.Q'TY PCS/CTNN.W. KGSG.W. KGSDimension(cm)
6P2C20,00015.9617.5049.6*36.2*26.5
6P4C20,00015.8617.4049.6*36.2*26.5
6P6C20,00016.1318.0349.6*36.2*26.5
4P4C25,00016.5918.2349.6*36.2*26.5
8P8C10,00015.2617.0049.6*36.2*26.5
10P10C10,00018.0019.0049.6*36.2*26.5
8P Shielded10,00025.4027.5051.6*36.2*32.0
Cat.6 UTP10,00013.7015.8051.6*36.2*32.0
Cat.6 Shielded10,00023.7225.8251.6*36.2*32.0
Established in 2007 Shenzhen city, and open office in guangzhou city in 2008, Fycoo Electronics Technology Limited is a leading manufacturer integrating R&D, production and distribution,
Fycoo supplying the whole whole market with high-quality products, meet or exceed industry standards and customer requirements.
To enhance technology progress and ODM and OEM services, we've established relationship with many scientific research academy.
Fycoo company's production base loacted in Guang zhou city, Huizhou city, Dong guan city industry zone, ISO9001 certified. With complete quality system,
We have advance functional testers and burn-in test facility to ensure every piece product meeting your quality requirement.
Through our efforts and our sales representation companies, we have developed a strong customer base, comprised of more than 500 specialized distributors, utility companies, original equipment manufacturers, industrial companies, and value-added resellers in the whole world, expecially north America, EU and south America
