| Prod Model: |
FCNP58F006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
GS |
| Condition: |
New |
| Support Network: |
Ethernet |
| Usage: |
Laptop |
| Type: |
Wired |
| Information Content: |
Data |
Product Description

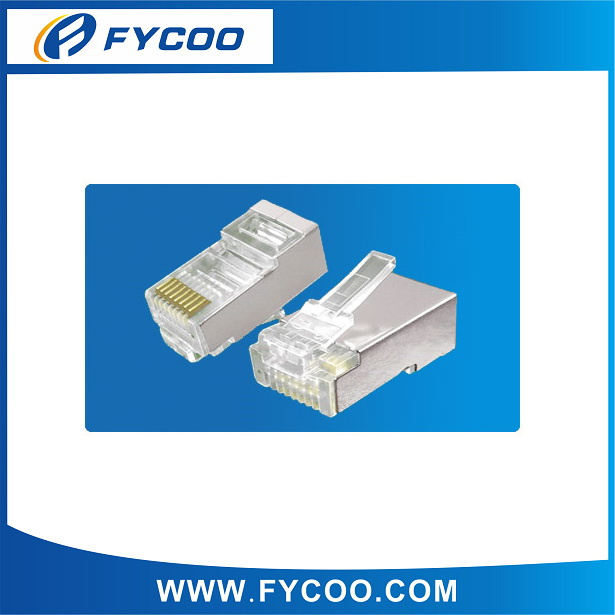

Cat.5e FTP 8P8C RJ45 Modular Plug
FEATURE:
Cat.5e FTP 8P8C RJ45 Modular Plug
Golden: Fu, 3u, 15u, 30u, 50u
Contact Blade: two prong
SPECIFICATION:
Electrical1. Insulation Resistance: 500M Ohm Min
2. Dielectric Strength: 1000V AC(50-60Hz) 0.5mA 1min
3 .Contact Resistance: 20m ohm Max
Mechanical1. Retention Strength: Between plug and jack 7.79kg Min
2 .Mating and un-mating force: 2.27kg Max
3 .Durability: 750 mating cycles Min.
Material1 . Housing: Polycarbonate (PC) UL 94V-0 or UL 94V-2
2 .Contacts: Phosphor bronze, Nickel plating followed with gold plating: 3u, 6u, 15u, 30u, or 50u micro-inch selectable
3. Shield Copper alloy with nickel plated
Ratings1.Current Rating: 1.5 AMP
2. Voltage Rating: 1.25 VAC
3. Operation Temperature :-40°C~80°C
4. Preservation Range: --20°C~50°C RH<80%
PACKING WAY:
SPEC.Q'TY PCS/CTNN.W. KGSG.W. KGSDimension(cm)
6P2C20,00015.9617.5049.6*36.2*26.5
6P4C20,00015.8617.4049.6*36.2*26.5
6P6C20,00016.1318.0349.6*36.2*26.5
4P4C25,00016.5918.2349.6*36.2*26.5
8P8C10,00015.2617.0049.6*36.2*26.5
10P10C10,00018.0019.0049.6*36.2*26.5
8P Shielded10,00025.4027.5051.6*36.2*32.0
Cat.6 UTP10,00013.7015.8051.6*36.2*32.0
Cat.6 Shielded10,00023.7225.8251.6*36.2*32.0
