| Prod Model: |
HLLA~10T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
13.9-128.8kw |
| Humidifying Capacity: |
8-32 Kg/H |
| External Static Pressure: |
100-400 PA |
| Compressor: |
Copeland |
| Controller: |
Punp |
| Noise: |
60-76db |
| Size: |
960*350*1260 Mm |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Floor Standing |
Product Description

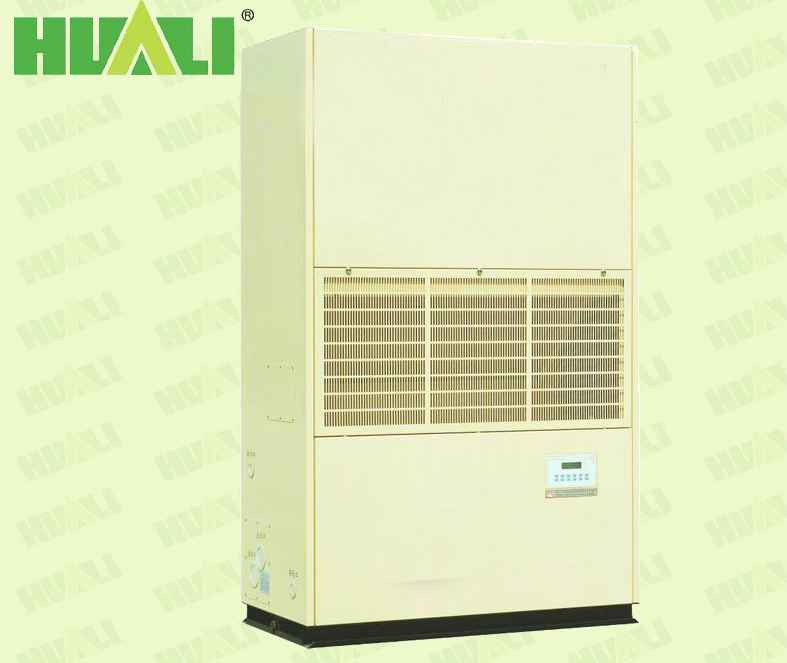

Air Cooled Thermostatic and Humidistatic air conditioner unit;
1) 15.3 kW to 142.4 kW nominal cooling capacity. From HLLW water cooled series to HLLA air cooled series!
2) Indoor unit Top exhaust or side exhaust.
3) Modular construction & Low Noise.
4) Use world leading technology, adopt intelligent control system, 5 inch super LCD, touch screen, Easy switching in English and otherlanguages, very simple operation interface, eliminated the past code which be inputed complex and easy to cause error. In addition, internal environment of computer room at the monitor, ensure room temperature and humidity safety!
5) Adopt famous brand copeland compressors.
6) Option of Air & Chilled water.
7) Shell and tube condenser, and with ripple aluminum fins around copper pipe evaporator
8) Optional refrigerant R22, R407C.
|
Air Cooled Thermostatic and Humidistat Air Conditioner |
|
Model HLLA ~ |
5T |
8T |
10T |
15T |
20T |
25T |
|
5TH |
8TH |
10TH |
15TH |
20TH |
25TH |
|
Unit Property |
Cooling Capacity |
KW |
13.9 |
22.5 |
27.7 |
41.6 |
56.2 |
64.4 |
Electrical Heating capacity |
KW |
8 |
9 |
12 |
18 |
24 |
30 |
Humidifying Capacity |
kg/h |
8 |
8 |
8 |
15 |
15 |
23 |
|
Rated Air Flow |
CMH |
2800 |
4500 |
5600 |
8600 |
11700 |
14000 |
External Static Pressure |
Pa |
100 |
150 |
150 |
200 |
250 |
300 |
|
Power Supply |
|
3PH 380V 50Hz |
Cooling Max. Input Power |
KW |
15.2 |
20.7 |
27.1 |
40.5 |
53.4 |
63.6 |
Cooling Max. Current |
A |
28 |
36.1 |
50.2 |
74.7 |
93.7 |
110 |
|
Noise |
dB(A) |
≤ 60 |
≤ 62 |
≤ 62 |
≤ 65 |
≤ 68 |
≤ 70 |
|
Humiture Range |
18-28 deg ±1 deg\ 50-70%±10% |
|
Connecting Pipe ( Liquid) |
Ø12.7 |
Ø12.7 |
Ø12.7 |
Ø12.7 |
Ø16 |
Ø16 |
|
Connecting Pipe (Air) |
Ø19 |
Ø19 |
Ø19 |
Ø19 |
Ø25 |
Ø28 |
|
Indoor Unit |
Evaporator |
Ripple Aluminum Fins around Copper Pipe |
|
Throttle Device |
Exterior Thermostatic Expansion Valve |
Centrifugal Fan |
Type |
The Belt Transmission Centrifugal |
|
Power |
0.45 |
1.1 |
1.5 |
2.2 |
3 |
4 |
|
Air Filter |
Primary Filter+Medium Filter, High Filter |
Electrode Humidifier |
Power (KW) |
6.1 |
6.1 |
6.1 |
11.4 |
11.4 |
17.5 |
Water Inlet (in) |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
|
Dimension |
W (mm) |
800 |
960 |
1200 |
1700 |
1700 |
1700 |
|
D (mm) |
550 |
520 |
600 |
600 |
750 |
750 |
|
H (mm) |
1770 |
1730 |
1730 |
1780 |
1830 |
1830 |
|
N.W. |
kg |
145 |
200 |
270 |
340 |
460 |
470 |
Outdoor Unit |
Model |
KA-5U |
KA-8U |
KA-5U×2 |
KA-5U×3 |
KA-10U×2 |
KA-12.5U×2 |
Compressor |
Type |
Hermetic Scroll Type |
Power×Qty |
5×1 |
8×1 |
5×2 |
5×3 |
10×2 |
12.5×2 |
Power (KW) |
4.3 |
6.5 |
8.6 |
12.9 |
16.2 |
18.3 |
|
Air Volume(CMH) |
6200 |
10400 |
6200×2 |
6200×3 |
15000×2 |
15000×2 |
|
Dimension |
W (mm) |
960 |
930 |
960×2 |
960×3 |
1000×2 |
1000×2 |
|
D (mm) |
350 |
790 |
350×2 |
350×3 |
885×2 |
885×2 |
|
H (mm) |
1260 |
930 |
1260×2 |
1260×3 |
930×2 |
1088×2 |
|
N.W. |
kg |
120 |
180 |
120×2 |
120×3 |
210×2 |
230×2 |
|
Safety Protection |
High/low pressure switch protection, Compressor overload Protection over current protection,
Phase sequence protection,Start delay protection, Oil heater, Electric wire overheating protection,
Air Differential Pressure Protection, Humidification Over Current Protection,Exterior Interlock Protection, The fusible plugs, Fuse, etc. |
