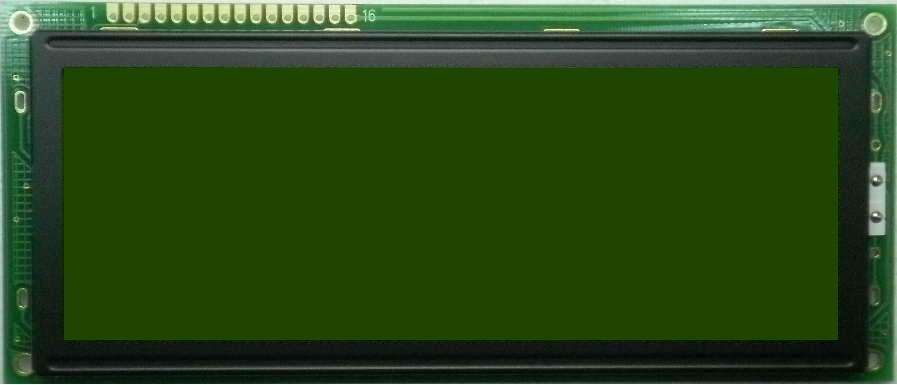

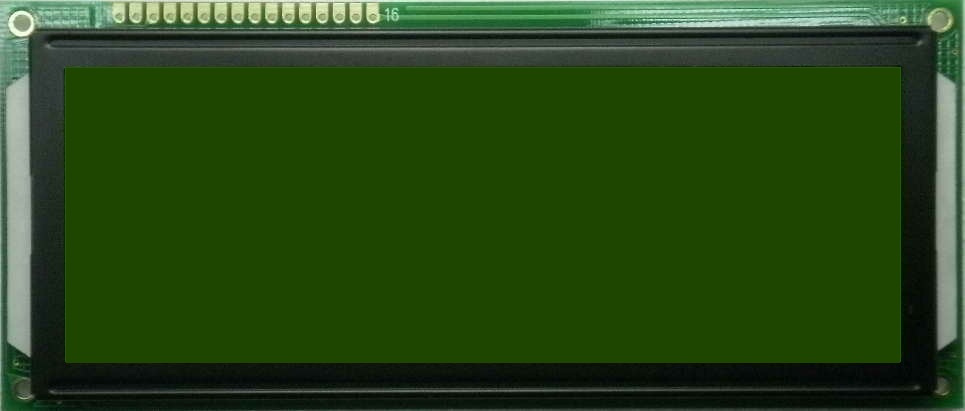

C2004 LCD Moudle 20*4 DOT Stn COB Display

C2004 LCD Moudle 20*4 DOT Stn COB Display
Price: US $ 1.5-1.6/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Prod Model: C2004
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Character
Display Technology: STN
Usage: Small-sized LCM
Viewing Angle: TN+FILM

Product Description

Display format:  20 x 4

Module size:    (W)146.0 x (H) 62.5mm


Viewing area:   (W)123.5 x (H)43.0mm

Dot size:       (W) 0.92x (H) 1.1mm

Character size: (W) 4.84x (H)9.22mm

Driver IC: SPLC780D or equivalent

Drive Voltage: +5.0 V or +3.0V

lcd display:  STN (Y-G)/STN BLUE/FSTN


Customer's designs are welcomed Extended temperature and other requirements are also available

Item Symbol Condition Standard Value Unit
Min Type Max
Supply Voltage for logic Vdd-GND - 4.5 5.0 5.5 V
Supply Current for logic Idd Vdd=5V - 1.0 - mA
Driving Current for LCD Iee - 0.6 - mA
Driving Voltage for LCD Vdd-V5 - 4.5 - V
Input Voltage H level Vih 2.2 - Vdd V
Input Voltage L level Vil -0.3 - 0.6 V
Output Voltage H Voh Ioh=-0.205mA 2.4 - - V
Output Voltage L Vol Io1=1.2mA - - 0.4 V
BETTER DISPLAY GROUP LIMITED is a High-tech enterprise which established in 2010 and specializing in the production and sales of LCD and LCM.

We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.

Our company has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our company and negotiate trade.

We sincerely welcome new and old customers at home and abroad. Let us work together to develop the international market.

Welcome to order, we will serve you.
