Elecal Electric Appliance Co., Ltd. >> Brushless DC Fan TFS6015 Series

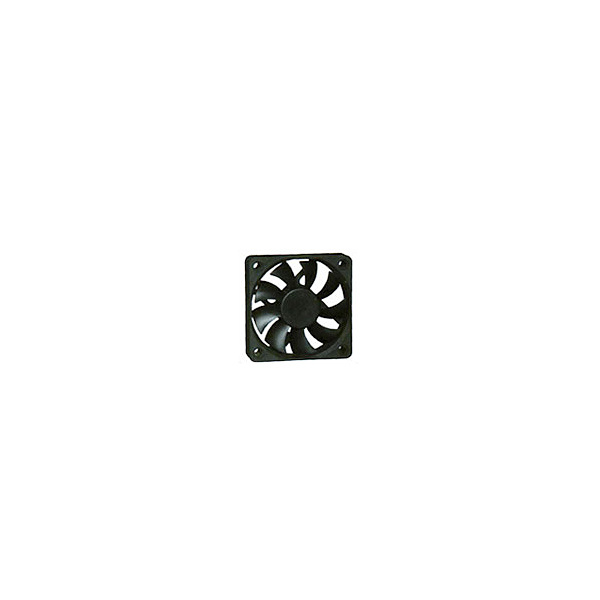

Brushless DC Fan TFS6015 Series

Brushless DC Fan TFS6015 Series
Price: US $ 10/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation: Table
Type: Air Cooling Fan
Speed: 3 Speed
Power Supply: Electric
Power: <100W
Material: Plastic
Application: Industrial
Timer: Without Timer
Remote Control: Without Remote Control

Product Description


Insulation Resistance: more than 10mΩ between housing and plus end of lead wire redcolor at 500V DC.

Dielectric strength:no damage can be found at 600VAC.2 secretary,between housing and plus end of lead wire.

Material:
Frame:UL94V-0 70% P.B.T+30% F.R.P.
1mpeller:UL94-0 70% P.B.T. +30% F.R.P
Bearing:preclsion ball bearing system precision.Qilimpregnated sleeve bearing system.
Operating temperature: -10to+70ºC.

Storage temperature: -40 to+70ºC

Opreating voltage: rated voltage ± 15%.
Name System OF BRUSHLESS DC FAN:

Technical Parameter:
Dimension
(mm)
Model
Voltage
(VAC)
Current
(AMP)
Power
(Watts)
Speed
(RPM)
Air Flow
(CFM)
Pressure
(mmH2O)
Noise
(dBA)
Weight
(Gram)
60X60X15
TFS6015L
12V
0.12
1.44
3500
15.86/0.45
2.33
25.60
36
TFS6015M
12V
0.13
1.56
4000
17.49/0.50
3.02
27.62
36
TFS6015H
12V
0.20
2.40
4500
18.68/0.53
3.56
30.20
36
TFS6015L
24V
0.08
1.92
3500
15.86/0.45
2.33
25.60
36
TFS6015M
24V
0.09
2.16

4000
17.49/0.50
3.02
27.62
36
TFS6015H
24V
0.10
2.40
4500
18.680.53
3.56
30.20
36
